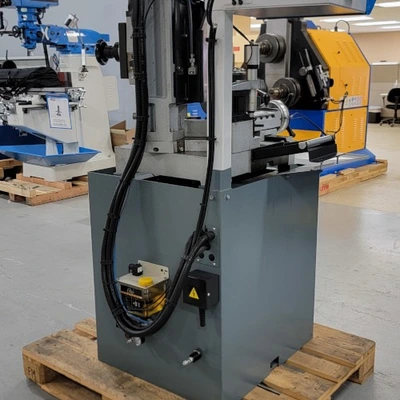

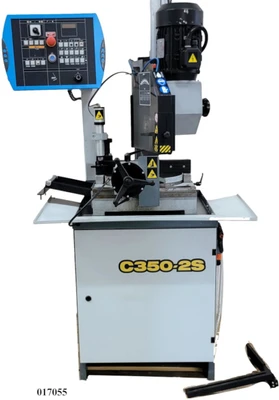

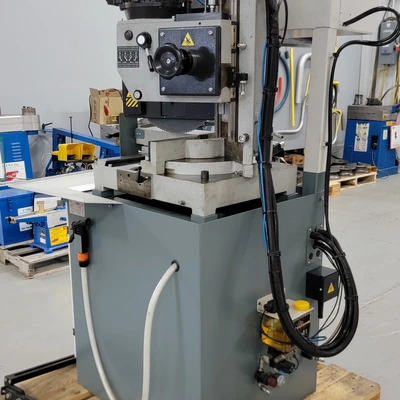

USED 2022 HYDMECH C350-2S

HYDMECH (USED) MODEL C350-2S SEMI-AUTOMATIC
COLUMN COLD SAW

CAPACITY - 90 DEGREES - HOLLOW
- 4.5" ROUND, 3.75" SQUARE, 7" X 3.75" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - HOLLOW
- 4.25" ROUND, 3.75" SQUARE, 4.75" X 3.75" RECTANG
CAPACITY - 60 DEGREES - RIGHT - HOLLOW
- 3.5" ROUND, 3" SQUARE, 3.5" X 3.75" RECTANGLE

CAPACITY - 90 DEGREES - SOLID
- 3.75" ROUND, 3.5" SQUARE, 3.5" X 3.5" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - SOLID
- 3" ROUND, 2.5" SQUARE, 2.5" X 3.5" RECTANGLE
CAPACITY - 60 DEGREES - RIGHT - SOLID
- 2.5" ROUND, 1.75" SQUARE, 1.75" X 3.5" RECTANGLE

14" MAXIMUM - BLADE SIZE
12" MINIMUM - BLADE SIZE
3 HP BLADE DRIVE
480 VOLTS
15/30/45/90 RPM BLADE SPEEDS

STANDARD MACHINE FEATURES
- SEMI-AUTOMATIC OPERATION
- HEAVY-DUTY SAW HEAD MOVES ON ADJUSTABLE
DUAL PRECISION LINEAR RAILS
- MITERS 45 DEGREES LEFT RIGHT, 60 DEG LEFT
- 4 BLADE SPEEDS
- ANTI-BURR CLAMP WITH DOUBLE LOCKING SYSTEM
- VERTICAL PNEUMATIC VISE
- HORIZONTAL PNEUMATIC VISE SLIDES ON DOVETAIL
- ENCLOSED STEEL BASE WITH CHIP DRAWER
- COOLANT TANK IN BASE
- REPLACEABLE BLADE BRUSH
- CONTROL PANEL WITH MAIN DISCONNECT
- PROGRAMMABLE SAWING STROKE
- SAW HEAD FEED RATE CONTROL
- LED DISPLAY FOR MACHINE DIAGNOSTICS
- ADJUSTABLE MATERIAL STOP WITH RULER
- FLOOD COOLANT WITH ELECTRICAL COOLANT PUMP
- WASH DOWN HOSE
- 1 BLADE INCLUDED (350 X 2.5 X 32 Z=180)

OPTION INCLUDED
- MIST LUBRICATION SYSTEM
Power: 480 (3-Phase)
