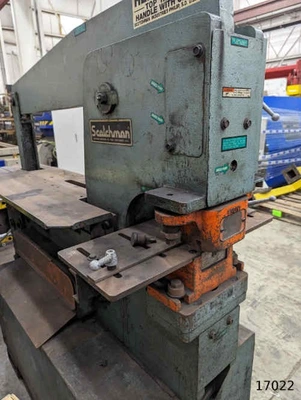

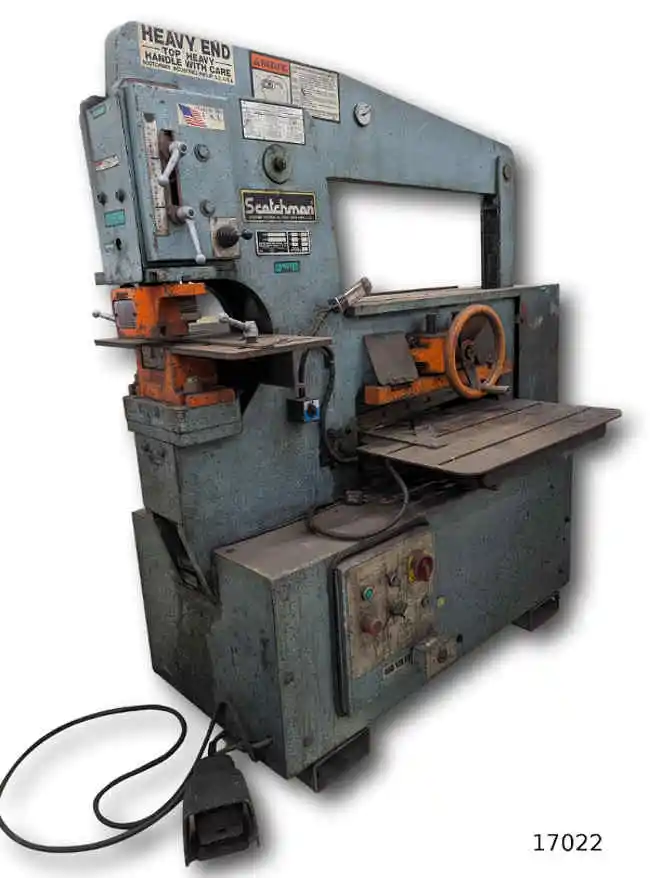

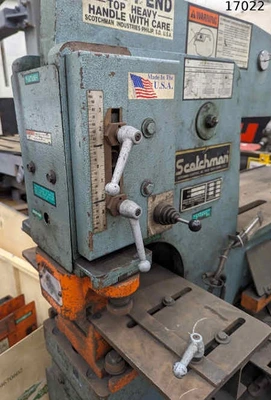

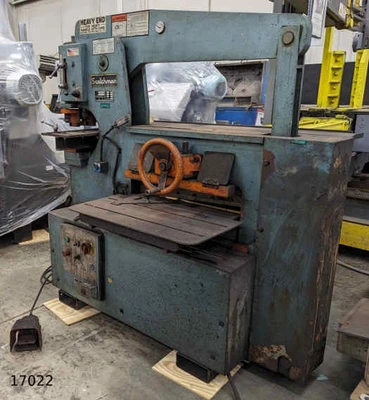

SCOTCHMAN (USED) IRONWORKER
MODEL- 6509-24M
SPECIFICATIONS
- 5 HP MOTOR
- 460V
- 3 PHASE
- 9" THROAT DEPTH
- 24" LENGTH FLAT BAR SHEAR
- 40 TON BRAKE 12"
- 30 TON BRAKE 24"
- 58 SPM IN LIGHT MATERIAL
- 26 SPM IN HEAVY MATERIAL
- 60-3/4" LENGTH DIMENSION
- 30" WIDTH DIMENSION
- 64- 1/2" HEIGHT DIMENSION
- 2,984 LBS SHIPPING WEIGHT (MAY VARY)
- 65 TON PUNCHING CAPACITY
FEATURES
- SINGLE OPERATOR - 4 STATIONS
- KEYED PUNCH RAM FOR SAFETY
- PUNCH GAUGING TABLE W/ FENCE/SCALE
- JOG CONTROL
- ADJUSTABLE ELECTRIC STROKE CONTROL W/ SCALE
- ELECTRIC REMOTE FOOT PEDAL
- FLAT BAR SHEAR W/ 4-WAY REVERSIBLE BLADE
- SHEAR TABLE W/ MITER FENCE
- ANGLE SHEAR
- TOOL TABLE WORK AREA
- SLUG RECEPTACLE
- TWO-STAGE HYDRAULIC PUMP
- FORKLIFT ACCOMMODATIONS
- MADE IN USA
Power: 460 (3-Phase)
