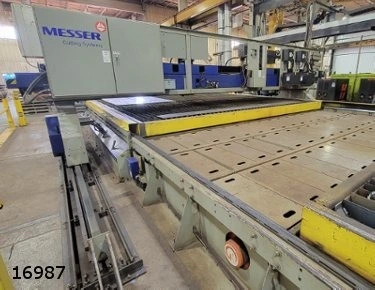

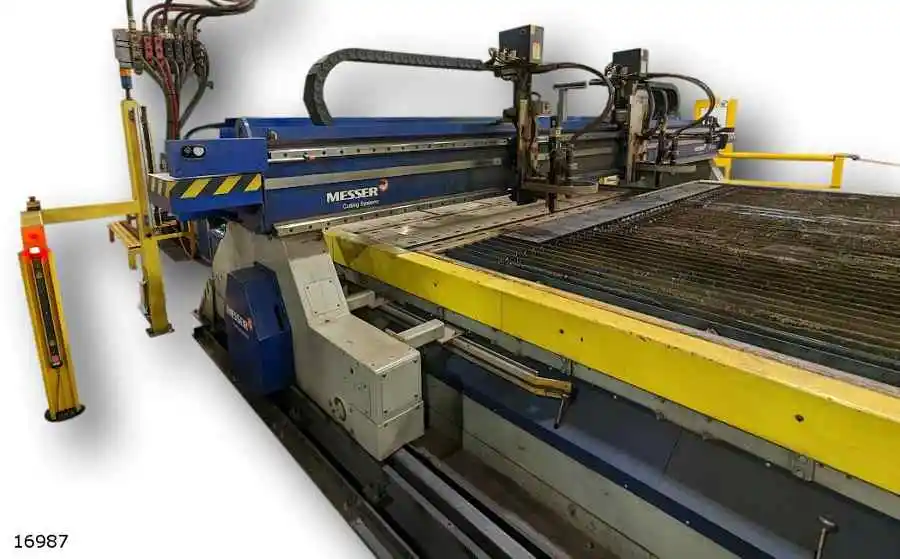

USED 2019 MESSER MPC2018

MESSER (USED) MODEL MPC2018 (MULTI PROCESS CENTER)
PLASMA CUTTING MACHINE

HIGH SPEED MACHINE FEATURES A PC BASED CNC CONTROL
LOW PROFILE, DUAL BEAM CONSTRUCTION THAT ISOLATES
THE PROCESS BEAM FROM THE AUXILIARY SUPPORT BEAM.
THIS TYPE OF CONSTRUCTION GIVES SUPERIOR CUT
QUALITY IN A LARGE MACHINE FORMAT.
MACHINE IS PROPELLED BY BACKLASH-FREE RACK AND
PINION DRIVES IN BOTH AXES.
LARGE LINEAR Y-AXIS WAYS ARE PRECISION MACHINED TO
PROVIDE SMOOTH MOTION.
FLOOR-MOUNTED, 115# CRANE RAIL PROVIDES A SOLID
FOUNDATION.
X-AXIS IS DRIVEN BY TWO 6 HP AC SERVO MOTORS
DRIVEN THROUGH LOW BACKLASH, PLANETARY, OIL-FILLED
GEAR REDUCERS.
ALL AXES CAN BE BACKLASH COMPENSATED TO PROVIDE
MACHINE MOTION ACCURACY OF +/- .005 REPEATABILITY
TO WITHIN .0025 IN ANY 72" MOVE.
TRAVEL SPEEDS ARE UP TO 1400" PER MINUTE (35M/MIN)

22' ACTUAL TRACK LENGTH
CUTTING AREA
- X-AXIS - CAN CUT 13'-6" LONG
- Y-AXIS - BOTH TORCHES CAN CUT 15' 6"

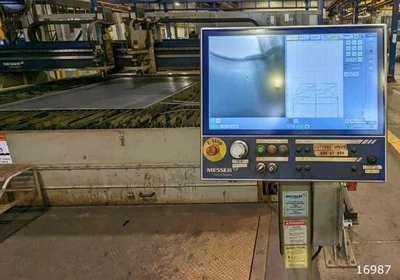

MESSER GLOBAL CONTROL
DIGITAL VIDEO CAMERA
- AUTOMATIC PLATE ALIGNMENT FEATURE

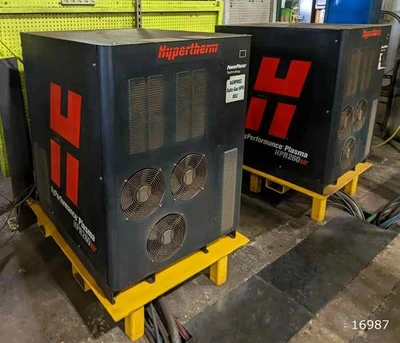

(2) HYPERTHERM HPR260XD HYPERFORMANCE PLASMA SYS.
- AUTOMATIC GAS CONSOLE
(2) PL-1 PLASMA TORCH HEIGHT CONTROLS
(2) SURESTOP COLLISION SENSORS
PLASMA STATION OUTLET EQUIPMENT
PLASMA AIR BOOSTER PACKAGE

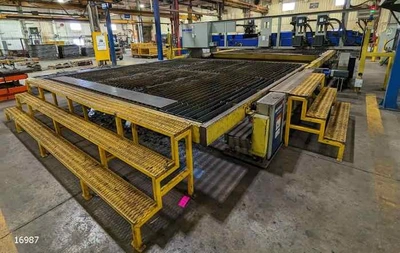

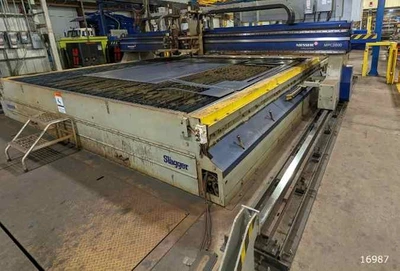

SLAGGER SLAG AND SMOKE REMOVAL CUTTING TABLE
- WIRELESS REMOTE CONTROL
SHUTTLE TABLE
- PLATE EXCHANGE APPROX. 1 MINUTE FOR 15' PALLET
- (2) REMOVABLE SLAG BUCKETS
