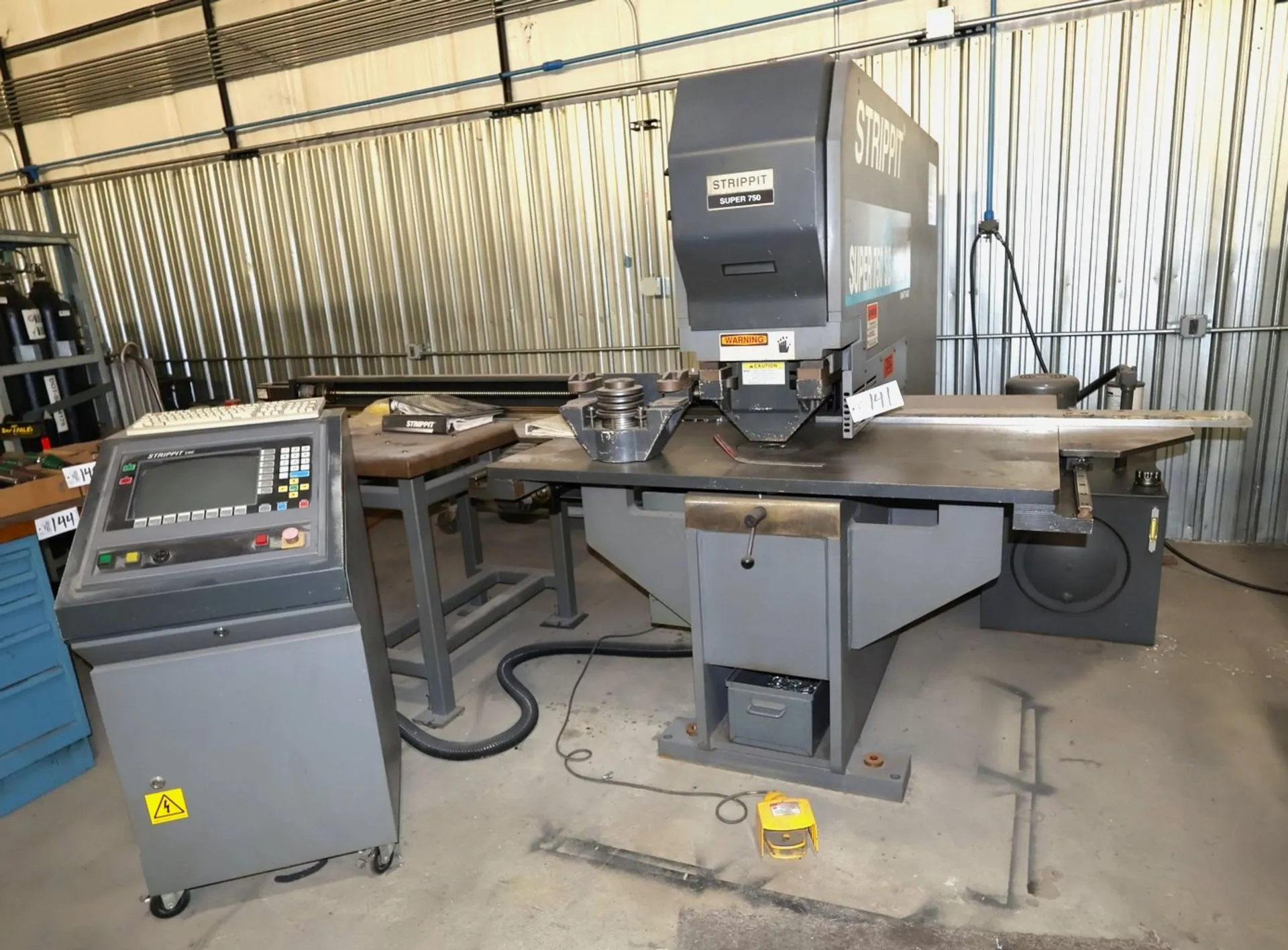

USED 1996 Strippit Super 750 SG/40

44 Ton Strippit Super 750 SG/40 SINGLE STA. PUNCH PRESS

STRIPPIT 44 TON SINGLE STATION FABRICATOR WITH SMART GAGE PC CONTROL

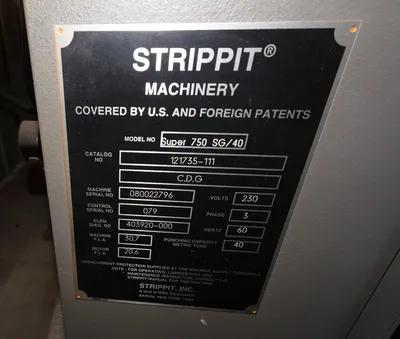

MODEL SUPER 750 SG/40     S/N 080022796  NEW 1996

Maximum material thickness .. 375"

Tonnage: .................... 40 metric (44 US Tons)

Capacity ............. 1.25" dia. in. .375" mild steel

                       2" dia. in .250" mild steel

                       3.5" dia. in .135" mild steel

Axis travel ................. 30" x 72" *WITH TABLE

Gage position accuracey ..... +- .002"

Table Height ................ 39"

Positioning speed ........... up to 800 IPM

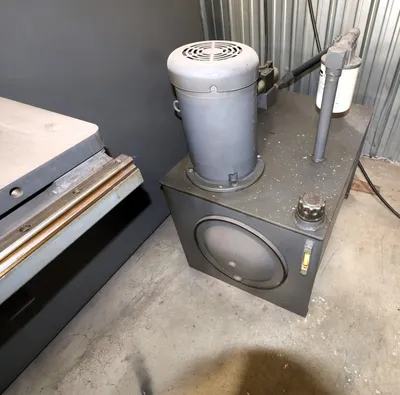

Hydraulic pump motor ........ 7 1/2 HP

Air consumption ............. 90 PSI, negligible SCFM

Dimensions - 106" W x 90.25" D x 76" H

Weight - 12,000 lbs.

EQUIPPED WITH:

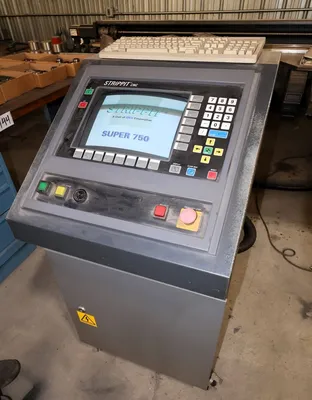

- SMART GAGE PC BASED CONTROL

- BALL TRANSFER SUPPORT TABLE FOR EXTENDED TRAVEL

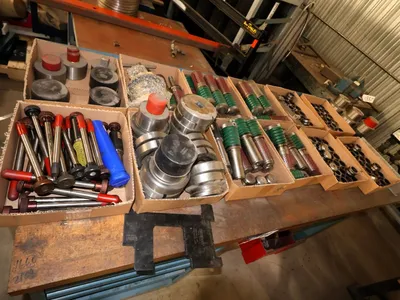

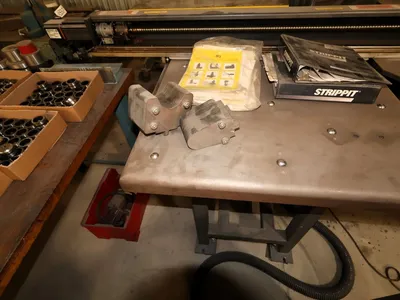

- LOTS OF TOOLING (AS SHOWN)

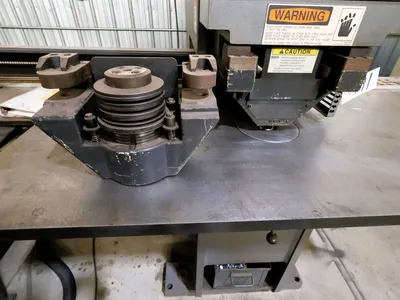

- BOTH THE LARGE AND SMALL DIE HOLDERS

- FOOT PEDAL

- OPERATION MANUALS

FOR MORE INFORMATION: Call Rick at 973-497-7560
