1.5" Width 45" Stroke Hansford-Davis 15B KEYSEATER, Autofeed, 2 HP Drive,

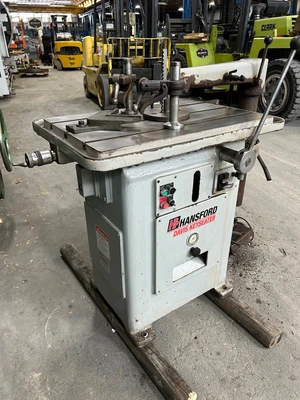

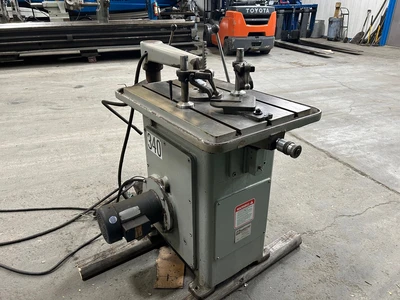

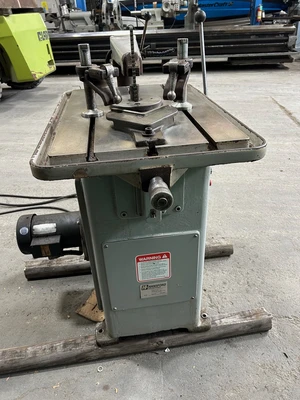

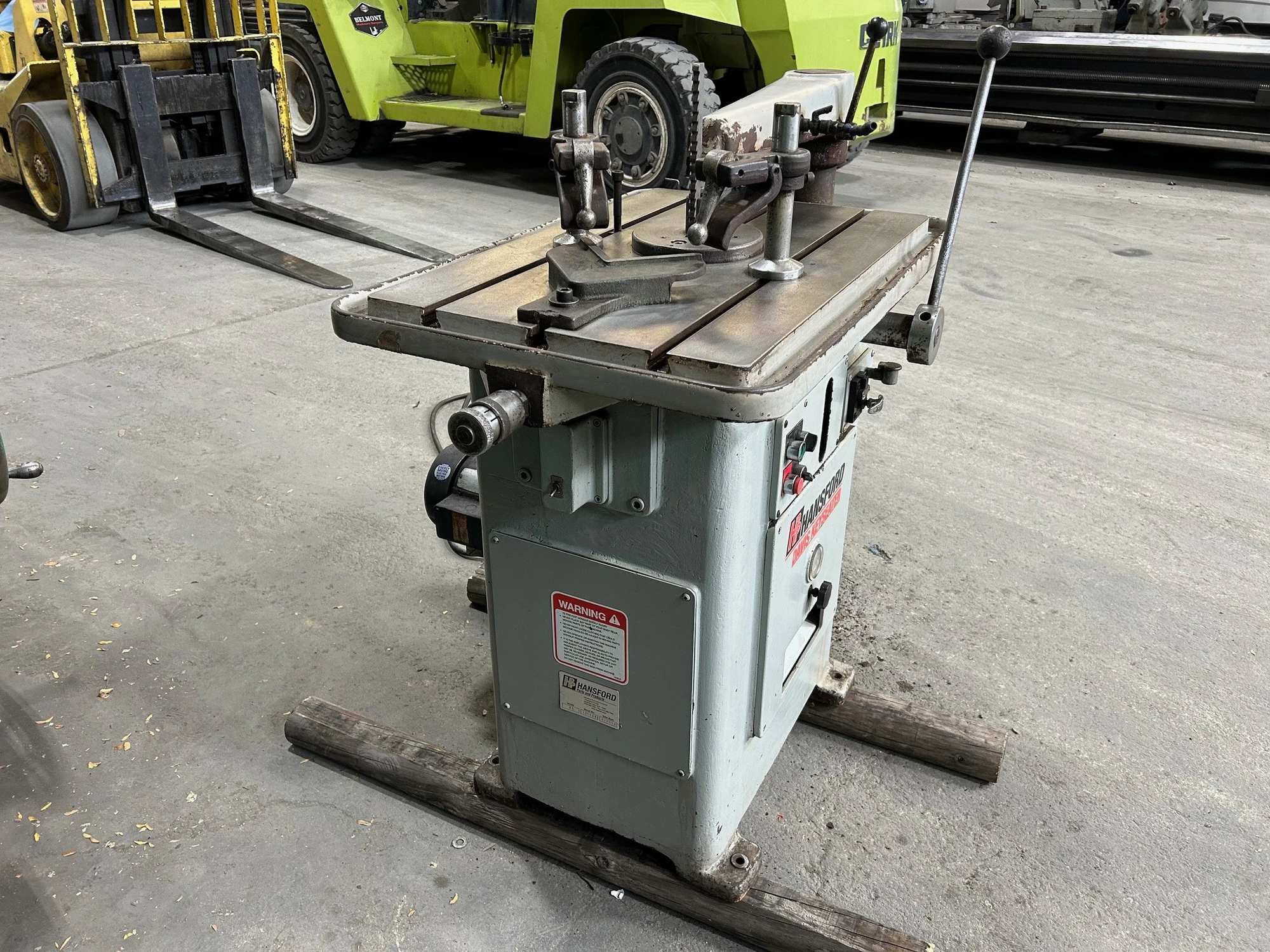

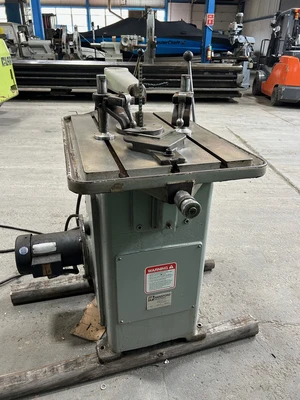

1-1/2" HANSFORD/DAVIS MECHANICAL KEYSEATER

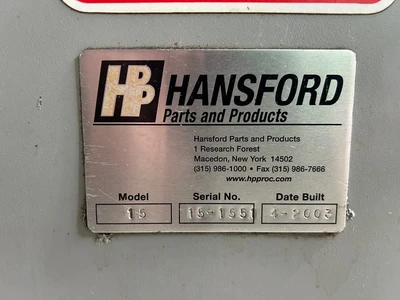

MODEL 15B, S/N: 15-1551, NEW 2003
SPECIFICATIONS:
CUTS KEYWAYS IN STEEL .............. 1/16" TO 1-1/2" WIDE
SPEED .............................. 45 SPM

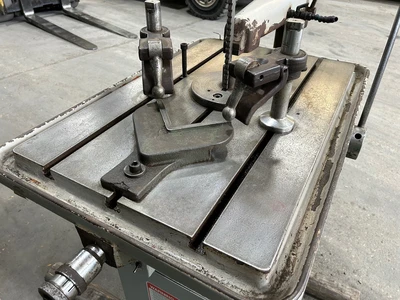

TABLE SIZE ......................... 20" X 31"
NUMBER OF T-SLOTS IN TABLE ......... 3
TABLE MOVEMENT ..................... 1-1/2"
STROKE ............................. 4-1/2"
THROAT DEPTH, FACE OF 1"
CUTTER TO ARM POST ............. 19"
MAX INCL TAPER PER FOOT CAN BE CUT . 3"
MAX WORK HEIGHT, STANDARD .......... 12"
MAX LENTH OF CUT WITH 3/4" HIGH BUSHING HOLDER
-16" LONG CUTTER .............. 4"
-20" LONG CUTTER .............. 8"
-24" LONG CUTTER .............. 12"
SHIPPING DIMS ...................... 40-1/2" x 43-1/2" x 48"
APPROXIMATE WEIGHT ................. 1,250 LBS.
EQUIPPED WITH:
MICROMETER DEPTH STOP
AUTOMATIC FEED OPTION
RATCHETING ARMLIFT
BIJUR ONE SHOT LUBE
COOLANT SYSTEM

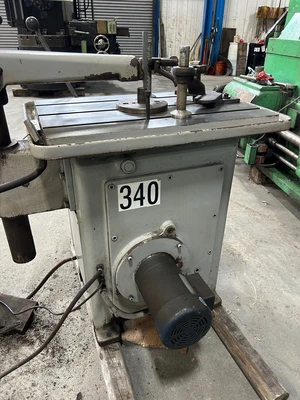

2 HORSE POWER SPEED DRIVE
INSPECT UNDER POWER IN A MIDWEST WAREHOUSE
FOR MORE INFORMATION: Call David at 973-497-7570
