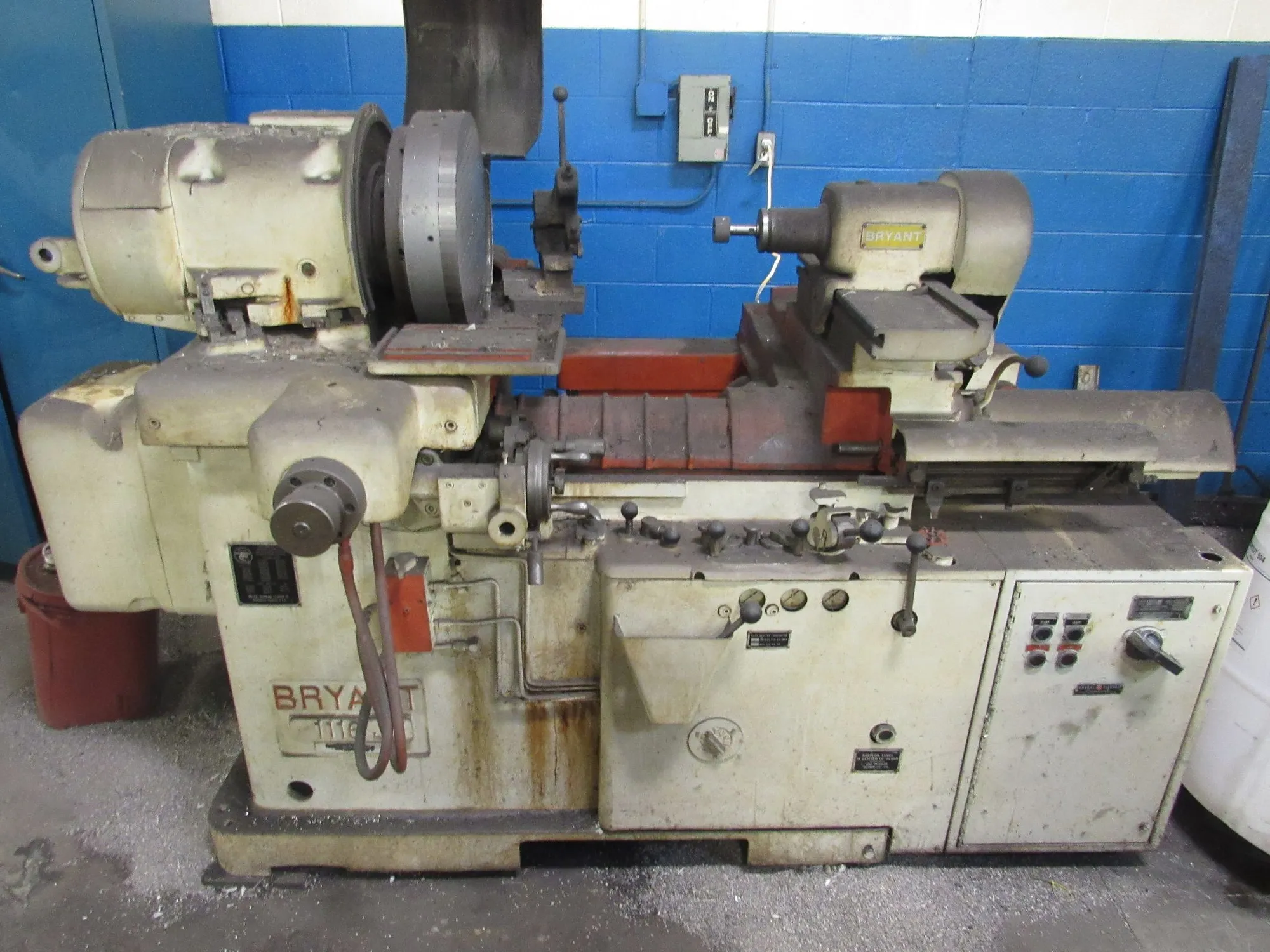

USED 1951 BRYANT 1116J

1116J BRYANT INTERNAL GRINDER

S/N R9937 YEAR: 1951

STANDARD CATALOG SPECIFICATIONS
Total chuck swing (without guard) work head on center. 16"
Traverse stroke (maximum)............................. 20"
Grinding stroke....................................... .375 to 8"
Work spindle RPM (either direction of rotation)....... 50 to 650
Table movement............ Forward.................... 7"
Table movement............ Rear....................... 2.75"
Work head adjustable to.............................. 45 degrees
(Will grind 90 degrees included angle)

EQUIPMENT & FEATURES
Bryant cartridge spindle.
Hydraulic single point diamond dresser.
Cam lock work head.
Face stop.
Attached electrical.
Compensation.
