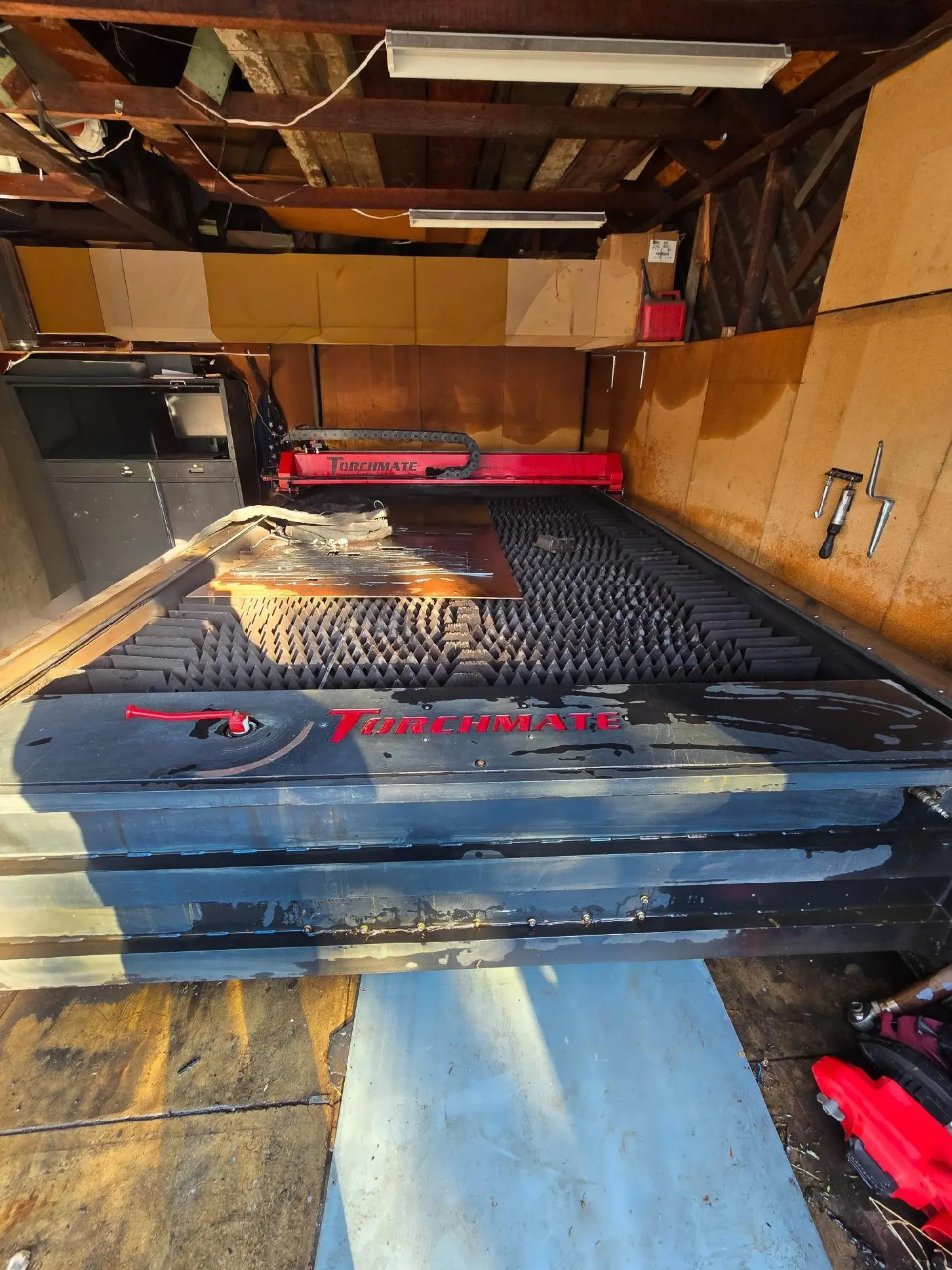

USED LINCOLN ELECTRIC TORCHMATE X

LINCOLN ELECTRIC Torchmate X Plasma Burning Table #8053

General specifications

-Cutting Area: 5' x 10' (standard)
-Plasma Power Source: Hypertherm Powermax 105 Amp is a common configuration.
-Pierce Capacity: Up to 7/8" (22mm) mild steel.
-Drive System: X/Y Axis Rack and Pinion with 5:1 reduction and a Z Axis Ball Screw/Linear Stage.
-Traverse Speed: Up to 572 IPM.
-Cut Speed: Up to 572 IPM.

Features and software
-Software: Standard Visual Machine Designer with onboard nesting. Allows direct import of DXF and DWG files.
-Height Control: Integrated Arc Voltage Height Control with a magnetic breakaway system.
-Water Table: Includes an integrated water table with adjustable water height for dust and smoke control.
-Gantry: Steel fabricated gantry with a dual y-axis drive.
-User Interface: Touchscreen interface for the HMI (Human Machine Interface).
-Other Features: Includes a full cable carrier system, low backlash 5:1 gearboxes, and angled support slats for increased life.

Input power and air
-Input Air: 8 SCFM @ 90 PSI, with dry air filtered to a minimum of 5 microns.
-Electrical: Requires 15 amp/110 volt AC service or 8 amp/220 volt AC service.
