STANDARD FEATURES
• Eurotech-Fanuc EASY Plus Control, 15” LCD color touch screen and full keyboard.
• Tool load monitoring system.
• 10.4” Graphics parts cutting display.
• Extended editing functions; merge, change, move, copy.
• 32-bit CPU high-speed Pentium microprocessor
CNC system.
• 3,000 RPM main spindle speed.
• 40 horsepower spindle motor
• 16 station turret.
• 0.3 seconds/station turret indexing
• 945 IPM B-axis rapid traverse.
• 945 IPM Z -axis rapid traverse.
• 709 IPM X -axis rapid traverse.
• 295 IPM Y -axis rapid traverse.
• 12” 3-jaw chuck on main spindle.
• Rigid tapping; main, live -tool spindle.
• High pressure coolant system.
• Set of static and live tool holders.
• Programmable tool probe system.
• Revolving tool attachment for live spindle tooling.
• Revolving tools driven by 23 horsepower built in spindle drive motor inside turret disc thermally stabilized by cooling unit.
• 16 revolving tool stations.
• C-axis control on main
• (1) X-axis mill/drill tool & (1) Z-axis mill/drill tool.
• Air conditioned electronics cabinet.
• Chip conveyor.
• Programmable parts catcher
• Eurotech Gap Elimination Ladder Logic for faster cycle time
• Free lifetime programming classes
• Free online phone support for both maintenance and programming
• 1-year warranty on machine.

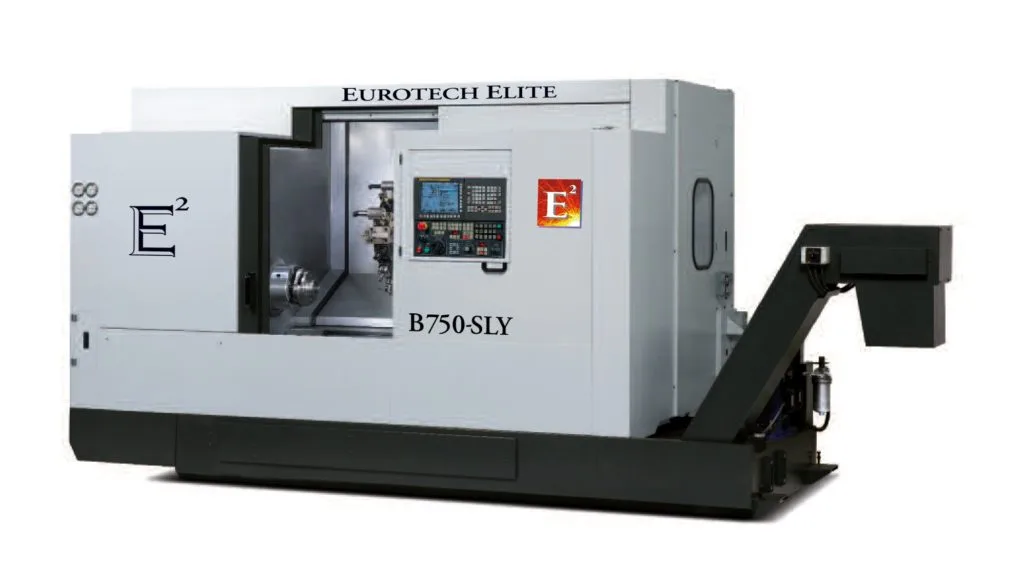

Model: B750LY
Maximum bar capacity: 3.75”
Maximum machining diameter: 18.4”
Maximum machining length: 29.5”
Maximum swing over diameter (bench): 26.7”
Spindle Bore: 4.17”
Spindle speed range: 3,000 RPM
Spindle motor: 53 HP
Motor type: Wide range
Spindle nose: ASA A2-8
Y-axis stroke: 5.5”
Turret indexing time 1 station: 0.3 sec/pos. (1-station)
Turret indexing type: Bi-directional
Number of stations: 16
Number of positions: 16
Drive motor – max. rating (Fanuc): 23 HP
Speed range (infinitely variable): 6,000 RPM
Engagement time: immediate
Spindles: Main
Spindle positioning: Full “C”
Minimum command increment: 0.001 degree
Positioning system: Spindle motor
Degree of movement: Programmable
Rapid speed rate: 100 RPM
Voltage required: 400 volt AC, 3-phase
Air required: 80 psi @ 4 CFM
Amperage Draw: 75 Amp.
Width: 80”
Height: 87.5”
Length with chip conveyor: 157.5”
Machine weight with chip conveyor: 16,755 lbs.
Z axis repeatability accuracy: +/-.00004”
X axis positioning accuracy: +/-.00006”
C axis positioning accuracy: +/-.00005°
C axis repeatability: +/-.00001°
