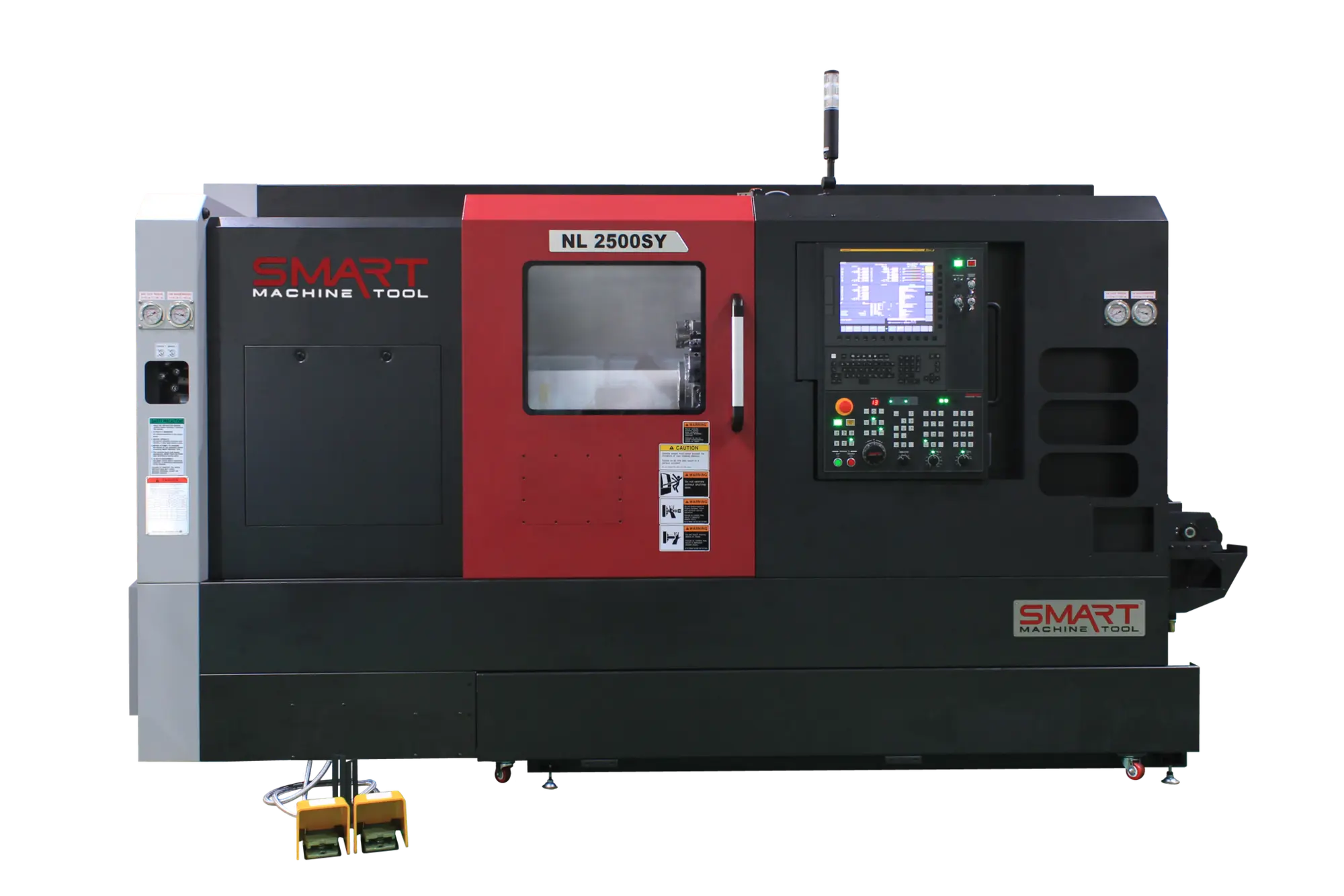

NEW SMART MACHINE TOOL NL 2500SY

OPTIONAL EQUIPMENT:

-NL2500SY-CC Chip Conveyor - Side Discharge........ $ 5,950.00
-N4082003P00 290 PSI Coolant Pump, Replaces Standard Pump........ $ 3,600.00
-IPC Internal Parts Catcher / Parts Conveyor........ $ 5,950.00
-MGI-TRAINING Manual Guide i Training........ $ 2,000.00

Tool Holders
-N3046801A00 X-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru)........ $ 3,100.00
-N3046802A00 Z-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru)........ $ 4,900.00
-N2240808A00 Face Tool Holder (1”)........ $950.00
-N2340802A00 O.D. Holder (1”)........ $ 950.00
-N2340803A00 Double O.D. Holder (main/sub) (1”)........ $ 950.00
-N2340804A00 Double O.D. Holder (1/2 index) (1”)........ $ 950.00
-N2340805A00 U-Drill Tool Holder (2”)........ $ 950.00
-N2340806A00 Double U-Drill Tool Holder (1/2 index) (1”)........ $ 950.00
-BBS SET NL2500SY
Boring Bar Sleeve Set 2”x (3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)........ $ 2,100.00
-KCl729/730 Block, Clamp & Wedge........$ 350.00

(End of optional equipment)

Standard Tooling Package and Accessories
Driven Tool Holders
• 1x Axial milling holder (ER32)
• 1x Radial milling holder (ER32)
Tool Holders
• 2x I.D boring single (Ø50mm [2”])
• 1x I.D boring double (Ø25mm [1”])
• 1x O.D single (Ø25mm [1”])
• 3x O.D double front/rear (□25mm [1”])
• 1x O.D double front (□20mm [3/4”])
Sleeves
• 1x Boring (Ø10, 12, 16, 20, 25, 32, 40) x Ø50 mm [1x Boring (Ø3/8”, 1/2", 5/8”, 3/4", 1”, 1 ¼”, 1
½”) x Ø2”]
• 1x Sub boring (Ø10, 12, 16, 20) x Ø25 mm [1x Sub boring (Ø3/8”, 1/2", 5/8”, 3/4") x Ø1”]
Drill Sockets
• 1x (MT#3, MT#4) x Ø50mm [2”]
Standard Features and Accessories
• Main Chuck 10” (Samchully MH-210 3-jaw chuck)
• Sub Chuck 8” (Samchully HS-08 3-jaw chuck)
• 6x Soft jaw (3x Main chuck 10” and 3x Sub chuck 8”)
• 2x Hard jaw (1x Main chuck 10” and 1x Sub chuck 8”)
• Chuck clamp foot switch / Confirmation
• Sub spindle oil cooling system
• Coolant pump 20 bar (trochoid)
• Oil skimmer
• Automated metered lubrication system
• Bar feed interface
• Hydraulic unit with pressure safety switch
• Door interlock
• Operation status light tower (3 colours) / Work light (LED lamp)
• Manual and part list
• Tool box / leveling blocks
• Manual guide I (MGI) & iHMI
• 1 years machine parts warranty / 2 years Fanuc NC warranty
