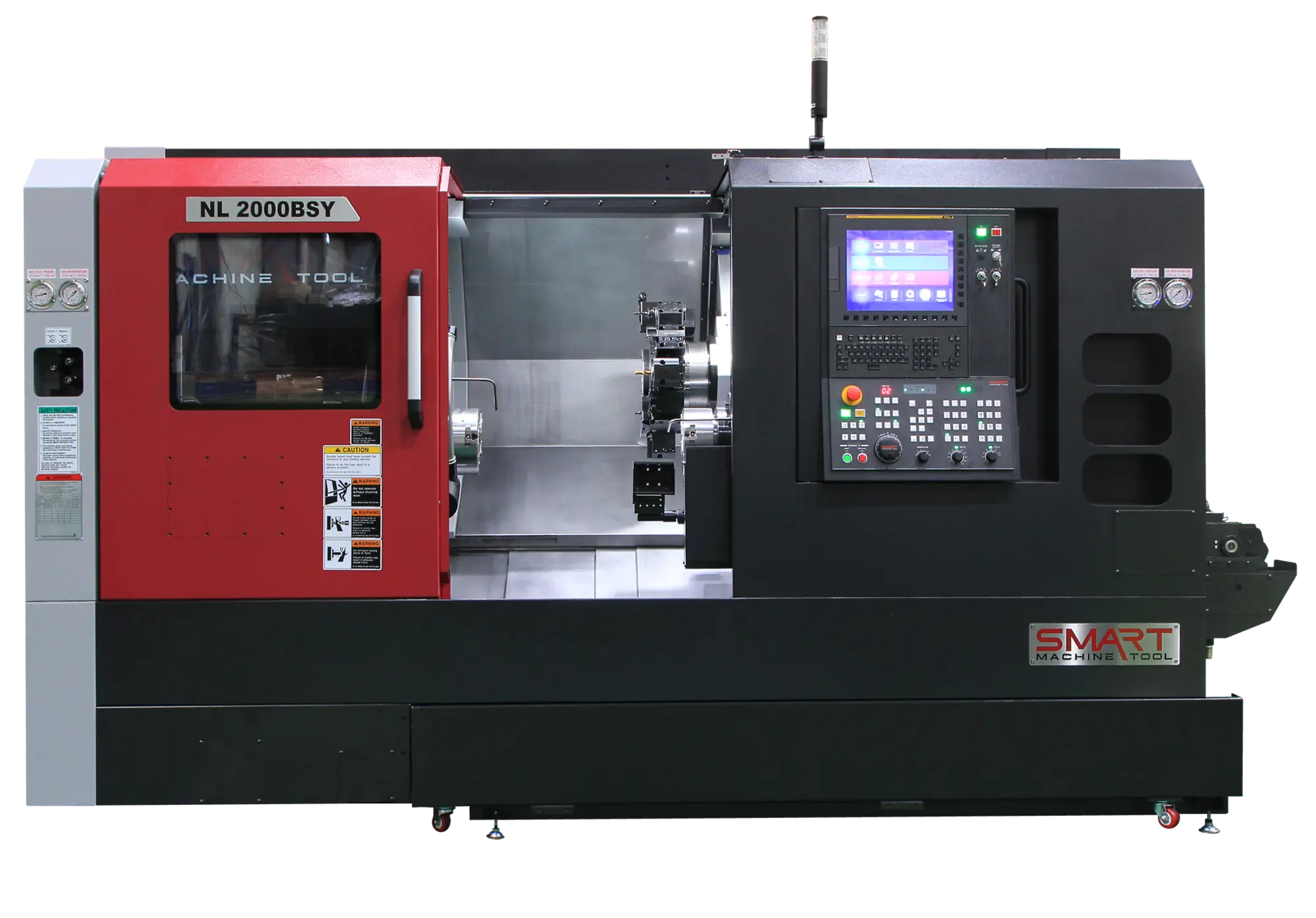

NEW SMART MACHINE TOOL NL 2000BSY

CAPACITY
Swing over the bed 31.89”
Maximum turning diameter 16.18”
Maximum turning length 28.94”

MAIN SPINDLE
Chuck Size 8”
Spindle nose A2-6
Main spindle motor 20 / 25 hp
Spindle speed 4,500 rpm
Draw Tube ID 2.64”
C axis minimum 0.001 deg

SUB SPINDLE
Chuck Size 8”
Spindle nose A2-6
Main spindle motor 15 / 20 hp
Spindle speed 5,000 rpm
Draw Tube ID 2.0”
C axis minimum 0.001 deg

BED SLIDE & CARRIAGE
Rapid traverse (X / Y / Z / ZB) 1,181 ipm / 394 ipm / 1,181 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 30° Slant bed

TURRET
Number of tool stations 12 (24) tools (BMT55)
Turret indexing speed (1 station) 0.15 seconds
Rotating Tool Spindle Motor 5 / 7.4 hp
Rotating Tool RPM 5,000 RPM

MACHINE SIZE
Floor space requirements including
conveyor (L x W x H) 184.7” x 71.6” 188.6” x 71.6”

CNC Model Fanuc 0i-TF Plus (15” touch screen)

SMART PACKAGE:
• Tool Presetter
• Oil Skimmer
• Barfeeder Interface
• Air Blow for Main/Sub Spindle
• Manual Guide i
• Pneumatic Parts Ejector
• Sub Spindle Coolant Flush
• (1) X-Axis Live Tool Holder
• (1) Z-Axis Live Tool Holder

SMART VALUE PACKAGE:
• Chip Conveyor - Side Discharge
• 290 PSI Coolant Pump
• Internal Parts Catcher/Parts Conveyor (Max Diameter: 2.6”, Max Length: 6.5”, Max Weight: 6.6 lbs)
• 1 Set of Hard Jaws
• 3 Sets of Soft Jaws
• 3 Color Tower Light
