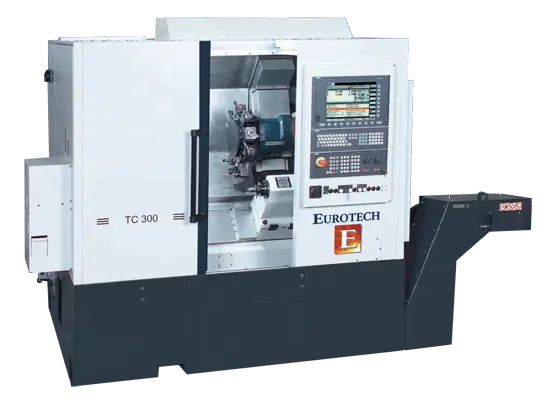

NEW EUROTECH TC 300

Spinner
New Eurotech SPINNER! This German based high tech manufacturer founded in 1949,has grown to over 500 employees and completes more than a thousand advanced, high speed, up to 12 axis CNC turning/milling machines, designed for high precision, high volume, fully automated unattended machining.
High-speed up to 2 -5/8″ universal turn/mill centers with 28.8 HP spindle, Fanuc 32iT, 12-station Y-axis turret, bar feed interface, C-axis, rigid tapping and depending on model, programmable sub-spindle,, and up to 3.3 HP and 6000 RPM live tooling.

Model: TC300
Max swing diameter: 15.7″
Max turning diameter: 7.9″
Max turning length: 15.7″
Stroke X: 7″
Stroke Y*: +/- 1.6″
Stroke Z: 17.7″
Rapid traverse X-axis / Y-axis / Z-axis: ( 0.6 / 0.6 / 0.9 ) inches / min
Feed screw diameter x pitch X-axis: 1″ x 0.2″
Feed screw diameter x pitch Y-axis: 1″ x 0.2″
Feed screw diamter x pitch Z1-axis: 1.6″ x 0.4″
Feed screw diamter x pitch Z2-axis*: 1.6″ x 0.2″
