Features
45° slanted one-piece high rigidity bed structure
Least heat distortion, the most stabilized unit structure
Able to extend, and high productive machine structure
Unbeatable rapid travel speed : 36m/min (E200A/MA/C/MC)
The most reliable high speed servo turret is adopted: 0.1sec/step

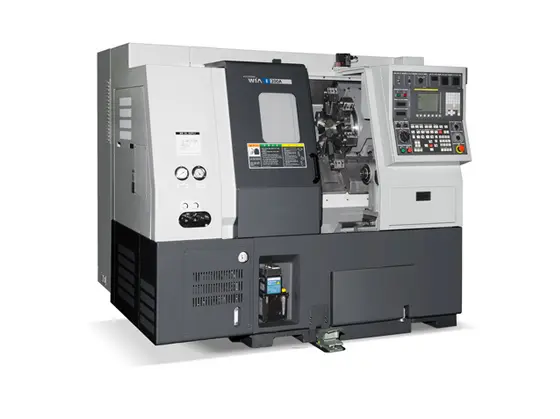

Application of a Box Guide to handle heavy cutting (E200PA/PC)
Compact design, able to install within a narrow space.
Ergonomic design allows convenient access to chuck and tool
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Max Turning Dia: 13.8″ inch
Max Turning Length: 10.6″ inch
Chuck Size: 8″ inch
Driving Method: Belt
Spindle RPM: 4,000 r/min
Spindle Output (Max/Cont.): 14.75/20 hp
Spindle Torque (Max/Cont.): 67.85 / 123 ft.lb
Travel(X/Z): 8.3′′/12.2′′ inch
Rapid Travel(X/Z): 945/945 in/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size (OD/ID): 1″ / 1.5″ inch
