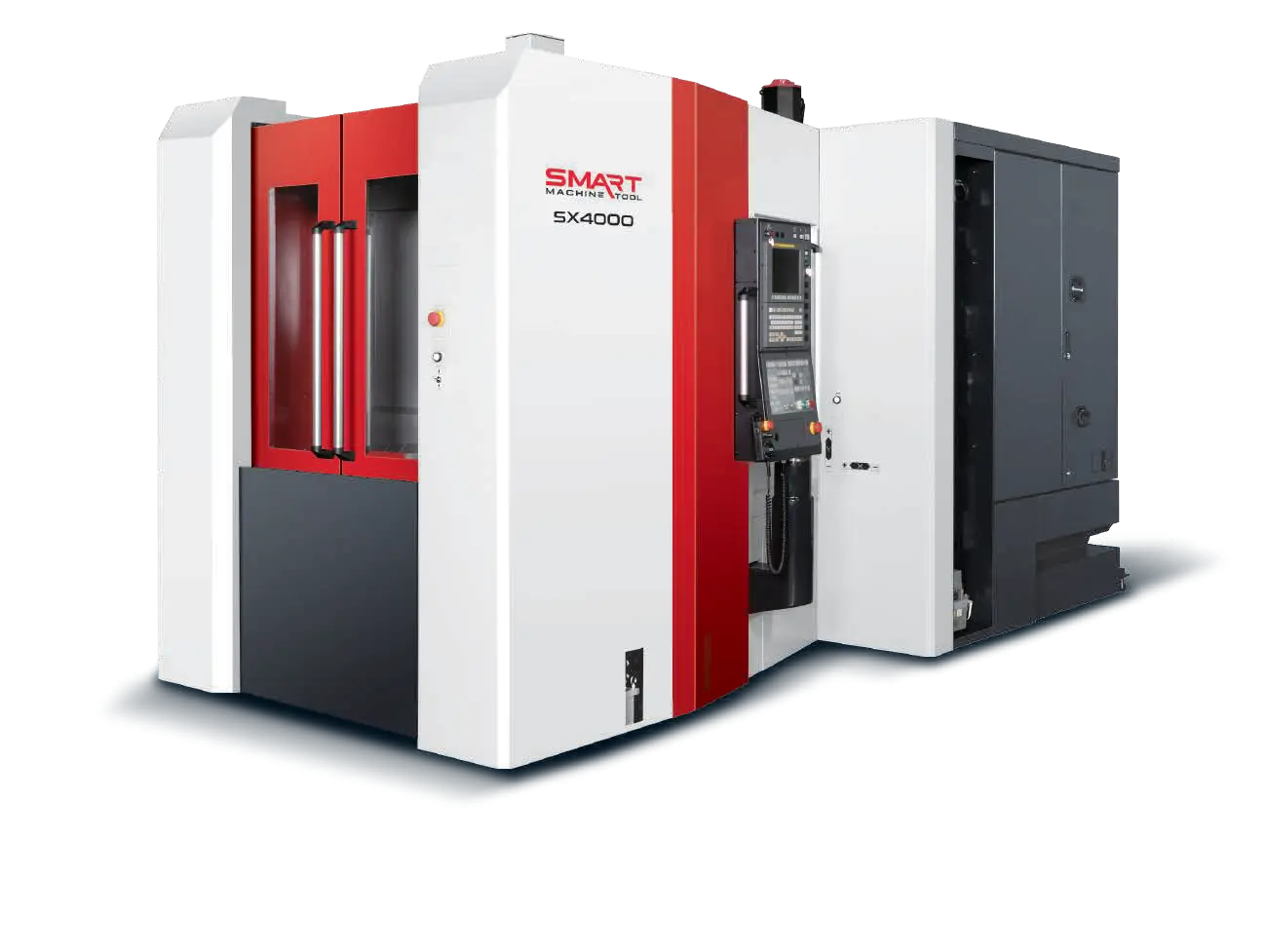

NEW SMART MACHINE TOOL SX 4000

STANDARD FEATURES / ATTACHMENTS
-AC servo motor / inverter driven tool magazine for high speed positioning
-Air dryer - inhibits moisture contamination of the machine's internal Components
-APC safety guard for the work load / unload station with safety interlock
-ATC zero return - ATC returns automatically to origin from any stopped Position
-Ball screw cooling system--cooling oil controlled to the bed temperature is
-Circulated through the hollow ball screws used in all axes on the
-SX-4000 to suppress heat generation.
-Ballscrews, pretensioned, double anchor supported
-Coil chip conveyors (2), left and right side of pallet
-Coolant equipment
-Coolant shower flush
-Coolant thru Prep (1,000 PSI Capable)
-Cycle completion / alarm patrol light: red and yellow
-Foundation parts
-Four tapered cone pallet positioning
-Fully enclosed automatic splash guards
-Heavily ribbed one piece T-shaped bed construction
-High grade meehanite column & bed castings.
-Large linear cross-roller guides - Auto Grease Lubrication
-Leveling blocks
-Lighting equipment - fluorescent lamp
-Magazine Interrupt Function
-Metal shutters on X, Y, and Z axes
-"Soft Scale" control for improved accuracy - thermal compensation control
for the spindle head which corrects heat-induced distortion for dynamic
machining accuracy
-Operator's splash guard door with safety interlock
-Precision pallet edge locating blocks
-Prepared space for mounting auto jig coupler 6 port per pallet. Auto Jig coupler is not
included.
-Spindle air purge - reduces contaminants from entering the spindle labyrinth area
-Spindle oil cooler - sensor located on machine casting
-Spindle taper air blast
-Supplementary fuses and lamp
-Two station direct turn type APC
