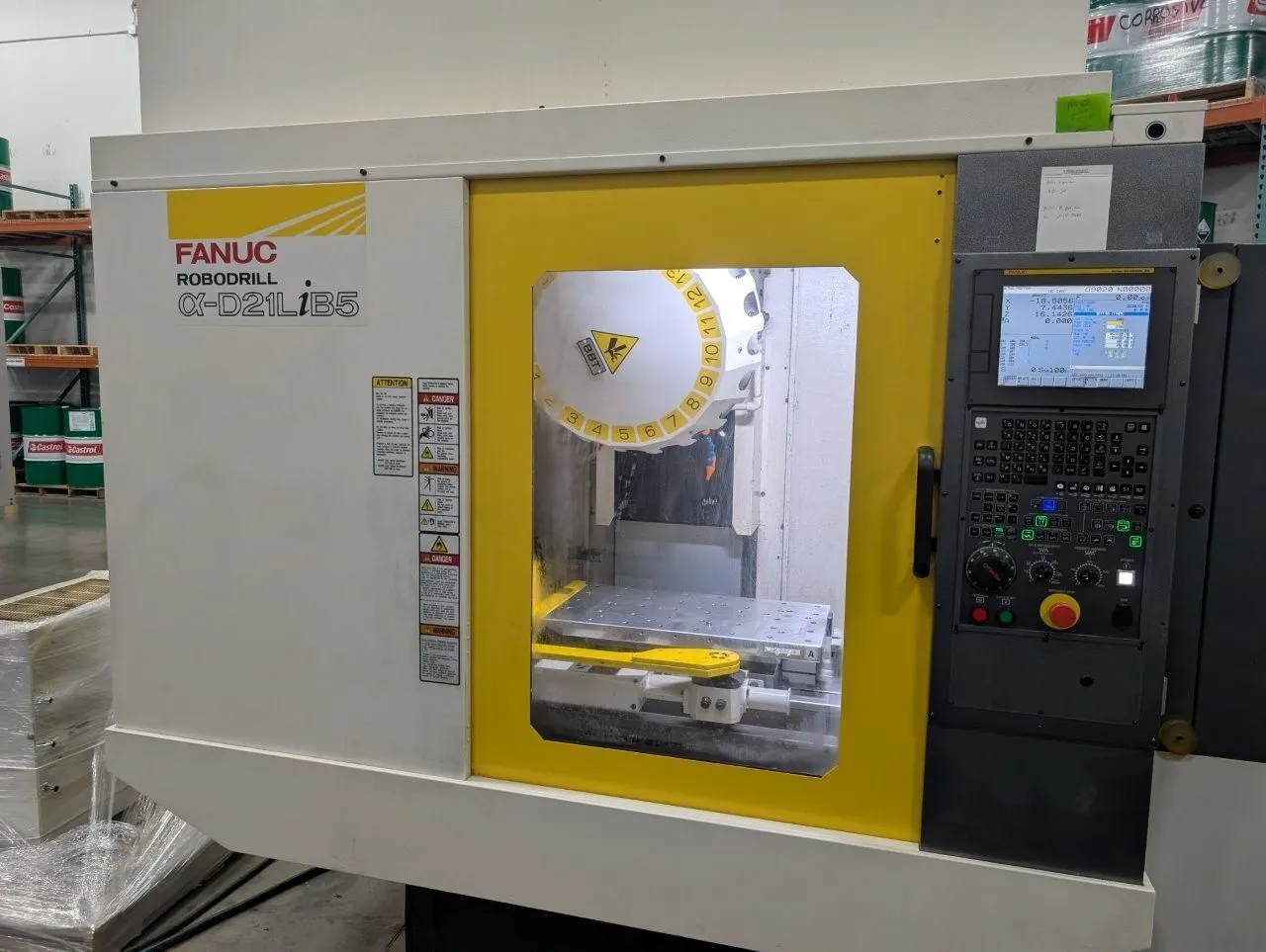

2018 FANUC ROBODRILL ALPHA D21LIB5 used drilling & tapping center available. Specs: X 30", Y 15.5", Z 13", power 33.8kW, RPM 24000, taper BT 30. Ideal for precision tasks.
| X | 27.55" | 699.77 mm |
| Y | 15.748" | 400 mm |
| Z | 12.99" | 329.95 mm |
| Power | 33.8 hp | 25.2 kW |
| RPM | 24,000 RPM | 24,000 RPM |
| # ATC | 21 | 21 |
| Taper | BT 30 | BT 30 |
| Control | CNC | CNC |
X-Axis Travel 27.55"
Y-Axis Travel 15.748"
Z-Axis Travel 12.99"
Spindle Speed 24,000 RPM
Spindle Taper BT 30
Tool Magazine Capacity 21 ATC
Fanuc Series 31i-Model B5 CNC Control
Options:
Fanuc 31i-B5 CNC
Blum Spindle Probe
Blum Laser Tool Setter
Mist Collector
Automatic Pallet Changer
All Available Manuals
