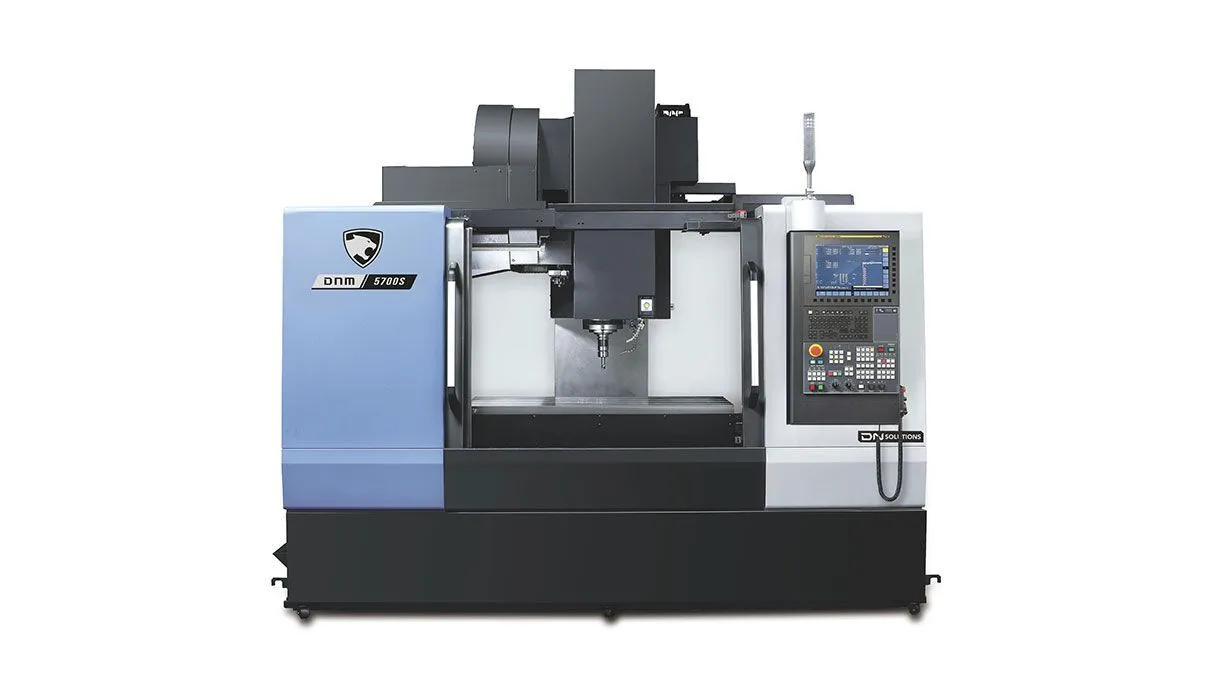

2019 DOOSAN Model DNM 5700S Vertical Machining Center, X - 44" x Y - 22" Z - 20" Travels, 12K Spindle
High Productivity Vertical Machining Centers
With a global installed base in excess of 30000 machines, the DNM series is a popular and proven mainstay in DN SOLUTIONS’s product line. With a range of different models, sizes and capacities - there is definitely a DNM machine that meets your needs.
| X | 44" | 1,117.6 mm |
| Y | 22" | 558.8 mm |
| Z | 20" | 508 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| Taper | ISO #40 | ISO #40 |
| Table-W | 22" | 558.8 mm |
| Table-L | 51" | 1,295.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (FANUC Series I Plus) | CNC (FANUC Series I Plus) |
| Dimensions | 95"L x 118"H x 122"W | 95"L x 118"H x 122"W |
| Weight | 14,330 lbs | 14,330 lbs |
TRAVELS
X-Axis Travel Distance 41"
Y-Axis Travel Distance 22"
Z-Axis Travel Distance 20"
FEED RATES
X-Axis Rapid Traverse 1,654 IPM
Y-Axis Rapid Traverse 1,654 IPM
Z-Axis Rapid Traverse 1,417 IPM
MAIN SPINDLE
Max. Spindle Speed 15,000 rpm
Max. Spindle Power 20hp
Max. Spindle Torque 87 ft-lbs
Tool Taper ISO #40
TABLE
Table Length 51"
Table Width 22"
Maximum Workpiece weight 1,764 lbs
DIMENSIONS
Length 95"
Height 118"
Width 122"
Weight 14,330 lbs
Favorites
300 PSI Thru Spindle Coolant
Air Pump
Reinshaw Probe
Tool Presetter
Spindle Chiller
Under 2,000 hours
BT-40
