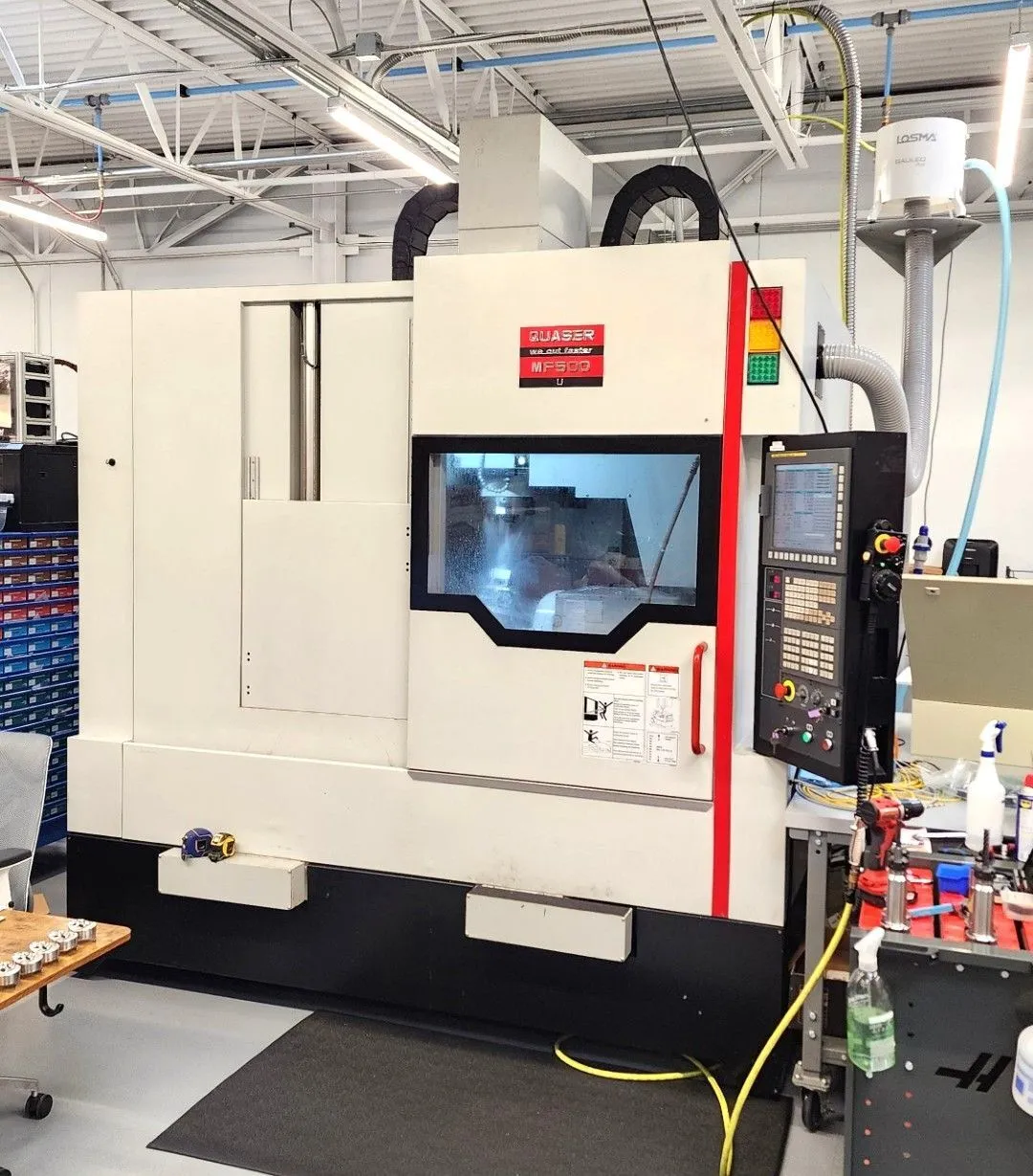

USED 2018 QUASER MF-500U
Description
355 Hours, 5-Axis, Fanuc, 15,000 RPM, CTS, 120 ATC. With 19.68" of maximum swing and tilting A-axis with full 360° continuous C-axis rotary, this 2018 Quaser MF-500U CNC vertical machining center is capable of 5-axis simultaneous machining and also includes chip conveyor and mist collector. Machine is in plant, under power and available immediately. Must see video.
Specifications
| TABLE LENGTH | 16.14" | 409.96 mm |
|---|---|---|
| TABLE CAPACITY | 440 lb | 199.6 kg |
| X-AXIS TRAVEL | 21.65" | 549.91 mm |
| Y-AXIS TRAVEL | 24.8" | 629.92 mm |
| Z-AXIS TRAVEL | 24" | 609.6 mm |
| A-AXIS ROTATION | +30° ~ -120° | +30° ~ -120° |
| C-AXIS ROTATION | 360° CONTINOUS | 360° CONTINOUS |
| SPINDLE SPEED | 15,000 RPM | 15,000 RPM |
| SPINDLE MOTOR | 35 hp | 26.1 kW |
| TOOL CAPACITY (ATC) | 120 | 120 |
Equipped With
FANUC 31i-B5 CNC CONTROL
5-AXIS CONTINOUS
FULL C-AXIS ROTARY
A-AXIS TRUNNION TABLE
COOLANT THROUGH SPINDLE
19.68" MAX SWING
15,000 RPM SPINDLE
BBT40 SPINDLE TAPER
120 DUAL-ARM AUTOMATIC TOOL CHANGER
126 GALLON COOLANT TANK
SPINDLE OIL CHILLER
AUTOMATIC LUBRICATION
CHIP CONVEYOR
RIGID TAPPING
WORK LIGHT
STATUS LIGHT
USB
** ORIGINAL OWNER
** AS OF JUNE, 2026 - CUTTING TIME: 355 HOURS
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
