144 Ton x 10'
| size | 144 Ton | 144 Ton |
| Tonnage | 144 T | 130.635 t |
| Type | HYD | HYD |
| Overall Length | 10' | 3 m |
| Between Housings | 106" | 2.7 m |
| Stroke | 8.5" | 215.9 mm |
| Dimensions | 144" x 87" x 94" | 144" x 87" x 94" |
| Weight | 24000 | 24000 |

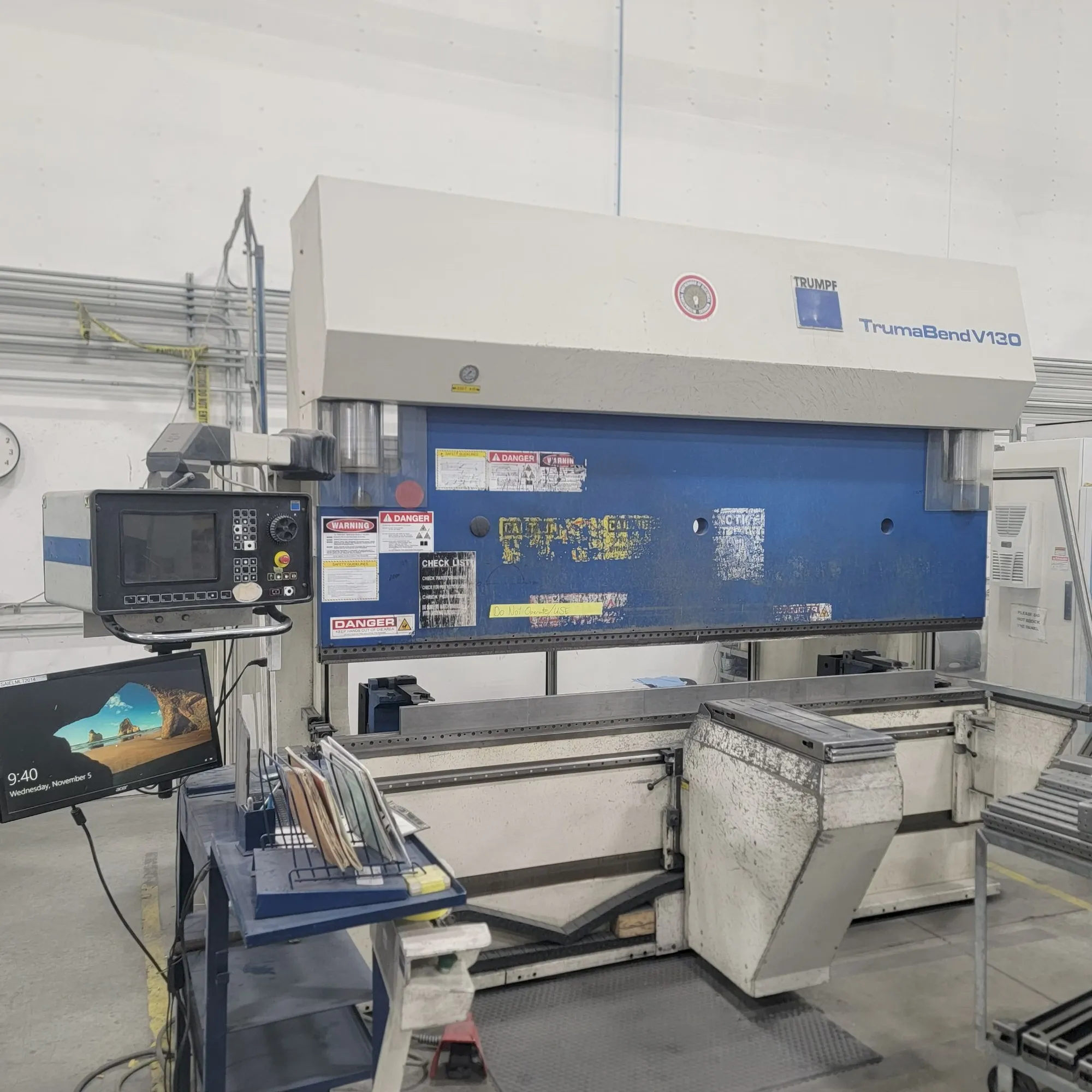

Trumpf Trumabend V130 CNC Hydraulic Press Brake
Tonnage Capacity: 144 Tons
Maximum Bending Length: 120.4″
Distance Between Housings: 106″
Stroke Length: 8.46″
Die Space: 15.2″
Throat Depth: 16.1″
Travel In X-Axis: 24″
Travel In R-Axis: 9.8″
Operating Speed In Y-Axis: 2-26 IPM
Drive Motor: 20 H.P.
Approximate Machine Weight: 24000
Machine Dimensions
152" wide x 72" front to back x 116" tall
Built New in 1999
Trumpf Bending Aid Sheet Loader
