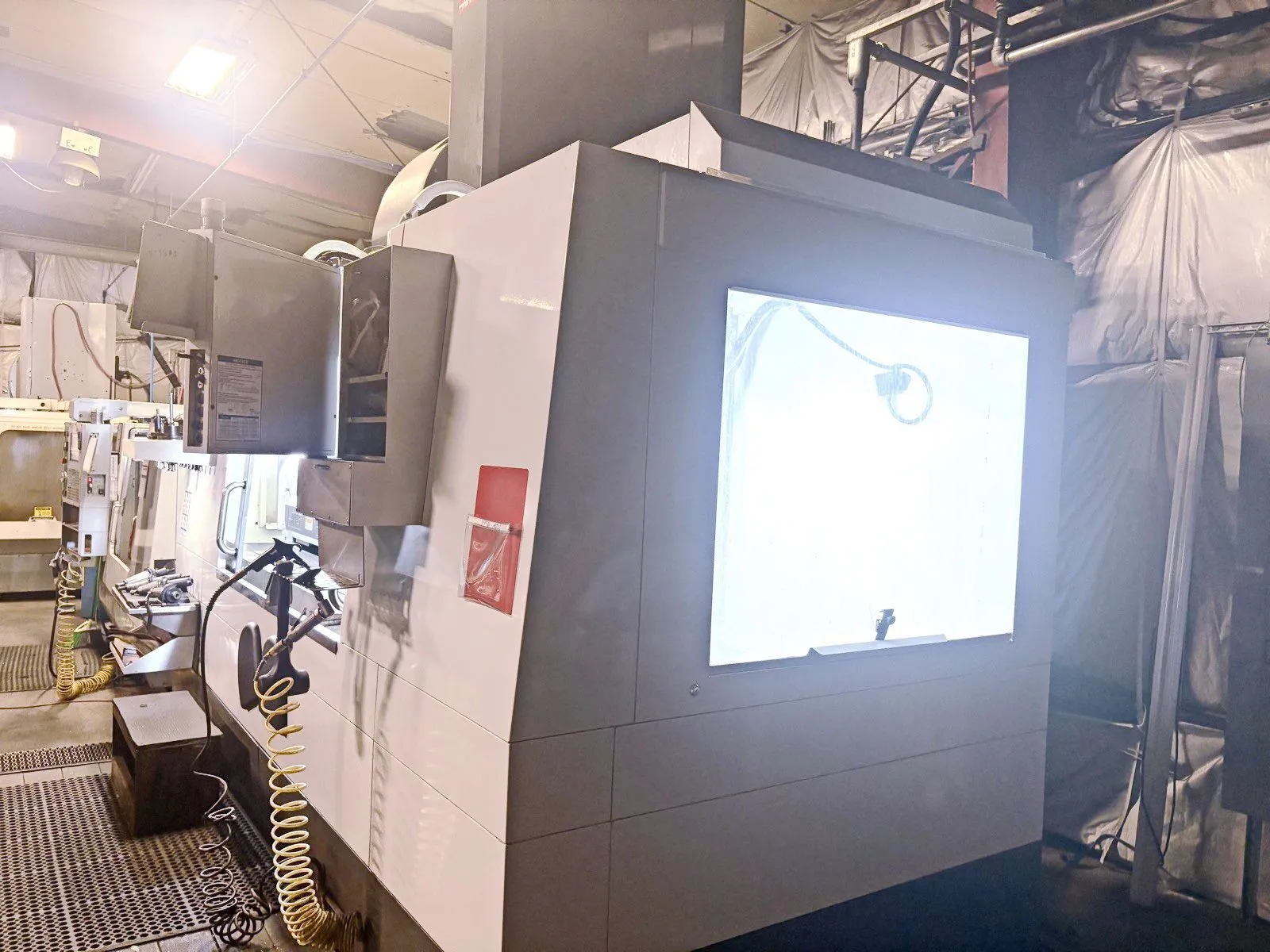

2014 Haas VF-6/50 Vertical CNC Machining Center, 5-Axis Trunnion Rotary Table, TSC, Programmable Coolant Nozzle, 2-Speed Geared Head Spindle, Rigid Tapping, Side-Mount Tool Changer, Chip Auger
| X-Axis | 64" | 1,625.6 mm |
| Y-Axis | 32" | 812.8 mm |
| Z-Axis | 30" | 762 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 28" | 711.2 mm |
| Table-L | 64" | 1,625.6 mm |
| # Axis | 3 | 3 |
| Max Table Load | 4,000 lb | 1,814.4 kg |
| Distance Spindle Nose to Table | 35" | 889 mm |
| Rapids (X/Y/Z) | 540 / 600 / 600 in/min. | 540 / 600 / 600 in/min. |
| Made In | Umted States | Umted States |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 195" X 102" X 139" | 195" X 102" X 139" |
| Weight | 22,500 lb | 22,500 lb |
5-axis trunnion rotary table (TR310) - Purchased in early 2025
Through spindle coolant
Programmable coolant nozzle
2-speed geared head spindle
30+1 side-mount tool changer
Liquid cooled spindle
Rigid tapping
Chip auger
