USED CINCINNATI 90 AS X 10 FT.

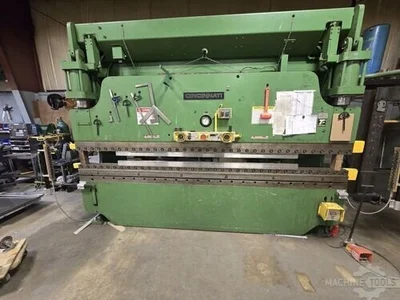

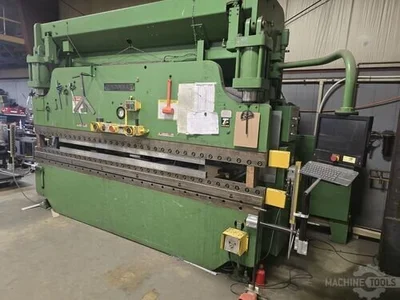

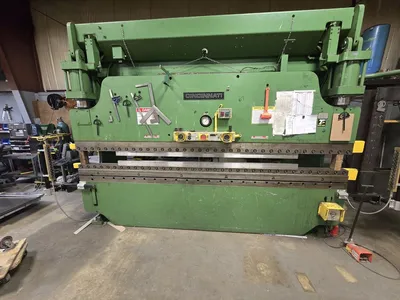

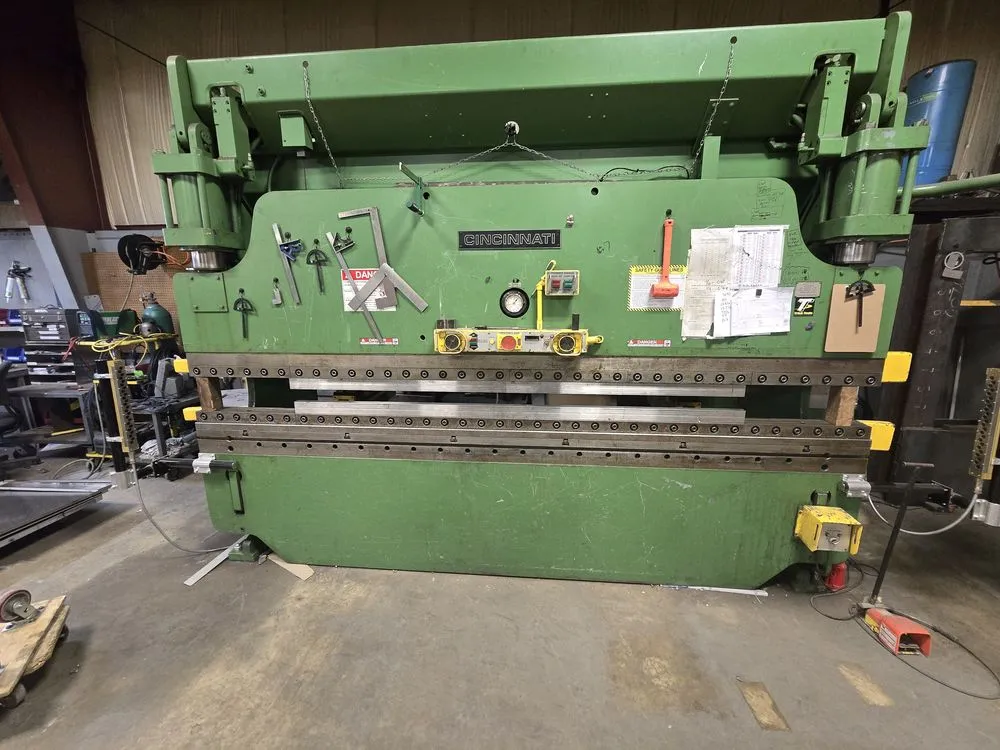

Cincinnati 90 AS X 10 Ft. 90 Ton x 10' CNC Press Brake

General Info

Stock #: 181250022
Location: Etna, OH
Brand: Cincinnati
Model: 90 AS X 10 Ft.
Approx. Shipping Weight: 18,000 Lbs.
Approx. Shipping Dimensions: 11' L x 6' W x 9.1' H
Loading Fee: Rigging Required

Specifications

Max Tonnage: 90 Tons
Overall Bed Length: 10'
Distance Between Housings: 8'6"
Stroke Length: 8"
Throat Depth: 7"
Open Height: 15"
Closed Height: 7"
Ram Speed - High Approach: 380 IPM
Ram Speed - Forming: 10-20-80 IPM
Ram Speed - Return: 294 IPM
Main Motor Horsepower: 25 HP
Electrical: 230V / 3-Phase
Full Load Amperage: Approximately 50.2

Equipped With

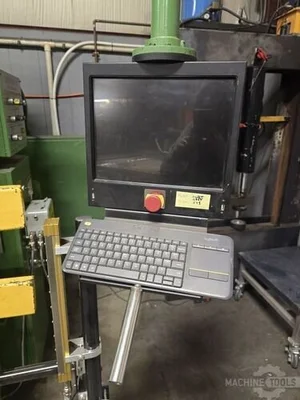

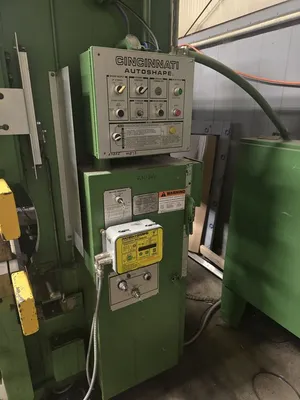

PC Controls (Model PC 800, new in 2023- remote support), linear scale encoder, Windows 10 OS, both cylinders rebuilt in 2024, new 4 way valve in 2024,

Additional Info
The Cincinnati Press Brake can be demoed upon request, check out the video on the listing to see it in operation.
