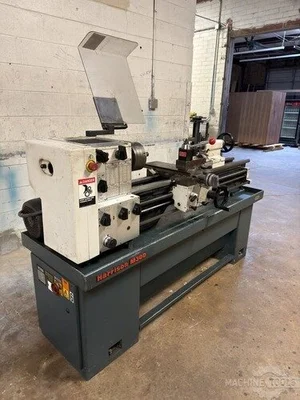

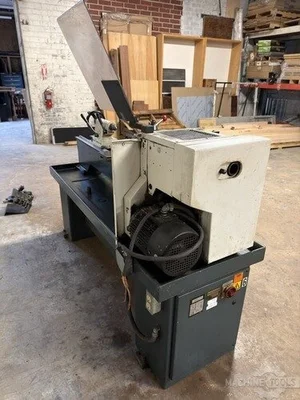

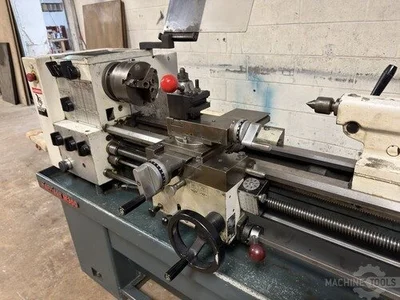

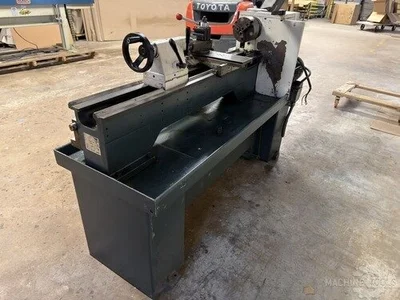

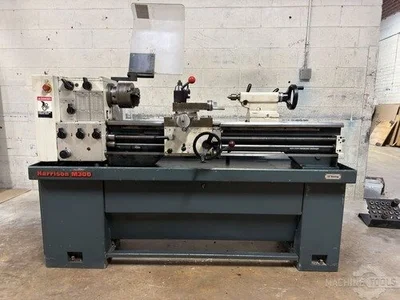

Harrison M300 13" x 40" Toolroom Lathe
| Swing | 13" | 330.2 mm |
| Gap Swing | 19" | 482.6 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 1" | 25.4 mm |
| RPM | 2,500 RPM | 2,500 RPM |
| Power | 3 hp | 2.2 kW |
General Info
Stock #: 141250014
Location: Marietta, GA
Brand: Harrison
Model: M300

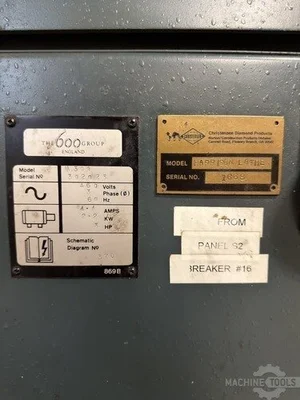

Serial #: 302023
Approx. Shipping Weight: 6' L x 4' W x 5' H
Approx. Shipping Dimensions: 1,500 LBS.
Skidding Fee: Skidding Unavailable
Loading Fee: Loading Included
Specifications
Swing Over Bed: 13"
Distance Between Centers: 40"
Spindle Speeds: 40 to 2500 RPM
Spindle Nose: D1-4
Threading: Inch / Metric
Spindle Motor HP: 3HP
Electrical: 460V / 3PH / 5.5 AMPS
Equipped With
3-Jaw Chuck, Quick Change Tool Post, Live Center, Chuck Guard
Additional Info
Machine available for video or in-person upon request.
