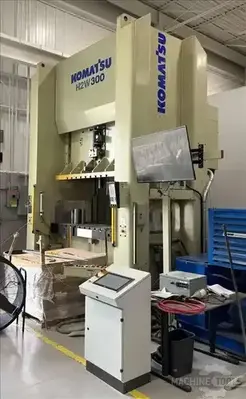

Komatsu H2W300-S Servo Drive Straight Side Double Crank Press
| Tonnage | 330 T | 299.371 t |
| Stroke | 11.8" | 299.72 mm |
| Shut Height | 23.6" | 599.44 mm |
| SPM | 55 strokes/min. | 55 strokes/min. |
| Vari Speed (Yes/No) | Yes | Yes |
| Bed W | 94.5" | 2,400.3 mm |
| Bed L | 47.2" | 1,198.9 mm |
Tonnage Capacity: 330 Ton
Stroke Length: 11.8"
Max. Stroke w/ Cushion: 4.9"
Stroke Speed (Pendulum Mode): 55 SPM
Stroke Speed (Full Rotation Mode): 40 SPM
Die Height: 23.6"
Bolster Area (L-R x F-B): 94.5" x 47.2"
Bolster Thickness: 7.8"
Slide Adjustment: 7.9"
Opening Width in Uprights: 38.6"

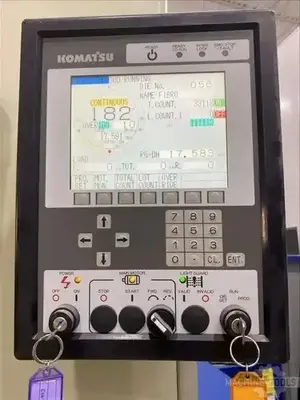

Komatsu SIT 3 Control
Dual Servo Drive Motors
100 Ton Servo Cushion
Hydraulic Overload Protection
Linear Glass Scales
Plunger Guided Ram
Auto Die Height Adjustment
Operator T-Stand
