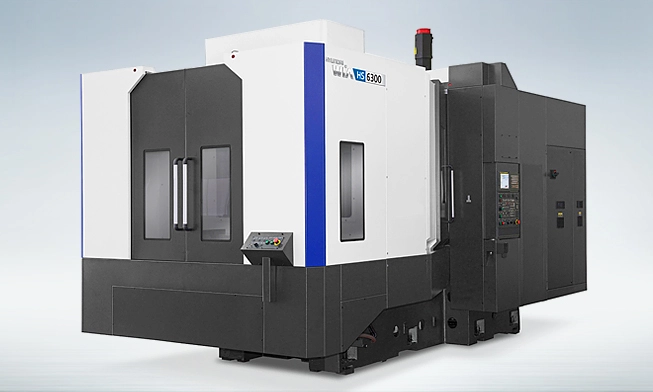

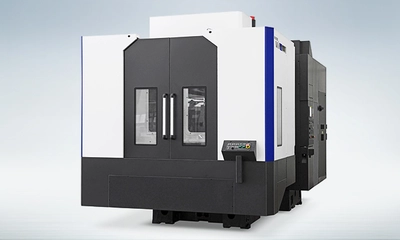

NEW HYUNDAI WIA HS6300

Features

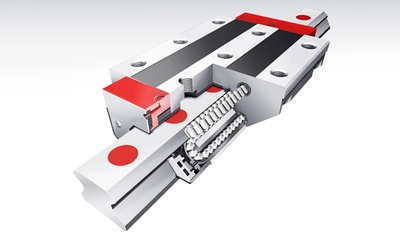

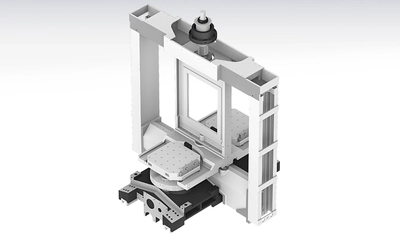

High-speed, High-rigidity Roller Guides on all axes

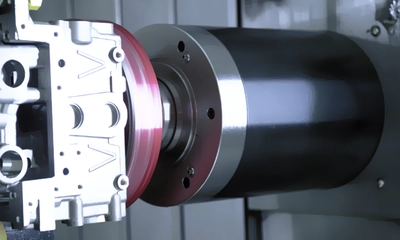

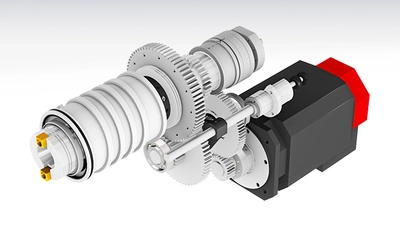

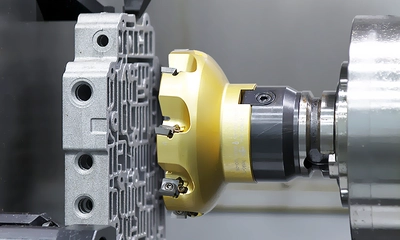

2 Step Gear spindle for heavy duty cutting

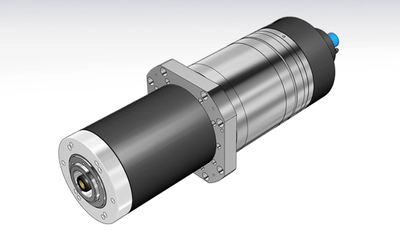

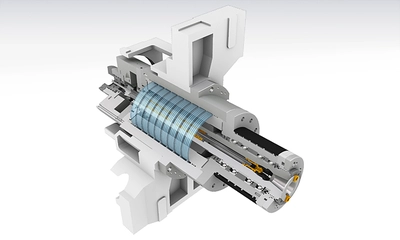

High-speed, Built-in Main Spindle (12,000rpm, optional)
Big Plus Spindle is standard

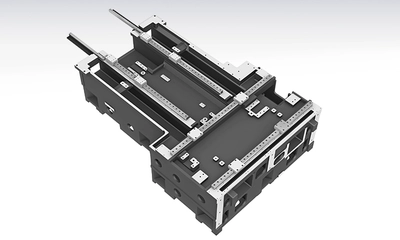

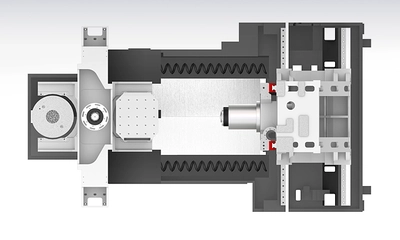

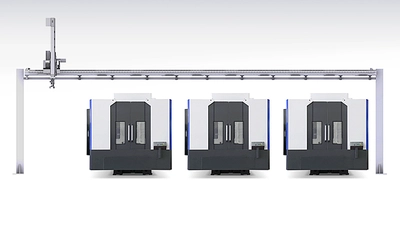

Minimized footprint for Optimal Layout
Specifications
Specifications are subject to change without notice for quality improvement.

In case of any further information, please refer to the machine catalog.

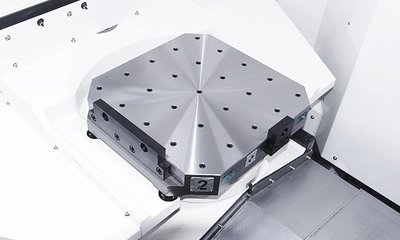

Pallets Size: 24.8″×24.8″ inch
Max. Load Capacity: 2 – 2,646 lbf
Spindle Driving Method: GEAR
Spindle Taper: BBT50
Spindle RPM: 8,000 r/min
Spindle Power: 30/25 HP
Spindle Torque: 576.0/484.5 lbf.ft
Travel(X/Y/Z): 41.3″/34.4″/34.4″ inch
Rapid Feed Rate(X/Y/Z): 1968/1968/1968 in/min
Slide Type: LM

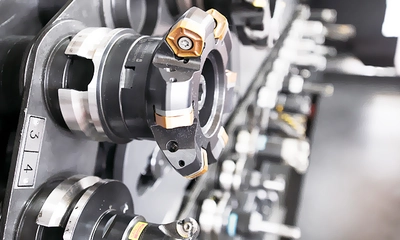

No. of Tools: 40 EA
Tool Change Time
(Chip To Chip): 7.5 sec
No. of Pallets: 2 EA
APC Type: DIRECT TURN
Pallet Change Time: 16 sec
