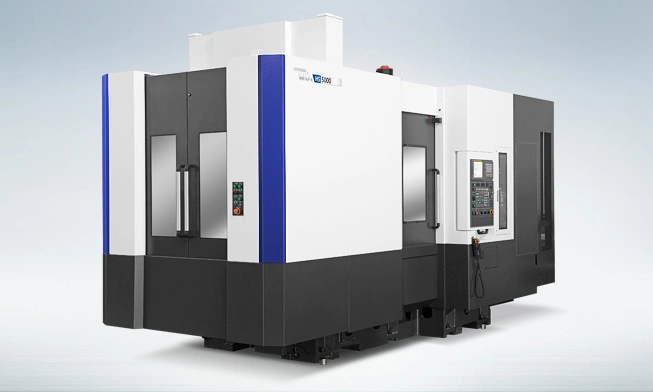

NEW HYUNDAI WIA HS5000

Features

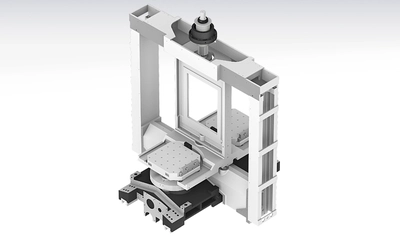

Reverse “T” Type Bed
Best-in-class rapid traverse rate of all axis 60m/min

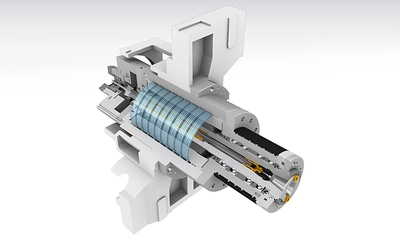

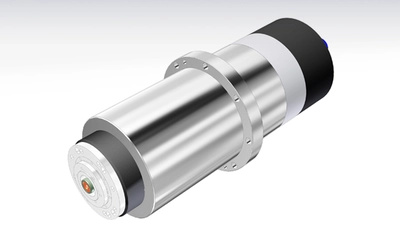

Heavy duty Built-in Spindle
Rotary turn type High Speed APC
Step type bed structure (HS4000M | 5000M/50)

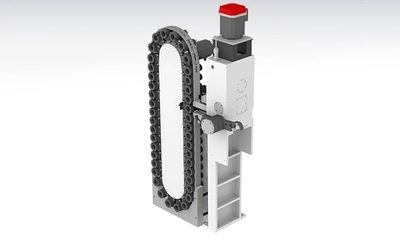

ATC & APC apply servo motor drive (HS4000M | 5000M/50)
Specifications
Specifications are subject to change without notice for quality improvement.

In case of any further information, please refer to the machine catalog.

Pallets Size: 19.7″×19.7″ inch
Max. Load Capacity: 1,102 lbf
Spindle Driving Method: Built in
Spindle Taper: BBT40
Spindle RPM: 15,000 r/min
Spindle Power: 33.5/30 HP
Spindle Torque: 123.1/70.0 lbf.ft
Travel(X/Y/Z): 33.5″/27.6″/29.5″ inch
Rapid Feed Rate(X/Y/Z): 1968/1968/1968 in/min
Slide Type: LM

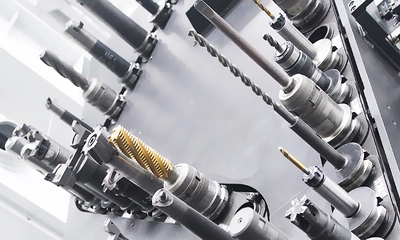

No. of Tools: 40 EA
Tool Change Time
(Chip To Chip): 3.8 sec
No. of Pallets: 2 EA
APC Type: DIRECT TURN
