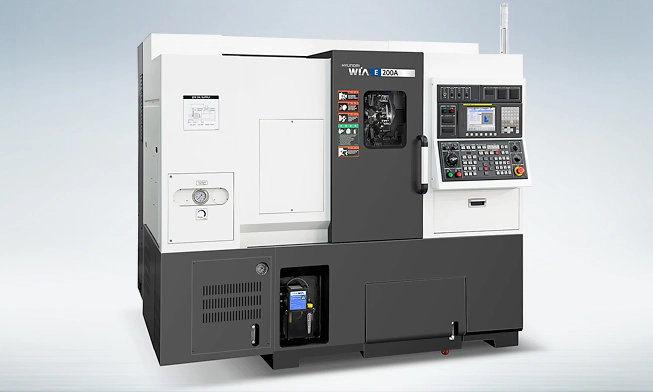

NEW HYUNDAI WIA E200MA

Features
45° slanted one-piece rigid bed structure
Minimal thermal distortion
Machine structure designed to maximize productivity
Best in class rapid traverse rate : 36m/min (E200A/MA/C/MC)
The most reliable high speed servo turret : 0.1sec/step
Box Guideways to handle heavy cutting (E200PA/PC)
Compact design, able to install within a limited space.
Ergonomic design allows convenient access to chuck and tool
Specifications (metric)
Specifications are subject to change without notice for quality improvement.

In case of any further information, please refer to the machine catalog.
Specifications are subject to change without notice for quality improvement.

In case of any further information, please refer to the machine catalog.

Max Turning Dia: 11.4″ inch
Max Turning Length: 10″ inch
Chuck Size: 6″ inch
Driving Method: Belt
Spindle RPM: 6,000 r/min
Spindle Output: 14.75/20 hp
Spindle Torque: 38.7/68.2 ft.lb
Travel(X/Z): 8.3″ / 13″ inch
Rapid Travel(X/Z): 1,417/1,417 in/min
Slide Type: LM
No. of Tools: 12 EA
Tool Size (OD/ID): 0.75″/ 1.25″ inch
Milling Tool Speed: 4,500 r/min
