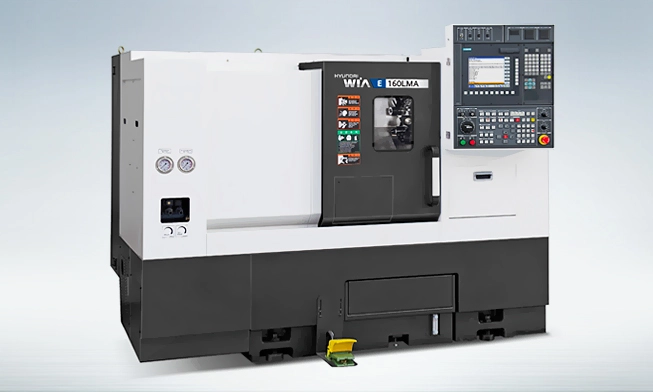

NEW HYUNDAI WIA E160A

Features
45° slanted one-piece rigid bed structure
Minimal thermal distortion
Machine structure designed to maximize productivity
Best in class rapid traverse rate : 30m/min
The most reliable high speed servo turret : 0.1sec/step
Environmental friendly, separate coolant and lubrication design
Compact design, able to install within a limited space.
Ergonomic design allows convenient access to chuck and tools

Max Turning Dia: 11″ inch
Max Turning Length: 11.8″ inch
Chuck Size: 6″ inch
Driving Method: Belt
Spindle RPM: 6,000 r/min
Spindle Output: 10/15 HP
Spindle Torque: 26.4/51.6 lbf.ft
Travel(X/Z): 6.5″/13″ inch
Rapid Travel(X/Z): 30/30 m/min
Slide Type: LM
No. of Tools: 12 EA
Tool Size: 0.8″/1.3 inch
