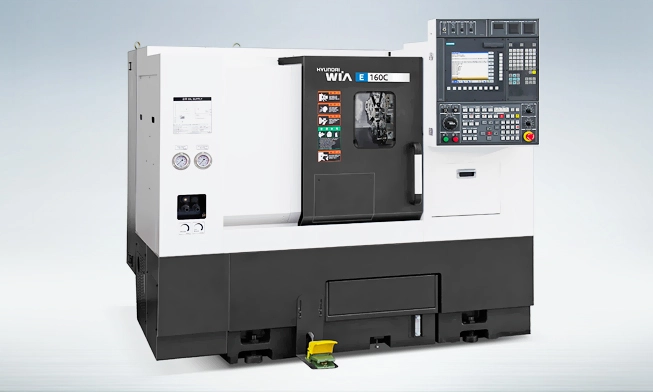

NEW HYUNDAI WIA E160C

Hyundai Wia E160C
Features
45° slanted one-piece high rigidity bed structure
Least heat distortion, the most stabilized unit structure
Able to extend, and high productive machine structure
Unbeatable rapid travel speed: 30m/min

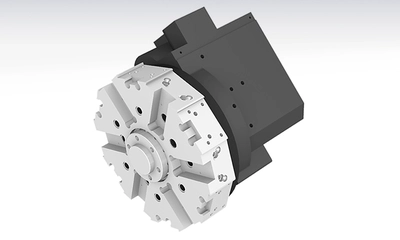

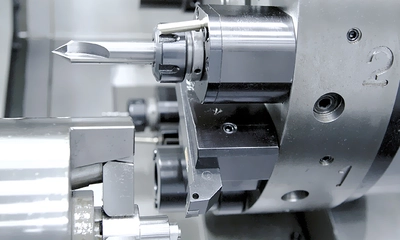

The most reliable high speed servo turret is adopted: 0.1sec/step
Environmental friendly, separate coolant and lubrication design
Compact design, able to install within a narrow space.
Ergonomic design allows convenient access to chuck and tool
Specifications
Specifications are subject to change without notice for quality improvement.

In case of any further information, please refer to the machine catalog.

Max Turning Dia: 11 in
Max Turning Length: 11 in
Chuck Size: 8″ inch

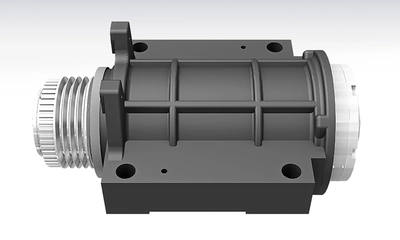

Driving Method: Belt
Spindle RPM: 4,000 r/min
Spindle Output (Max/Cont.): 14.75/10 hp
Spindle Torque (Max/Cont.): 47.5/93 ft.lb
Travel(X/Z): 6.5/13 in
Rapid Travel(X/Z): 1181/1181 in/min
Slide Type: LM
No. of Tools: 10 EA
Tool Size (ID/OD): 1/1.25 in
