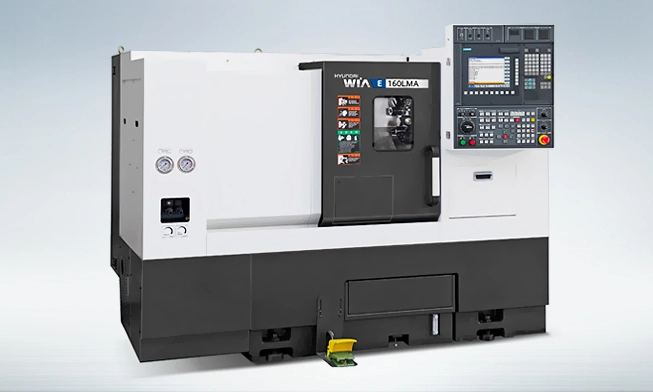

NEW HYUNDAI WIA E160A

Features

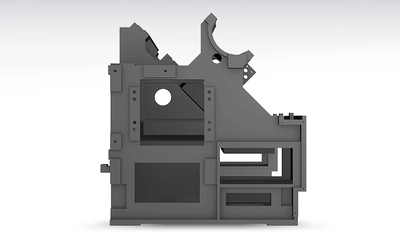

45° slanted one-piece rigid bed structure
Minimal thermal distortion
Machine structure designed to maximize productivity
Best in class rapid traverse rate : 30m/min

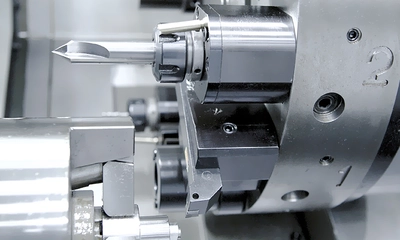

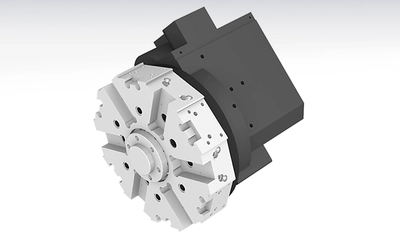

The most reliable high speed servo turret : 0.1sec/step
Environmental friendly, separate coolant and lubrication design

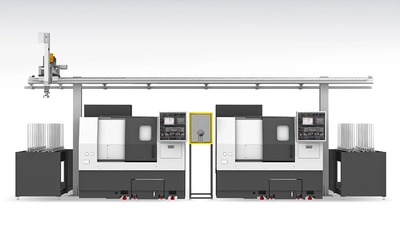

Compact design, able to install within a limited space.

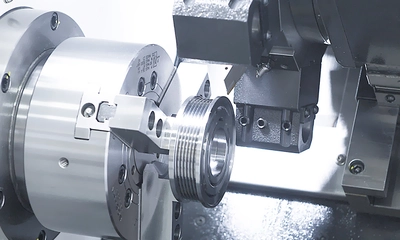

Ergonomic design allows convenient access to chuck and tools
Specifications
Specifications are subject to change without notice for quality improvement.

In case of any further information, please refer to the machine catalog.

Max Turning Dia: 11″ inch
Max Turning Length: 11.8″ inch
Chuck Size: 6″ inch
Driving Method: Belt

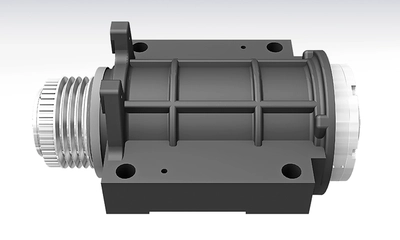

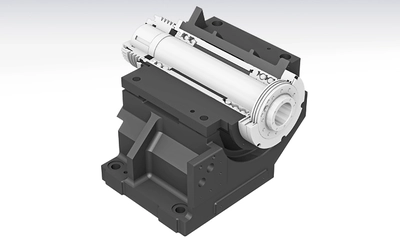

Spindle RPM: 6,000 r/min
Spindle Output: 10/15 HP
Spindle Torque: 26.4/51.6 lbf.ft
Travel(X/Z): 6.5″/13″ inch
Rapid Travel(X/Z): 1181 / 1181 m/min
Slide Type: LM
No. of Tools: 12 EA
Tool Size: 0.75″/1.25 inch
