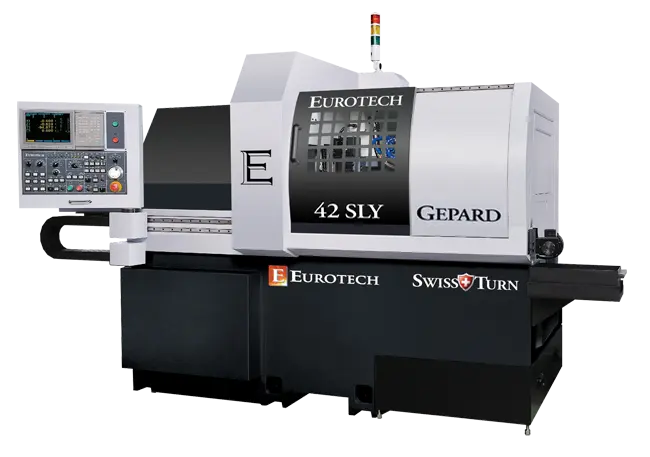

NEW EUROTECH GEPARD 42 SLY

Up to 7-axis, up to 42mm swiss-type CNC auto lathe w/gang static and driven tooling, Y-axis, 2 C-axes, and sub-spindle
[pdf-embedder url=”https://newusedmachines.com/ca/wp-content/uploads/2019/11/swissturn_gepard-brch_6-3-11.pdf”]

Model: 20 SLY
Max. Turning Diameter: 0.78”)
Max. Machining Len. per chucking: 9.84”
Max. Drilling Diameter: 0.59″
Max. Tapping Diameter: 0.47″
Number of Tools: 6
Dimension: 0.62″ x 0.62″ x 4.7″
Number of Tools: 4
Dimension: ER20
Number of Tools: 4
Dimension: ER20
Speed: 6,000 rpm
Number of Tools: 3
Dimension: ER20
Speed: 6,000 rpm
Number of Tools: 4 + 4
Dimension: ER20
Number of Tools (Slide 1): 3
Dimension: ER16
Speed: 3,000 rpm
Number of Tools (Slide 2): 4
Dimension: ER20
Spindle Hole Diameter: 0.51”
Angular Movement: Full C-axis
Speed: 6,000 rpm
Horsepower: 5 HP
X1, Y1, Z1, X2, Z2: 1,181 IPM
