• FULL 5.5” of “Y” AXIS STROKE
STANDARD FEATURES
Fanuc EASY Plus Control with Custom Operator Panel
Tool load monitoring system.
10.4” Graphics parts cutting display.
Extended editing functions; merge, change, move, copy.
32-bit CPU high-speed Pentium microprocessor

CNC system.
3,000 RPM main spindle speed.
40 horsepower wide range constant output
0.3 seconds/station turret indexing
945 IPM B-axis rapid traverse.
945 IPM Z -axis rapid traverse.
709 IPM X -axis rapid traverse.
295 IPM Y -axis rapid traverse.
12” 3-jaw chuck on main spindle.
Rigid tapping; main
High pressure coolant system.
Set of static.
Programmable tool probe system.
16 Station Turret
C-axis control on main
Air conditioned electronics cabinet.
Chip conveyor.
Programmable parts catcher
Eurotech Gap Elimination Ladder Logic for faster cycle time
Free lifetime programming classes
Free online phone support for both maintenance and programming
EUROTECH FANUC 32i-T CONTROL

STANDARD FEATURES
32-bit hi-speed Pentium CPU
10.4” color LCD display with extensive operator’s panel
Full keyboard
Graphic parts cutting display
Background editing
Extended editing functions

(copy, move, merge, change)
Free position turret indexing
Tool geometry offsets – 64 pairs
Part program storage capacity – 1054 ft.
Minimum input resolution – .0001”
Absolute/incremental dimensioning system
Decimal point programming
Direct drawing input. (A=angle, C=chamfer, R=radius)
Radius designation for circular

interpolation
Sub-program nesting up to four deep
Sudden interruption protection (crash protection)
Canned cycles: turning, drilling, and threading (G80)
Multiple repetitive cycles (G70, G71, G72, and G73)
By-pass feed and speed override w/M-code
Manual rapid traverse
Manual pulse generator
Programmable data input (G10)
Straight, taper, and face threading
Thread pull out
Constant cutting speed control (G96)
Direct spindle speed RPM designation
Work coordinate system (G54-G59)
Program input of offset amount
Tool nose radius compensation (G40, G41, 42)
Workshift
Call of Macro programs (G65-G66)
Custom Macro A and B
B-axis offset
125 registered programs
Up to three M-codes per line
Six additional M-codes
Program protect
Chuck and tailstock barrier
Preset parts counter
Run time, cycle time, and parts counter display
Preventive maintenance screen
RS232C & PCMCIA (serial) interface
Error detect
Advanced diagnostic functions
Display of axis and spindle motor current loads
Alarm message system
SBS Tool Load Monitoring

Specifications

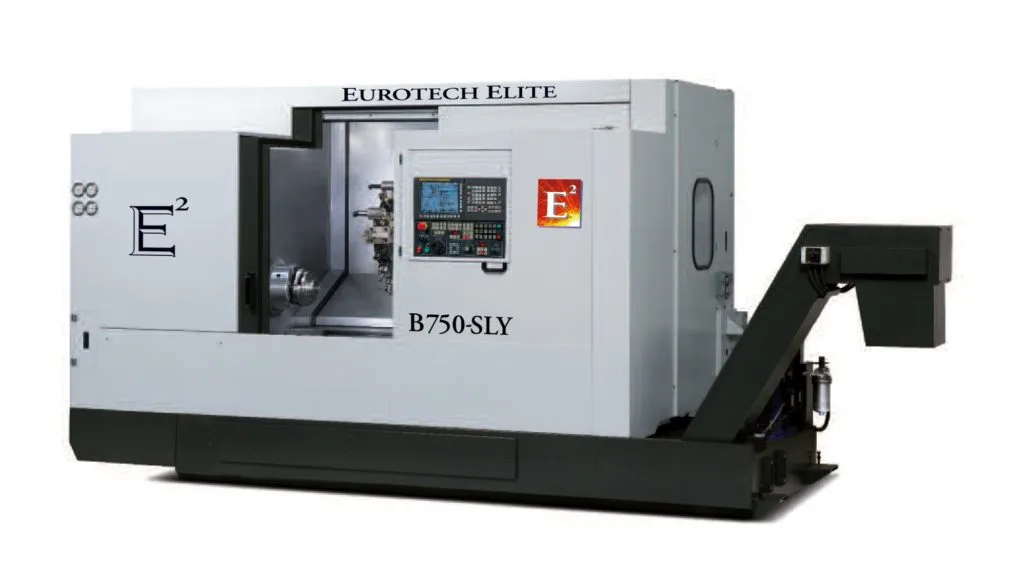

Model: B750SLY
Maximum bar capacity: 4.02”
Maximum machining diameter: 18.4”
Maximum machining length: 29.5”
Maximum swing over diameter (bench): 26.7”
Spindle Bore: 4.3”
Spindle speed range: 3,000 RPM
Spindle motor: 40 HP
Motor type: Wide range
Spindle nose: ASA A2-8
Y-axis stroke: 5.5”
Bar capacity: 1.77”
Spindle bore: 2.15”
Spindle speed range (infinitely variable): 5,000 RPM*
Spindle drive motor (variable speed) max rating: 33HP
Spindle nose: 5” Flat Nose
Slide movement (B-axis): NC control
Slide stroke (B-axis): 35”
Rapid traverse rate (B-axis): 945 IPM
Spindle positioning: programmable M16 to .001 deg
Turret indexing time 1 station: 0.3 sec/pos. (1-station)
Turret indexing type: Bi-directional
Number of stations: 16
Number of positions: 16
Drive motor – max. rating (Fanuc): 23 HP
Speed range (infinitely variable): 6,000 RPM
Engagement time: immediate
Spindles: Main and Sub
Spindle positioning: Full “C”
Minimum command increment: 0.001 degree
Positioning system: Spindle motor
Degree of movement: Programmable
Rapid speed rate: 100 RPM
Voltage required: 400 volt AC, 3-phase
Air required: 80 psi @ 4 CFM
Amperage Draw: 75 Amp.
Width: 80”
Height: 88”
Length with chip conveyor: 200”
Machine weight with chip conveyor: 16,755 lbs.
Z axis repeatability accuracy: +/-.00004”
X axis positioning accuracy: +/-.00006”
C axis positioning accuracy: +/-.00005°
C axis repeatability: +/-.00001°
