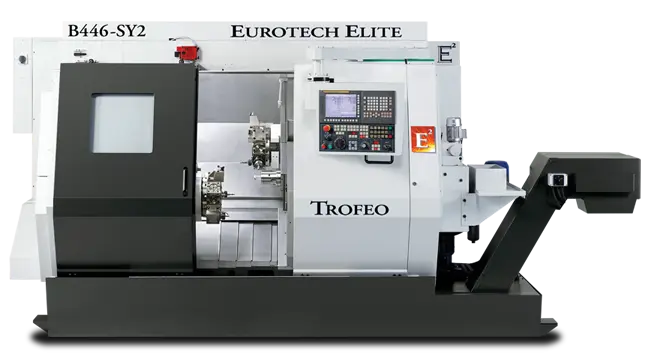

High-output 1-3/4 – 2-5/8″ universal turn/mill centers with 20 HP spindle, Fanuc 31iTT, 2 12-station turrets, barfeed interface, C-axis and depending on model, 5-hp live tooling, programmable sub-spindle, 2Y-axis, fully automated parts handling.
[pdf-embedder url=”https://newusedmachines.com/ca/wp-content/uploads/2019/11/trofeo-mulitpla_brochure_7-23-14.pdf”]
Model: B465 SY2 B446 SY2
Bar Capacity: 2.56” 1.77″
Chuck Diameter: 8”
Max. length between spindle faces: 37.5″
Max. swing over Diameter: 20″
Main Spindle: Main Spindle
Max Speed: 4000 rpm 5000 rpm
Spindle Nose: 6″ 5″
Spindle Bore: 3.15″ 2.17″
Chuck Diameter: 8″
Horsepower: 35 HP 20 HP
C axis: min. programmable value: 0.001 degrees
Sub Spindle: Sub Spindle
Max Speed: 5000 rpm
Spindle Nose: 5″
Spindle Bore: 2.17″
Chuck Diameter: 6″
Horsepower: 15 HP
C axis: min. programmable value: 0.001 degrees
Offset Stroke: 4.72″
B-axis: Stroke – rapid traverse: 26.35″
Upper Turret (1-left): Upper Turret (1-left)
Lower Turret (3): Lower Turret (3)
No. of Stations / Max Number of Tools: 12 / 192
Turret indexing ( 1 pos ): 0.15 sec
No. of live tooling stations / Max Number of Tools: 24 / 48
speed std. Max Speed: 4000 rpm / 6000 rpm
X1, X2, X3 axis: stroke – rapid traverse: 5 geared
Z1, Z2 axis: stroke – rapid traverse: 6.7″
Z3 axis: axis: stroke – rapid traverse: 25 – 21.25″
Y1, Y2, Y3 axis: stroke – rapid traverse: 3.54″
Tank Capacity: 120 gal
Motor rating of 4 electropumps: 5 HP
Machine with chip conveyor: 173″ x 85″ x 89″
Spindle center height: 42″
Machine weight with conveyor: 17900 lbs 17400 lbs
