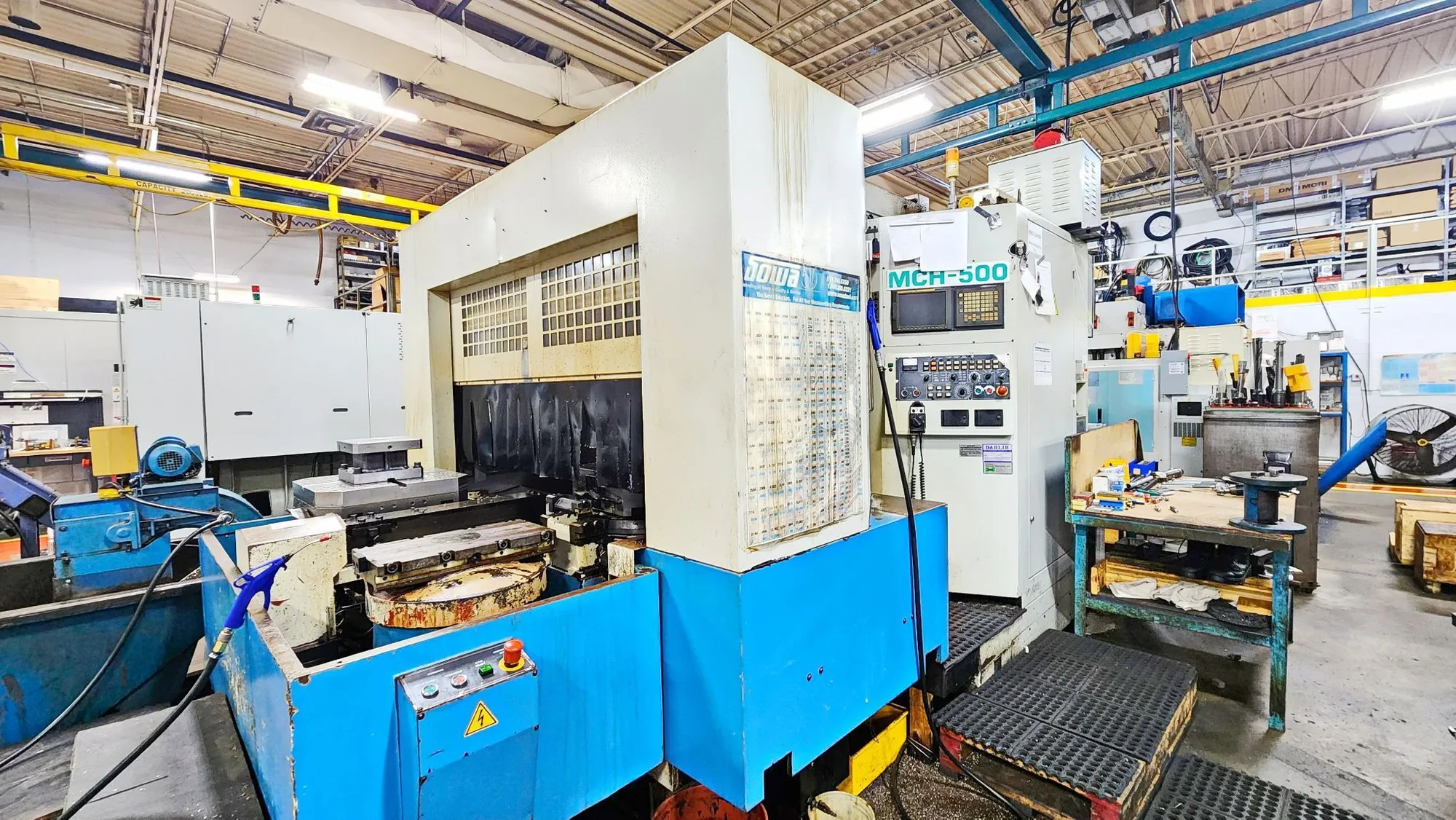

2005 Dahlih MCH-500 Horizontal CNC Machining Center, Dual Pallets, Automatic Pallet Changer, B-Axis Rotary Table, Spindle Cooling Device, Heat Exchanger, Chip Conveyor
| X-Axis | 29.53" | 750.06 mm |
| Y-Axis | 26.77" | 679.96 mm |
| Z-Axis | 23.62" | 599.95 mm |
| Power | 24.8 hp | 18.5 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 60 | 60 |
| Taper | NT50 | NT50 |
| Pallet-W | 19.69" | 500.13 mm |
| Pallet-L | 19.69" | 500.13 mm |
| Max Table Load | 1,760 lb | 1,760 lb |
| # Axis | 3 | 3 |
| Rapid Traverse (X/Y/Z) | 590 in/min. | 590 in/min. |
| Made In | Taiwan | Taiwan |
| Control | CNC (Fanuc 21iMB) | CNC (Fanuc 21iMB) |
| Dimensions | 193.7" X 124.8" X 116.5" | 193.7" X 124.8" X 116.5" |
| Weight | 33,000 lb | 33,000 lb |
Dual pallets
Automatic pallet changer
B-axis rotary table (1° indexing)
Spindle cooling device
Heat exchanger
Chip conveyor
Auto-power off
