NEW Galt Electric GDP1000-4-404T-K

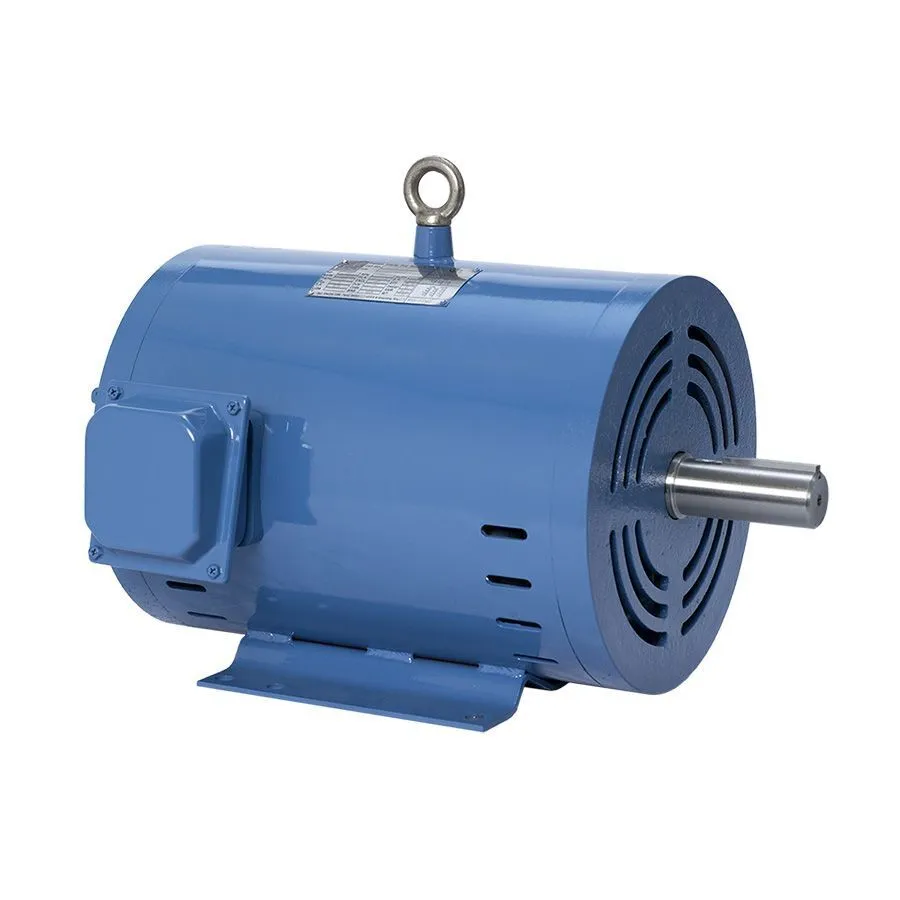

GDP1000-4-404T-K - 100HP, 1800RPM, 3-Phase, 208/230/460V, 60Hz, 404T, open drip proof AC motor. Galt Electric offers its latest electric motors, including TEFC and ODP enclosures in cast iron, rolled steel, and stainless steel (TEFC only). Galt Electric motors are engineered to last in an industrial environment. Our motors will keep your operations up and running, with a precision balanced aluminum rotor, oversized bearing, inverter duty Class F insulation, better fit and finish, and many other features all backed by a 3 year warranty. Our engineering prepares for the unexpected, so you don't have to.

Model: GDP10004-404T-K
Brand: GALT ELECTRIC
Product Condition: New
Warranty: 3 Years
Full Load Torque: 296
Phase: Three Phase
Service Factor: 1.25
Insulation Class: F
Duty Cycle: Continuous
Power Factor: 0.87
Efficiency: 95.4%
C Dimension: 33.3
Horsepower Rating: 100 HP
Synchronous RPM: 1800 RPM
Frame Size: 404T
Motor Enclosure Type: Open Drip Proof (ODP)
Rated Voltage: 208 V, 230 V, 460 V
Construction: Cast Iron
Rated Input Frequency: 60 Hz
Rated Amps: 112 A, 224 A, 246 A
Series: GDP
