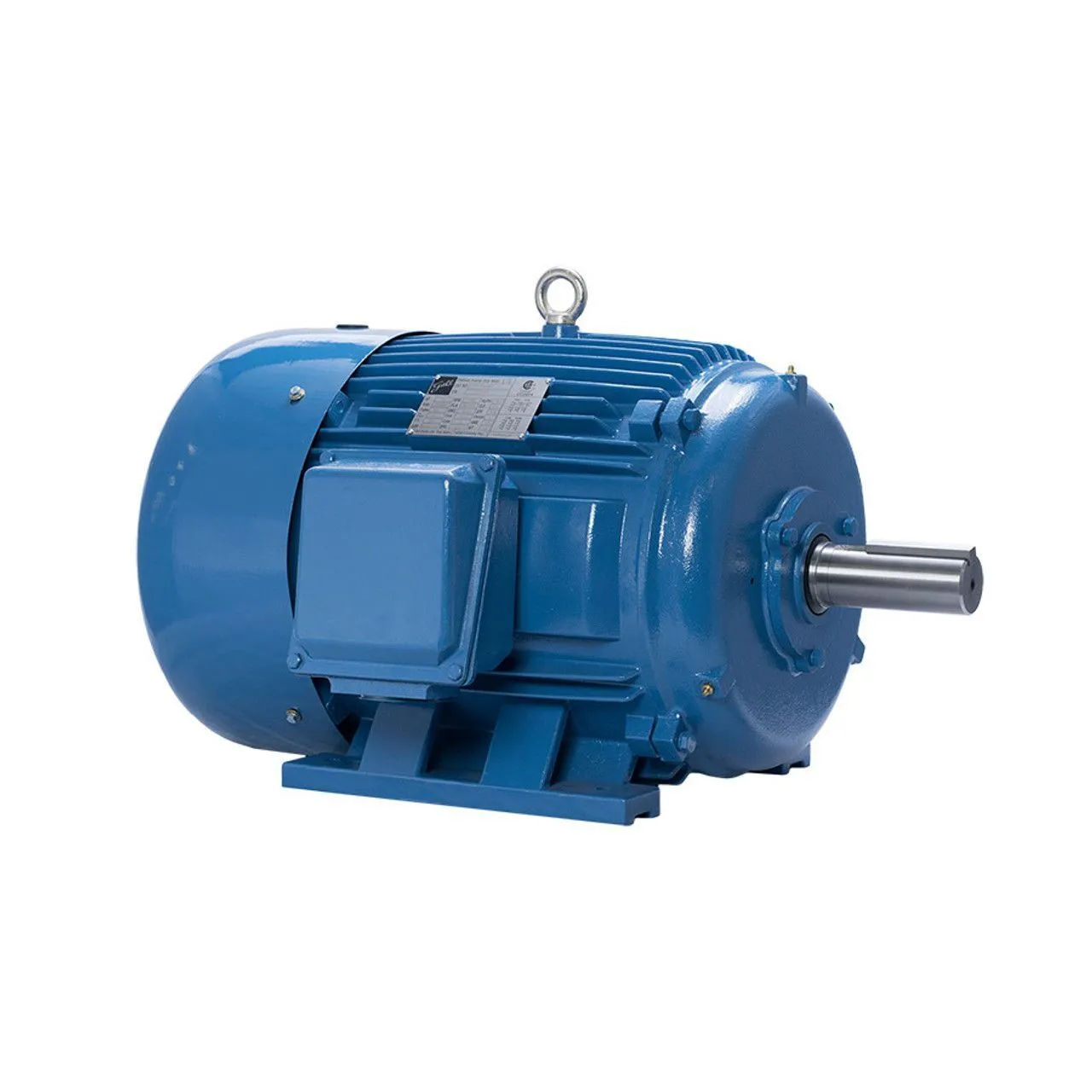

NEW Galt Electric GPT0750-2-365TS-K

GPT0750-2-365TS-K - 75HP, 3600RPM, 3-Phase, 208/460V, 60Hz, 364/5TS, totally enclosed fan cooled AC motor. Galt Electric offers its latest electric motors, including TEFC and ODP enclosures in cast iron, rolled steel, and stainless steel (TEFC only). Galt Electric motors are engineered to last in an industrial environment. Our motors will keep your operations up and running, with a precision balanced aluminum rotor, oversized bearing, inverter duty Class F insulation, better fit and finish, and many other features - all backed by a 3 year warranty. Our engineering prepares for the unexpected, so you don't have to.

Model: GPT0750-2-365TS-K
Brand: GALT ELECTRIC
Product Condition: New
Warranty: 3 Years
Horsepower Rating: 75 HP
Synchronous RPM: 3600 RPM
Rated RPM: 3600 RPM
Frame Size: 364/5TS, 364TS, 365TS
Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
Full Load Torque: 110.69
Ambient Temperature Rating: 40 °C
Rated Voltage: 230 V, 460 V
Phase: Three Phase
Service Factor: 1.25
Insulation Class: F
Duty Cycle: Continuous
Power Factor: 0.91
Efficiency: 93.6%
Construction: Cast Iron
C Dimension: 31.4
Rated Input Frequency: 60 Hz
Rated Amps: 82.5 A, 165 A
Series: GPT
