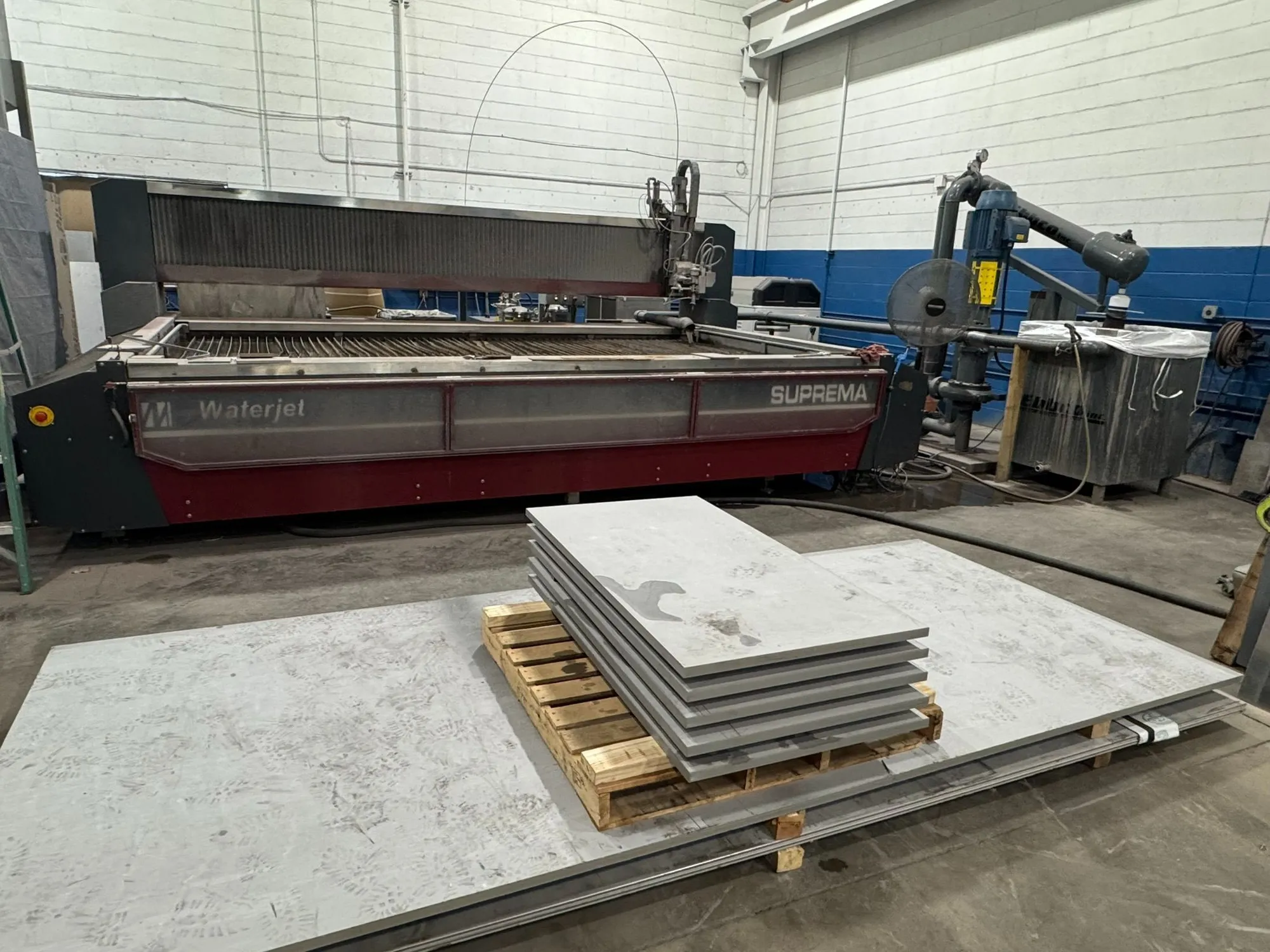

USED 2016 WATERJET CORP SUPREMA DX 612
Overview
Description
Used 2016 Waterjet Corp Suprema DX 612 CNC waterjet cutter: 6.5' x 13.5' table, 3-axis+ head with automatic bevels up to 45°. Features ESA S500 CNC control, Lantek software, 60,000 PSI pump, Ebbco abrasive removal system, 100 H.P. intensifier
Specifications
| Pump Output | 60,000 PSI | 4,136.8 bar |
|---|---|---|
| X | 13.5' | 4,114.8 mm |
| Y | 6.5' | 1,981.2 mm |
| Z | 12" | 304.8 mm |
| Table Size-W | 6.5' | 1,981.2 mm |
| Table Size-L | 13.5' | 4,114.8 mm |
| Power | 100 hp | 74.6 kW |
| Control | CNC (ESA) | CNC (ESA) |
Brand: Waterjet Corp
Model: DX 612
Cutting area: 13.5' x 6.5'
Z axis travel: 12"
Rapid speed: 0-69 FPM
Equipped With
KMT Streamline SLV-V-100 H.P. 60,000 PSI intensifier
2,200 Lb. pressurized abrasive tank with hopper
ESA S500 CNC control
Lantek Expert Cut Plus software with automatic nesting
3-axis+ head with automatic taper control bevels up to 45 degrees
Increased Z axis travel to 12"
R612 Ebbco automatic abrasive removal system
Ebbco WJF-60,000-IL chiller
Ebbco closed loop filtration system
Splash guard
Machine sold As-Is Where-Is
