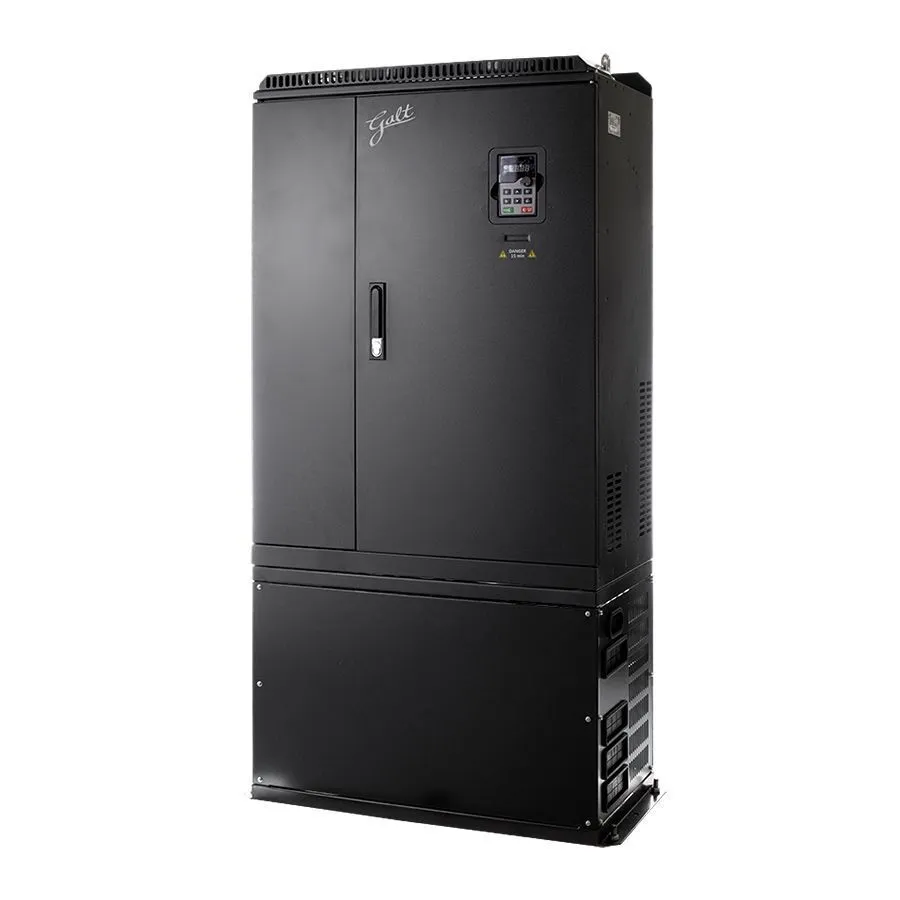

G340-08600UL-01 - 700HP, 480V, 3-Phase VFD with IP20 enclosure and detachable keypad. The G300 series is a high-performance, high-precision VFD compatible with asynchronous and permanent magnet synchronous motors. The G300 series provides wide voltage ranges and several different methods (MODBUS, PROFIBUS, CAN, and ethernet) to communicate with the VFD. The G300 relies upon a 32-bit DSP and utilizes an advanced vector control algorithm to provide high-performance and high-precision motor control. It can also be used with the GRKP300LCD keypad for a more diverse set up.
| Capacity | 860 A | 860 A |
Model: G340-08600UL-01
Brand: GALT ELECTRIC
Product Condition: New
Warranty: 3 Years
Horsepower Rating: 600 HP, 700 HP
HP Rating @ 120% OL: 700 HP
HP Rating @ 150% OL: 600 HP
Rated Amps: 720 A, 860 A
Amp Rating @ 120% OL: 860 A
Amp Rating @ 150% OL: 720 A
Rated Input Frequency: 60 Hz
Output Voltage: 460 V
Output Amperage Rating: 860 A
Phase Rating: 3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque: Variable Torque/Constant Torque
Phase: Three Phase
Enclosure Rating: IP 20
Series: G300
Rated Voltage: 460 V
Height: 66.93 in
Width: 24.41 in
Depth: 22.05 in
