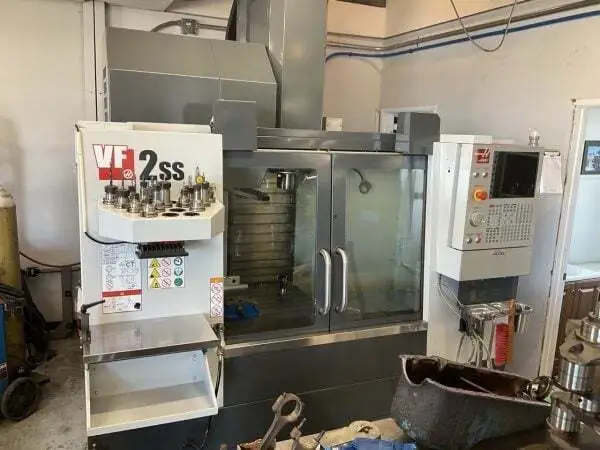

Haas VF-2SS VMC, 2020 model available with low hours. Features a 30"x16"x20" XYZ travel, 30 hp motor, 12,000 RPM, and 24-tool ATC. Comes with Haas CNC control, probe, and TSC readiness. Ideal for precision machining needs.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
Table Size: 36″ x 14″
Max Weight On Table: 1,500 LBS
X Axis Travel: 30″
Y Axis Travel: 16″
Z Axis Travel: 20″
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Rapids (X,Y,Z): 1400 IPM
ATC: 30
Equipped With:
Haas CNC Control
Through Spindle Coolant Ready
Probe
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
