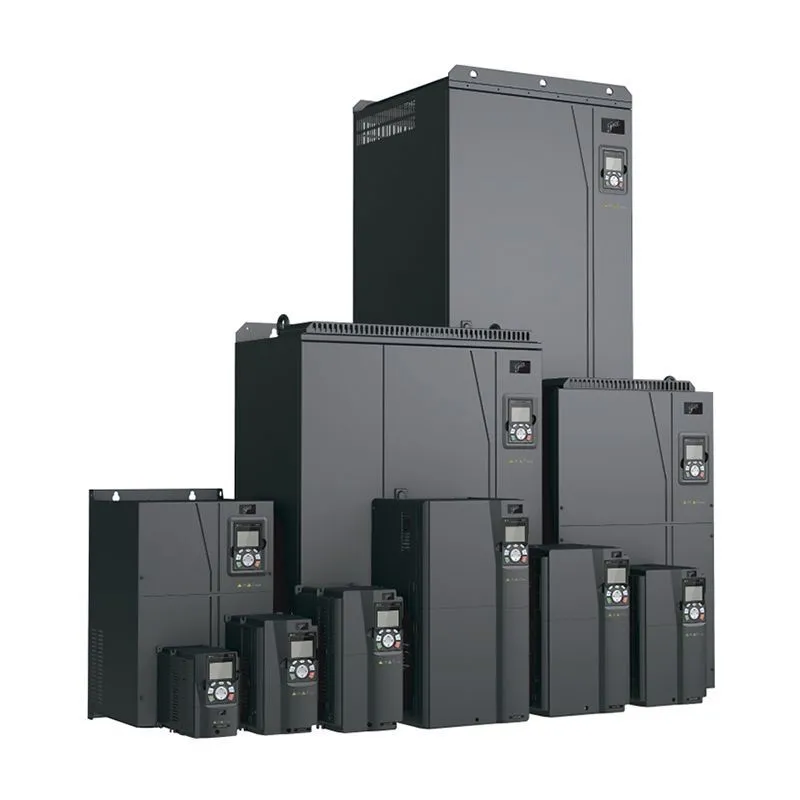

G540-02600UL-03 - 200HP, 480V, 3-Phase VFD with IP20 enclosure and external keypad. Galt G500 variable frequency drives are general-purpose industrial VFDs meant for use in pumps, fans, compressors, and many other applications. Sized for variable torque 120% overload, they can be derated for constant torque 150% or 200% overloads as well as higher elevations or ambient temperatures.
| Capacity | 260 A | 260 A |
Model: G540-02600UL-03
Brand: GALT ELECTRIC
Product Condition: New
Warranty: 3 Years
HP Rating @ 120% OL: 200 HP
HP Rating @ 150% OL: 150 HP
Amp Rating @ 120% OL: 260 A
Amp Rating @ 150% OL: 215 A
Rated Voltage: 460 V, 480 V
Output Amperage Rating: 215 A
Phase Rating: 3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque: Variable Torque/Constant Torque
Phase: Three Phase
Enclosure Rating: IP 20
Series: G500
Ambient Temperature Rating: 40 °C
Rated Amps: 260 A
Horsepower Rating: 150 HP, 200 HP
Frame Size: 7
Height: 34.30 in
Width: 19.70 in
Depth: 14.20 in
