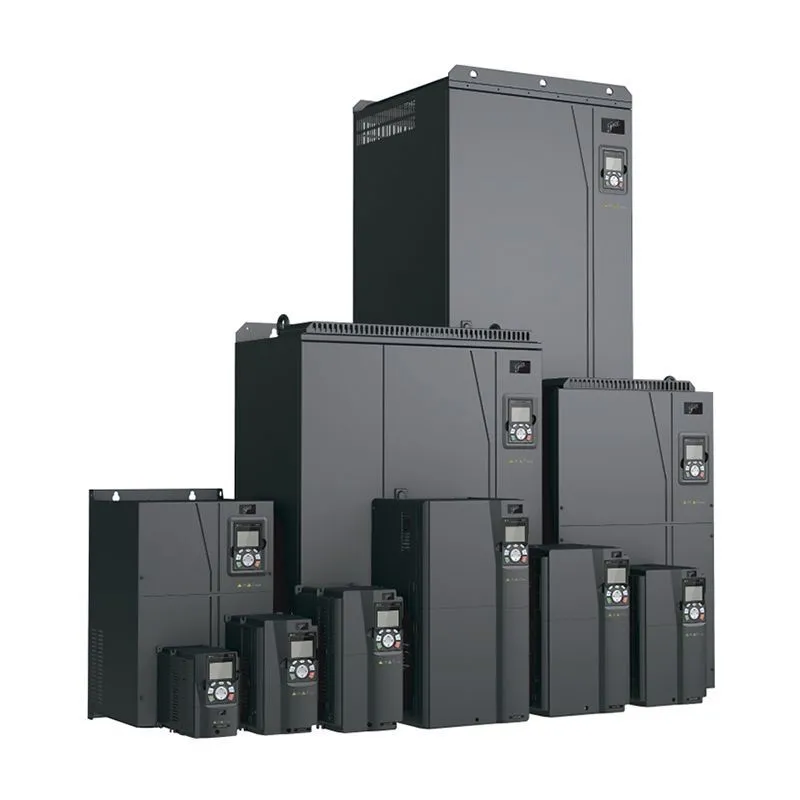

G540-02150UL-01 - 175HP, 480V, 3-Phase VFD with IP20 enclosure, modbus communication protocol, and external keypad. Galt G500 variable frequency drives are general-purpose industrial VFDs meant for use in pumps, fans, compressors, and many other applications. Sized for variable torque 120% overload, they can be derated for constant torque 150% or 200% overloads as well as higher elevations or ambient temperatures.
| Capacity | 215 A | 215 A |
Model: G540-02150UL-01
Brand: GALT ELECTRIC
Product Condition: New
Warranty: 3 Years
HP Rating @ 120% OL: 175 HP
HP Rating @ 150% OL: 150 HP
Amp Rating @ 120% OL: 215 A
Amp Rating @ 150% OL: 180 A
Rated Voltage: 460 V, 480 V
Output Amperage Rating: 180 A
Phase Rating: 3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque: Variable Torque/Constant Torque
Phase: Three Phase
Enclosure Rating: IP 20
Series: G500
Ambient Temperature Rating: 40 °C
Rated Amps: 215 A
Horsepower Rating: 150 HP, 175 HP
Frame Size: 6(B)
Height: 26.80 in
Width: 12.80 in
Depth: 14.40 in
