| X Axis | 40" | 1,016 mm |
| Y Axis | 24" | 609.6 mm |
| Z Axis | 24" | 609.6 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 47.2" | 1,198.9 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc 18i-MB CNC Control) | CNC (Fanuc 18i-MB CNC Control) |
| Dimensions | 118″ x 99″ x 115″ High | 118″ x 99″ x 115″ High |
| Weight | 14770 lbs | 14770 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

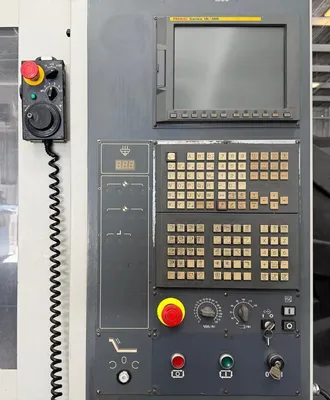

Fanuc 18i-MB Series CNC Control
Linear Ways Construction
30 Station Side Mounted Automatic Tool changer
PCMCIA Card Slot
RS-232 Port
Rigid Tapping
Coolant System
Table:
Length: 47.2″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 0.70″ X 3.93″
Max Weight on Table: 2000 lbs
Travels:
X-Axis: 40″
Y-Axis: 24″
Z-Axis: 24″
Rapid Traverse Rates X & Y Axis: 1692 IPM
Rapid Traverse Rates Z Axis: 1417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.- Max.): 3.94″ – 27.95″
Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 15.43 lbs
Max Tool Dia: 3.35″ – 4.92″
Max Tool Length: 11.81″
Tool Changing Time (Chip to Chip): 4 Seconds
General:
Air Required: 80 psi, 4 scfm
Power: 220v / 25 kva / 3-Phase
Overall Dimensions: 118″ x 99″ x 115″ High
Weight: 14,770 lbs
12000 RPM High Precision Spindle

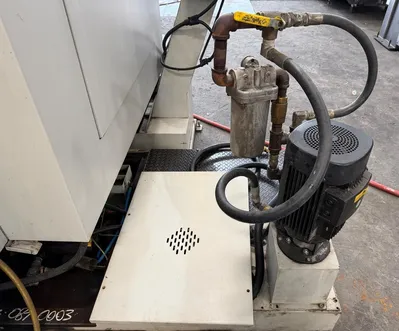

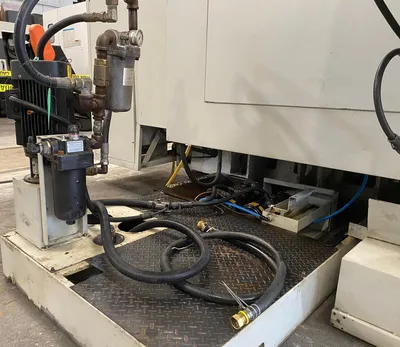

Through Spindle Coolant
Chip Conveyor
