USED 2025 IGREK FR 3500 TITAN

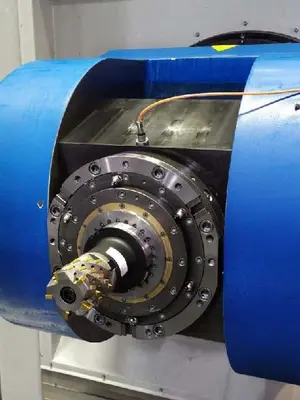

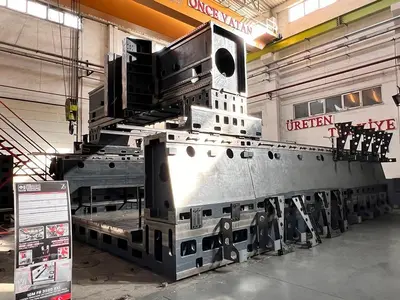

High Performance Aerospace, Heavy Industry, Steel and Titanium MachiningNew MachineMachine Structure–Casting Excellence100% Cast Iron Body StructureFull cast iron construction for maximum rigidity, damping, and thermal stability.With massive table and dual side walls, reinforced side walls and T-slot table structure.FR 3500 Titan is The Ultimate CNC Milling SolutionFR3500 TITAN ensures maximum power, precision, and productivity.Milling Head Technical Features:High torque, full mechanical, simultaneous A&C axis for heavy duty milling.Max Torque(S1): 1000 NmMax Power: 37 kWMaxSpeed: 4000 rpmSpindle Taper: DIN 69871 ISO50Coolant Through Spindle: 70 bar –60 l/minExternal Coolant: 20 bar –30 l/minA-Axis: +30°/ -115°C-Axis: +400°/ -400°Index Position: InfiniteMass: 1,220 kg

Manufacturer: IGREK
Model: FR 3500 Titan
Year: 2025
Condition: Used
Stock Number: 5654261
Spindle speeds: 4,000 rpm
X axis travel: 8,400 mm
Y axis travel: 3,460 mm
Z axis travel: 1,600 mm
Spindle power: 37 kW
Spindle torque: 1,000 Nm
A axis: +30° / -115°
C axis: +400° / -400°
Spindle head positioning: infinite
Spindle taper: DIN 69871 ISO 50
