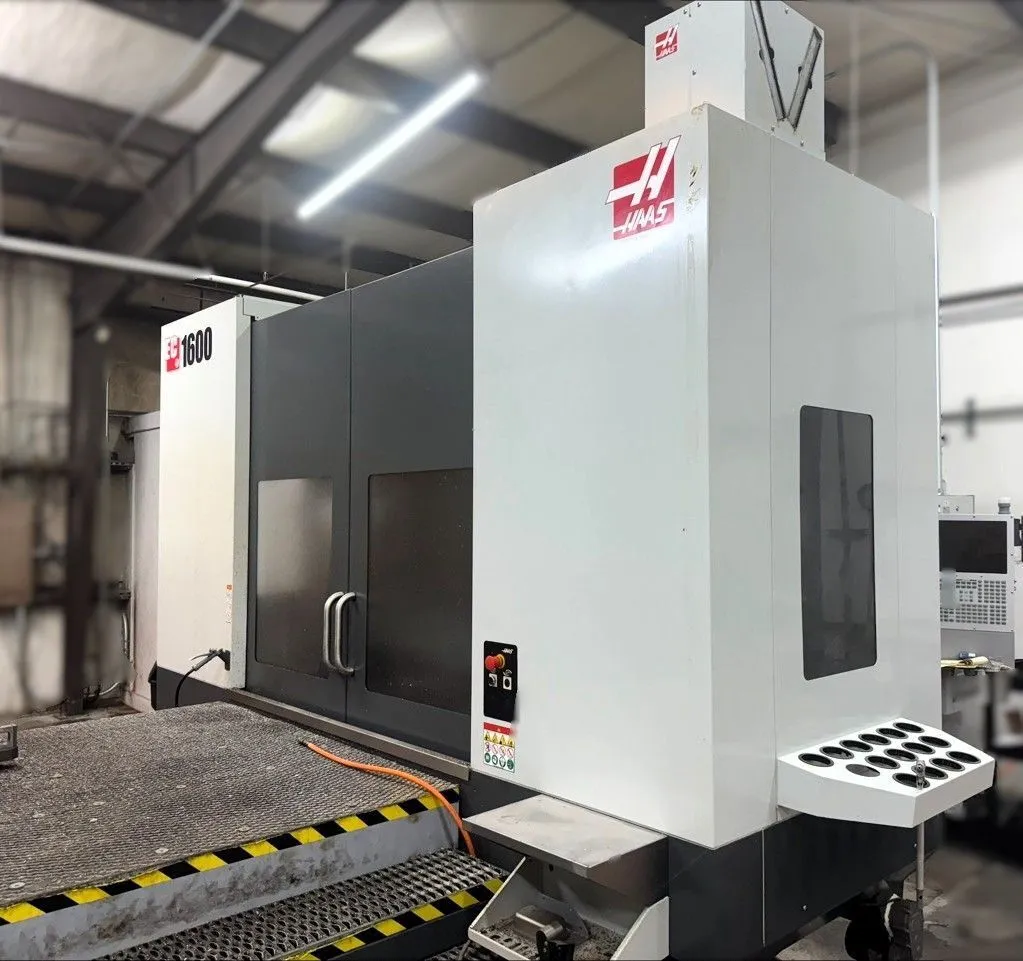

HAAS EC-1600 Horizontal Machining Center, New in 2021.
Full 4th Axis.
Low Hours.
1,000 PSI TSC.
WIPS
| X | 64" | 1,625.6 mm |
| Y | 50" | 1,270 mm |
| Z | 32" | 812.8 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 50 | 50 |
| Taper | CAT 50 | CAT 50 |
| Pallet-W | 36" | 914.4 mm |
| Control | CNC (HAAS CNC) | CNC (HAAS CNC) |
| Dimensions | 192" x 144" x 136" | 192" x 144" x 136" |
| Weight | 30,000 lbs | 30,000 lbs |
General Specifications:
X-Axis Travel: 64″
Y-Axis Travel: 50″
Z-Axis Travel: 32″
Table Size: 64″ x 36″
Platter Diameter: 30″
Max Table Load: 10,000 lbs
Spindle Taper: CAT 50
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
ATC: 50+1
Haas CNC Control
Full 4th Axis
WIPS
1,000 PSI TSC
Thru Tool Air Blast
Aux Coolant Filter System
Automatic Coolant Refill
Dynamic Work Offsets & TCPC
Chip Trap Filter Kit
Oil Skimmer
All Available Manuals
