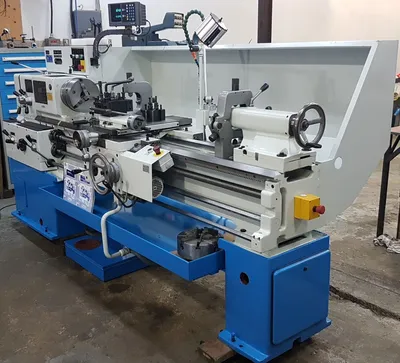

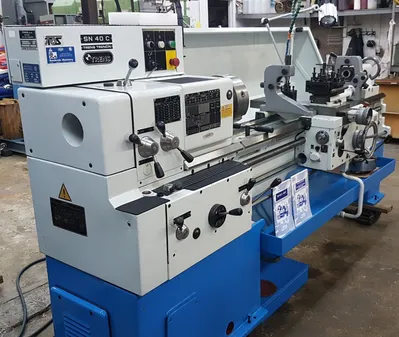

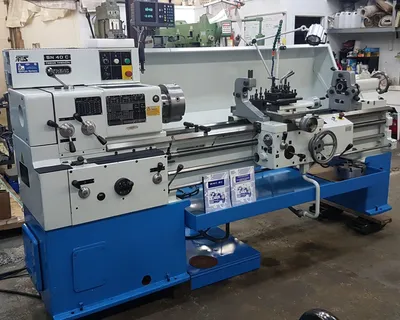

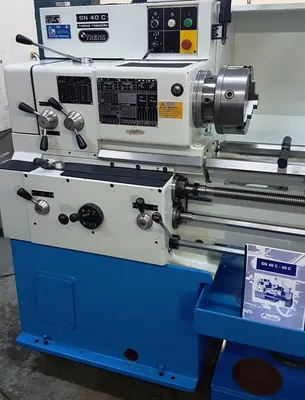

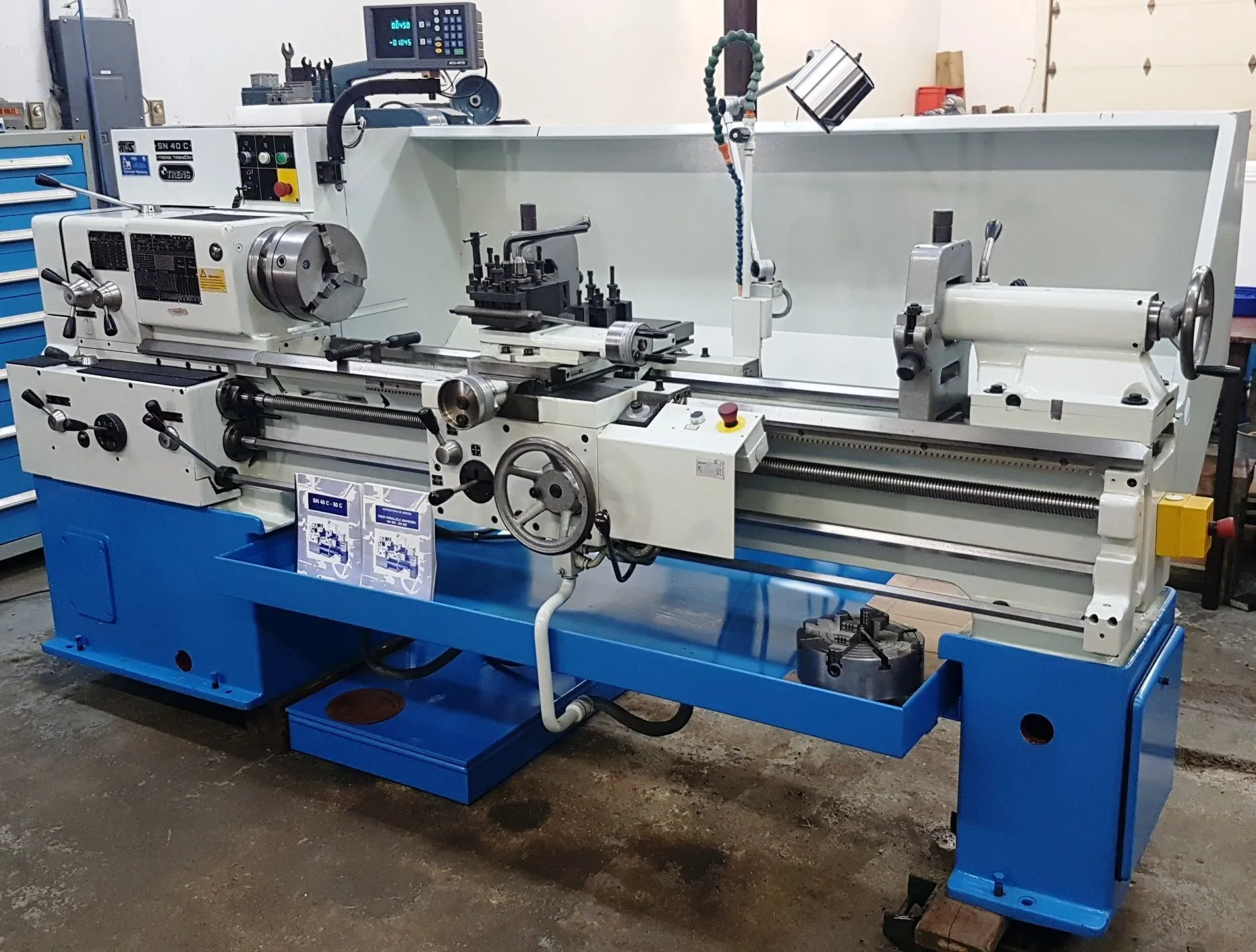

TOS SN 40C Lathe in “ EXCEPTIONNAL CONDITION” like new
General specifications:
Swing over bed: 400 mm (16 inches)
Swing over cross slide: ~220 mm (8-3/4 inches)
Swing in gap: ~600 mm (24 inches)
Distance between centers: 1500 mm
Spindle nose: D1-6 Camlock
Spindle bore: ~50-52 mm (2.0-2.2 inches) to verify
Spindle : 5.5 kW (7.5 HP)
Performance specifications
Spindle speeds: 22.4 - 2000 rpm
Tailstock: #5 Morse Taper and 70 mm quill travel
Cross-slide travel: 300 mm
Top slide travel: 140 mm
Leadscrew: 40 x 6 mm (longitudinal) and 20 x 4 mm (cross)

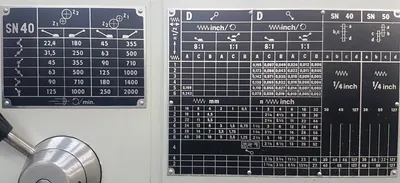

Number of feed rates: 38
Inch Threading (33): 1 to 80
Metric Threading (29): 0.5 to 40
Other features
Rapid traverse: Carriage and Cross slide

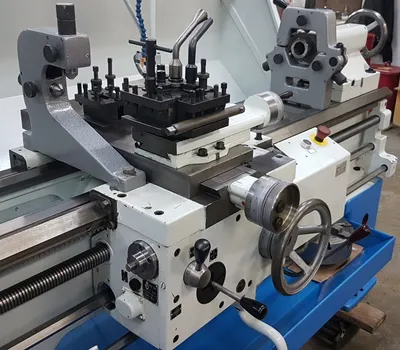

Quick-change tool post
3 jaw and 4 jaw chucks,
Steady rest
Follow rest
Bronze Nuts for Longer Wearing Life
Coolant System

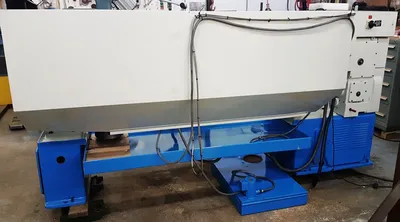

Rear Splash Guard
Central Lubrication
Halogen Light
Technical Manuals
If you have questions or for the price the ideal is to leave me your name and company name. My name is Yannick Paradis8193760529and my company is Omicron Machinery
Thanks
Have a nice day
| Swing | 15.75" | 400.05 mm |
| Centers | 59.05" | 1,499.9 mm |
| Spindle Bore | 2.03" | 51.562 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 0 RPM | 0 RPM |
| Swing Over Cross Slide | 8.66" | 219.96 mm |
