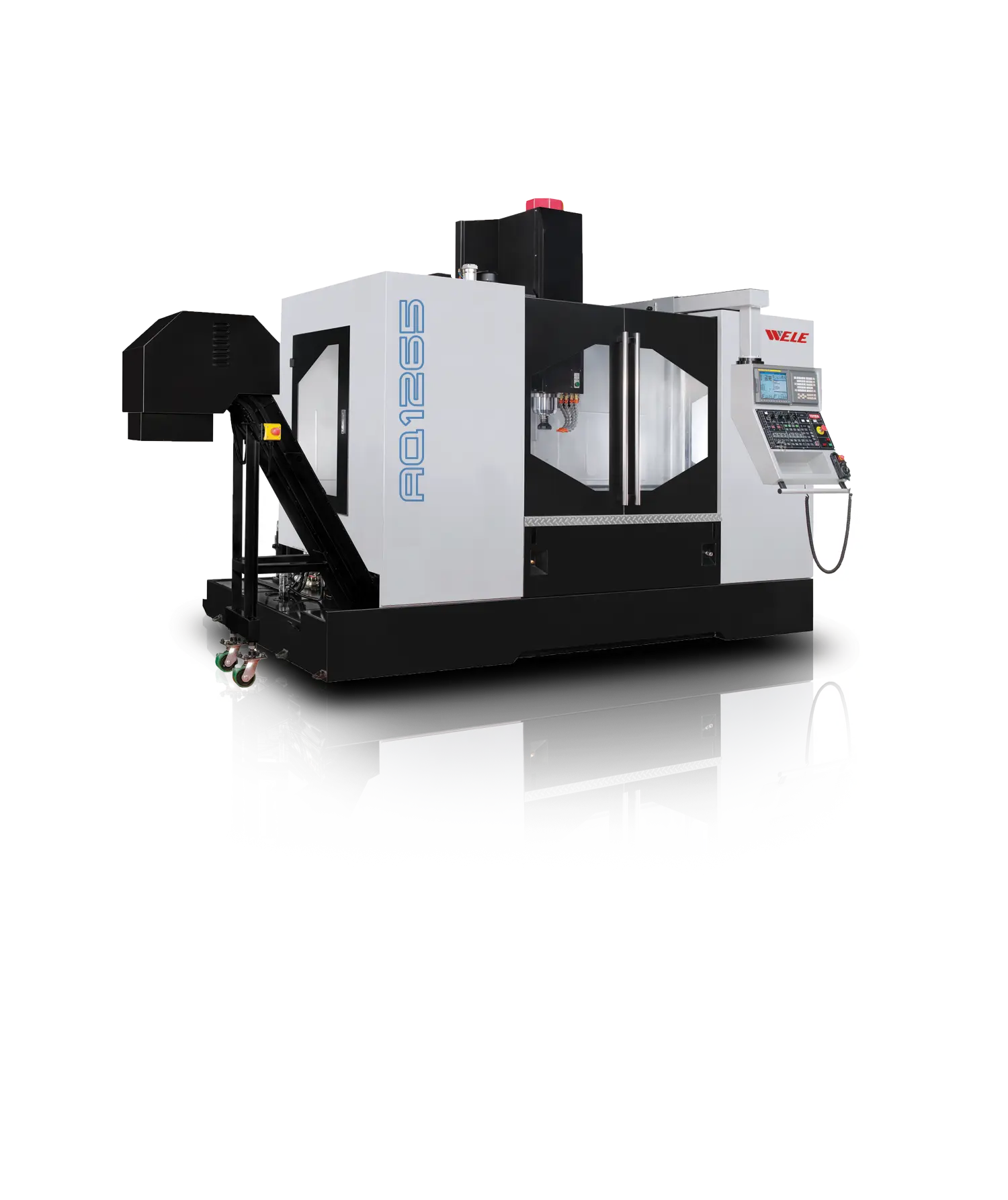

Machine Features Overview
FANUC OiMF PLUS CNC Machine Control
High Speed – 30 HP - 15,000RPM Integral Motor
Spindle – Big Plus CAT40 Spindle Taper
(32) Thirty-Two Pocket Standard Automatic Tool
Changer. (40) Tools Optional Upgrade Available
Precision Hand Scraped Machine Metal to Metal
Contact Points for Long Term Accuracy, Vibration
Dampening and Extended Machine Life
Built in WELE iSmartTune Controller Package with
Tool Life Monitoring and ATC Recovery Suite
Standard FANUC Package Includes 200 Block Look
Ahead Function and 2MB Memory Standard
Embedded Machine Operator and Maintenance
Manuals Resident on Controller
Dual Chip Auger with Lift Up Type Conveyor as
Standard Feature. Includes Coolant Wash Down
1000 PSI Through Spindle Coolant Preparation
| SPINDLE TAPER | CAT40 (BIG PLUS) | CAT40 (BIG PLUS) |
| X Travel | 47.2" | 1,198.9 mm |
| Y Travel | 25.6" | 650.24 mm |
| Z Travel | 24" | 609.6 mm |
| SPINDLE SPEED | 15,000 RPM | 15,000 RPM |
| SPINDLE HP | 30 hp | 22.4 kW |
Standard
CV (CAT Big Plus), BBT (BT Big Plus), 40 or 50 Taper
15,000 RPM Integral Motor Spindle
1000 PSI CTS Preperation
Standard Cat #40 32 Tool ATC
Fanuc Option Set with 2MB Memory and 200 Block Look Ahead
Built In WELE iSmartTune Control Suite with Tool Life Monitoring
30HP - 167NM Torque AQ High Speed Spindle
Precision Hand Scraped Machine Assembly
