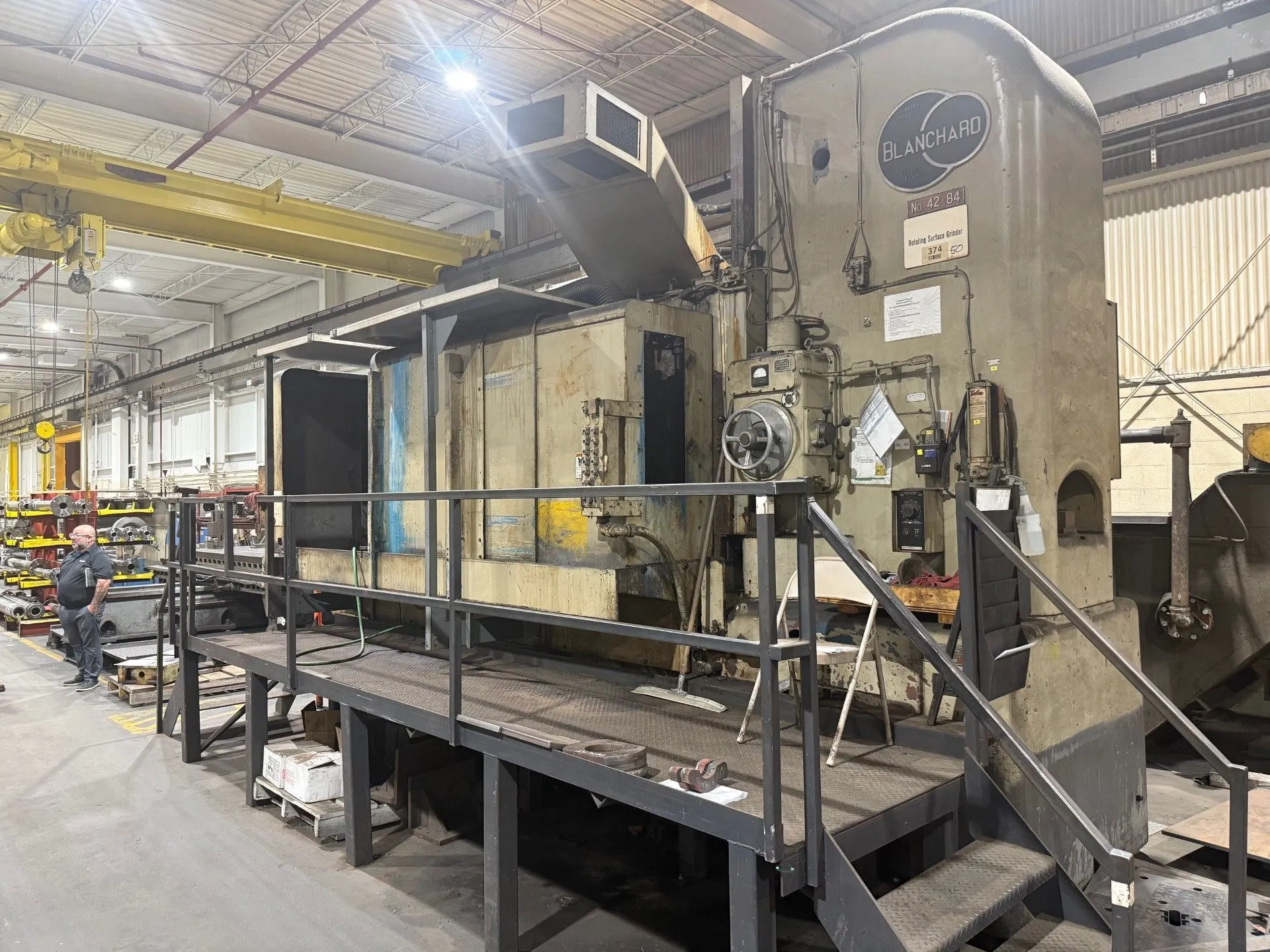

84" BLANCHARD “42-84” EXTRA-HIGH VERTICAL-SPINDLE ROTARY SURFACE GRINDER - 100 HP Spindle Motor - 42" Cortland Segmented Grinding Wheel - 96” Swing - 84" Electro-Magnetic Chuck w/Rectifier & Neutrofier - 40" Vertical Range - Hoffman Coolant System - AER Dust Collector
| Chuck Size | 84" | 2,133.6 mm |
| Horz/Vert | 'Vert' | 'Vert' |
| Power | 100 hp | 74.6 kW |
| Swing | 96" | 2,438.4 mm |
| Under Wheel | 40" | 1,016 mm |
| Grinding Wheel Dia. | 42" | 1,066.8 mm |
| Weight | 79000 LBS | 79000 LBS |
84” BLANCHARD EXTRA-HIGH VERTICAL-SPINDLE ROTARY
SURFACE GRINDER
Serial No 12986, Model 42-84
EQUIPPED WITH:
Vertical Spindle Design
84” Electro-Magnetic Chuck w/Neutrofier & Rectifier
42” Cortland Segmented Grinding Wheel
40" Extended Column Height
Rapid Rise & Lower to Wheel Head
Bijur Lube System
Hoffman Heavy-Duty Stand-Alone Coolant System
(Model 20591-3 & SCT-120, S/N 126710)
VMCS 3000 AER Stand Alone Dust Collector (3 HP)
CATALOG SPECIFICATIONS:
Chuck Diameter 84”
Swing Inside Coolant Guards 96”
Vertical Range, Extended 40”
Table Load Weight Capacity, Maximum 22000 LBS
(4) Table Speeds, Range 3 to 11.9 RPM
Power Down Feed, Range .004 to .080 IPM
Spindle Motor Horsepower 100 HP
Head Elevation Motor Horsepower 7.5 HP
Table Rotation Motor Horsepower 5 HP
Table Traverse Motor Horsepower 7.5 HP
Overall Dimensions, L x W 20’9” x 9’5”
Overall Height 15'
Weight Approximately 79000 LBS
F.O.B. OUR WAREHOUSE
