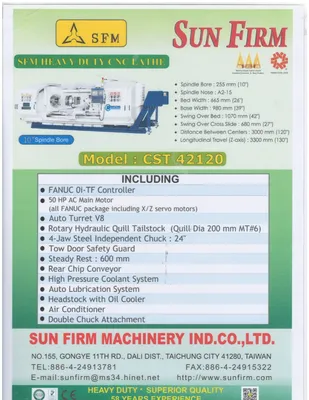

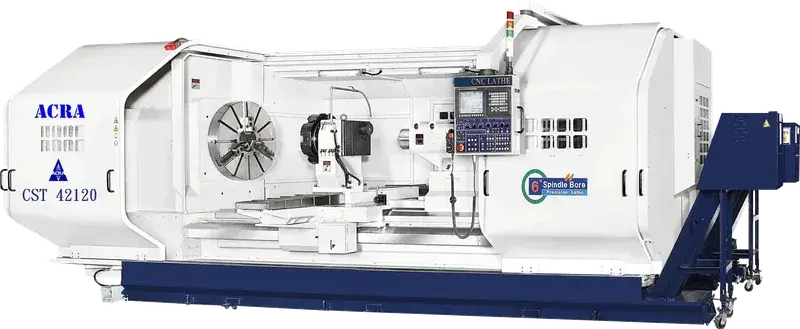

Unused 2016 year of mfg. CNC42" X 120" ACRA MODEL CST42120 Hollow Spindle, Flat Bed Lathe w/ FANUC OITF CONTROLLER
• One piece box type machine base made of Meehanite castings, all bedways are hardened and ground which provides high hardness, rigidity and durability.
• Integrate design of machine body and electrics, convenient for operation and maintenance.
• Large Spindle Bore supported by 3-point precision bearing which is suitable in accuracy and heavy cuttings. 9”,10”,12”, 14”,16”,21” is an option.
• Spindle speed is controlled automatically by hydraulic system, 4 stages variable speed changing will ensure full horsepower output even under low spindle RPM.
• Special Coolant System for headstock will reduce the temperature of spindle.
• New Design Tailstock will make the tailstock slide more smoothly and eliminate the wearing as well as provide security in operating. This innovation includes a security devise to ensure operator safe even under a wrong operating.
• C-Axis (Live Tooling) is able to make spindle high precision index position, fitted with power tooling turret, will complete with “turning” and “milling capacities”.
Fanuc Series Oi-TF Controller features:
• Arbitrary Speed Threading & Thread Repair.
• Threading Retract.
• Balanced Cut.
• Dual-Path Synchronization.
• Tool-Nose Radius Compensation.
• Multiple Repetitive Cycles.
• Canned Cycles for Drilling.
• High-Speed Rigid Tapping.
• Standard, Multi-Lead & Variable Lead Threading Cycles.
• Polar Coordinate Interpolation for C-axis / Y-axis / Live Tools with Cutter Radius Compensation.
• G54-G59 Plus 48 Additional Workpiece Coordinate Offsets.
• Lathe G-code systems A/B/C.
• Chamfering / Corner R.
• Direct Drawing Dimension Programming.
• Programmable Data Input.
• Threading Cycle.
• Polar Coordinate Command.
• 400 Tool Off sets Pairs.
• Tool Life Management.
• Tool Length Measurement.
• Scaling.
• Helical Interpolation.
• Mirror image for Double Turret.
• Polygon Turning.
• High-Speed Skip for Probing.

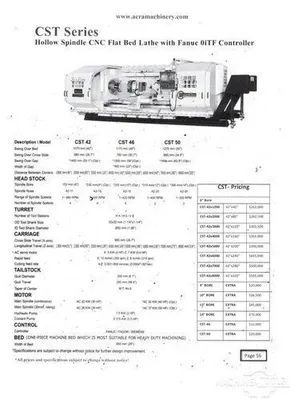

MODEL / ITEM CST 42
Capacity
Swing over bed 1070 mm (42")
Swing over cross slide 680 mm (27")
Swing over gap 1400 mm (55")
Width of gap 560 mm (22")
Distance between center 3000 mm , (118")
Headstock
Spindle nose A2-11
Spindle bore 255 mm (10")
Range of spindle speed 1-680 rpm
No. of spindle speeds 4
Carriage
Cross slide travel (X-axis) 680 mm (26")
Longitudinal travel (Z-axis) 3300 mm (130")
AC servo motor X : 3 KW (4 HP) Z : 7 KW (9.4 HP)
Rapid feed X : 10 m/min (393 ipm) Z : 8 m/min (315 ipm)
Cutting feed rate X / Z : 0.001-500 mm/rev (0.0004"-20"/rev)
Turret
Tool station (Random) available V8
Size of external turning 32x32 mm (1-1/4"x1-1/4")
Boring bar dia. Ø 50 mm (2")
Tailstock
Quill dia Ø 155 mm (6")
Quill stroke 250 mm (10")
Taper of center MT NO.6
Motor
Main spindle (continuous) AC 22 KW (30 HP)
Main spindle (30 min. rating) AC 26 KW (35 HP)
Hydraulic pump 1.5 KW (2 HP)
Coolant pump 0.375 KW (0.5 HP)
Bed
Width of bed 665 mm (26")
Control
CNC control unit available Fanuc 0i-TF

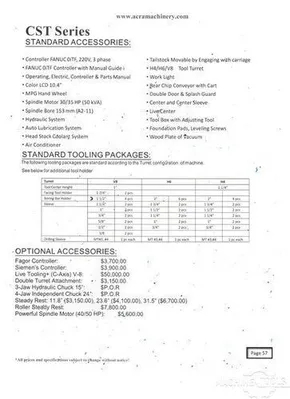

Standard Accessories
Equipped With
- Fanuc 0i-TF CNC Control
- Auto Turret V8
- 50HP AC Motor with all FANUC Package
- Rear Chip conveyor
- High Pressure Coolant System
- Air Conditioner for electrical cabinet
- Steady Rest 600mm
- Auto Lube System
- Rotary Hydraulic Quill Tailstock MT#6
- 24" 4 Jaw Manual Chuck w/10" Hole Thru

Optional Accessories
Double Turret
H4 Tool Turret
H6 Tool Turret
Self-Centering Steady Rest
Big Spindle Bore
3-Jaw Hydraulic Chuck
3-Jaw Air Chuck
Double Chuck
C-AXIS (Live Tooling)
4-Jaw Independent Chuck
4-Jaw Face Chuck
Boring Attachment
Chip Conveyor

Fagor Control
Siemens Control
H4 Special Turret
Roller Steady Rest
