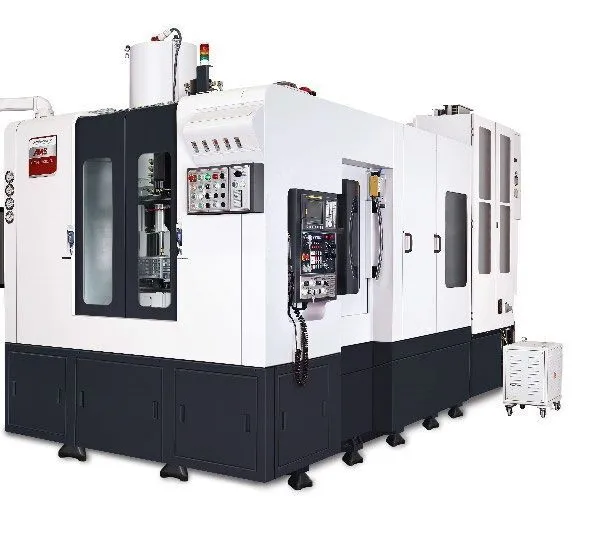

NEW JTEKT TOYODA CMH500XL
Overview
The CMH Series Fixed Table Horizontal Machining Center Series is designed to be able to handle long part applications. With a stationary table long workpieces can be supported for long tube machining and end work applications that would typically require a much larger machining center or turning operation.
Machine Standard Package
8,000 RPM – 20HP Direct Drive Spindle
Big Plus Spindle Modification
FANUC OiMF Control
40 Tool Magazine w/ Bidirectional Index
Fixed Work Table
Full Machine Enclosure with Mist Collection
Rear Discharge 735PSI High Pressure CTS Coolant Tank
Tool Life Management
Drum Filtration Upgrade for Coolant System
Hydraulic Clamping Preparation
Spindle Chiller
Specs
Machine Envelope and Travels
Table Cross Travel (X Axis) 31.5” (800 mm)
Spindle Head Vertical Travel (Y Axis) 21.6” (550 mm)
Work Table Travel (Z Axis) 21.6” (550 mm)
Spindle Nose to Top of Pallet 4.8" (120 mm)
Spindle Face to Pallet Center 5.9” (150 mm)
Rapid Traverses (X, Y and Z Axes) 1575 ipm (40 M / min)
Machine Pallet
Pallet Size 31.5" x 19.7" (800 x 500 mm)
Maximum Work Load on the Pallet 770 lbs. (350 kg)
Pallet Height from Floor 41.7" (1060 mm)
Spindle Specifications
Spindle Speed 50 ~ 8,000 RPM
Spindle Ceramic Bearing Inside Diameter 70mm
Spindle Drive Motor 20 HP
Tooling and Magazine
Spindle Nose Taper CAT 40
Type of Stored Tool CAT #40 V-Flange / Pullstud: MAS Type I P40T
Standard Tool Storage Capacity Forty (40)
Maximum Tool Size (Diameter x Length) (Diameter x Length) ø3.15" x 13.78" (ø80 x 350 mm)
Maximum Tool Weight 17.6 lbs. (8 kg)
Tool Selection Random
