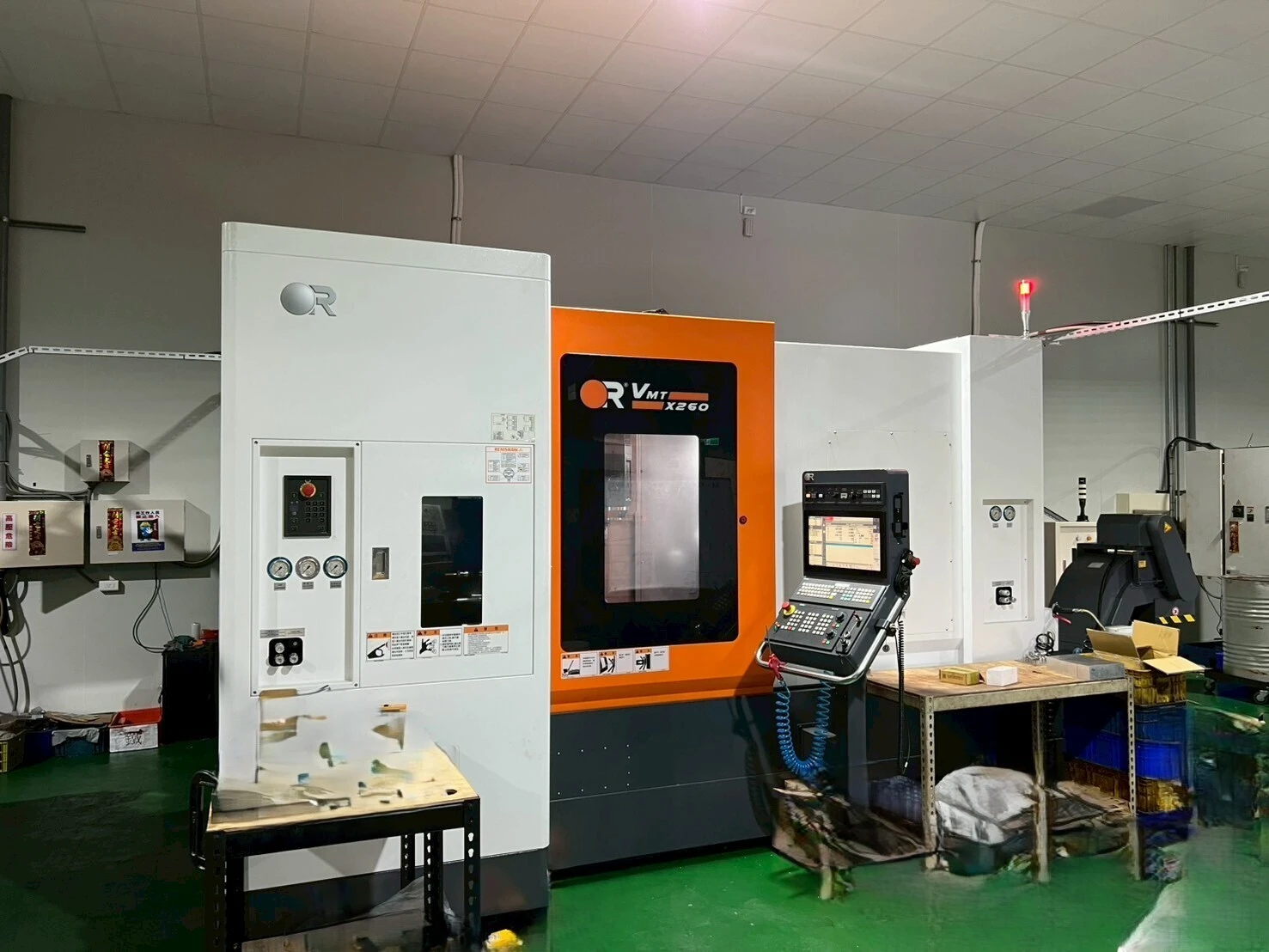

USED 2024 VICTOR TAICHUNG VMT-X260
Overview
Description
Experience precision with the 2024 Victor Taichung VMT-X260 CNC Lathe. Featuring Y-Axis, dual 10" chucks, and Siemens 5-axis control, it handles complex tasks effortlessly. Maximize efficiency with a 12,000 RPM milling spindle and 29.5 HP power.
Specifications
| Swing Over Bed | 26" | 660.4 mm |
|---|---|---|
| Turning Diameter | 19.7" | 500.38 mm |
| Turning Length | 42.3" | 1,074.4 mm |
| Distance Between Spindles | 54.2" | 1,376.7 mm |
| Chuck Size 1 | 10" | 254 mm |
| Spindle Nose 1 | A2-8 | A2-8 |
| Spindle Bore Diameter 1 | 2.95" | 74.93 mm |
| Bar Capacity 1 | 2.59" | 65.786 mm |
| Spindle Speeds 1 | 3,500 RPM | 3,500 RPM |
| Spindle Horsepower 1 | 29.5 hp | 22 kW |
| Chuck Size 2 | 10" | 254 mm |
| Spindle Nose 2 | A2-8 | A2-8 |
| Spindle Bore Diameter 2 | 2.95" | 74.93 mm |
| Bar Capacity 2 | 2.59" | 65.786 mm |
| Spindle Speeds 2 | 4,200 RPM | 4,200 RPM |
| Spindle Horsepower 2 | 29.5 hp | 22 kW |
| B - Axis Head Travel | -30 to +210 Degrees | -30 to +210 Degrees |
| B - Axis Head Indexing | 0.00 | 0.00 |
| B - Axis Milling Spindle Taper | HSK-63 | HSK-63 |
| B - Axis Milling Spindle Speed | 12,000 RPM | 12,000 RPM |
| B - Axis Milling Spindle Horse Power | 29.5 hp | 22 kW |
| ATC For Milling Spindle | 40 | 40 |
| Tool Diameter | 3.54" / 4.92" | 3.54" / 4.92" |
| Tool Length | 11.8" | 299.72 mm |
| Tool Weight | 15.4 lb | 7 kg |
| X1 - Axis Travel | 25" | 635 mm |
| Z1 - Axis Travel | 46" | 1,168.4 mm |
| Y1 - Axis Travel | 10.2" | 259.08 mm |
| W - Axis Travel Sub Spindle | 42.5" | 1,079.5 mm |
| Rapid Traverse Rate - X1 | 1417 ipm | |
| Rapid Traverse Rate - Z1 | 1417 ipm | |
| Rapid Traverse Rate - Y1 | 1417 ipm | |
| Machine Weight | 27,558 lb | 12,500.1 kg |
| Dimensions | 214" x 119" x 115" - Floor space w/ conveyor | 214" x 119" x 115" - Floor space w/ conveyor |
Equipped With
SIEMENS ONE 5 AXIS SIMULTANEOUS CONTROL
COOLANT THRU MILL HEAD
RPM60 PART SETTER
CHIP CONVEYOR
