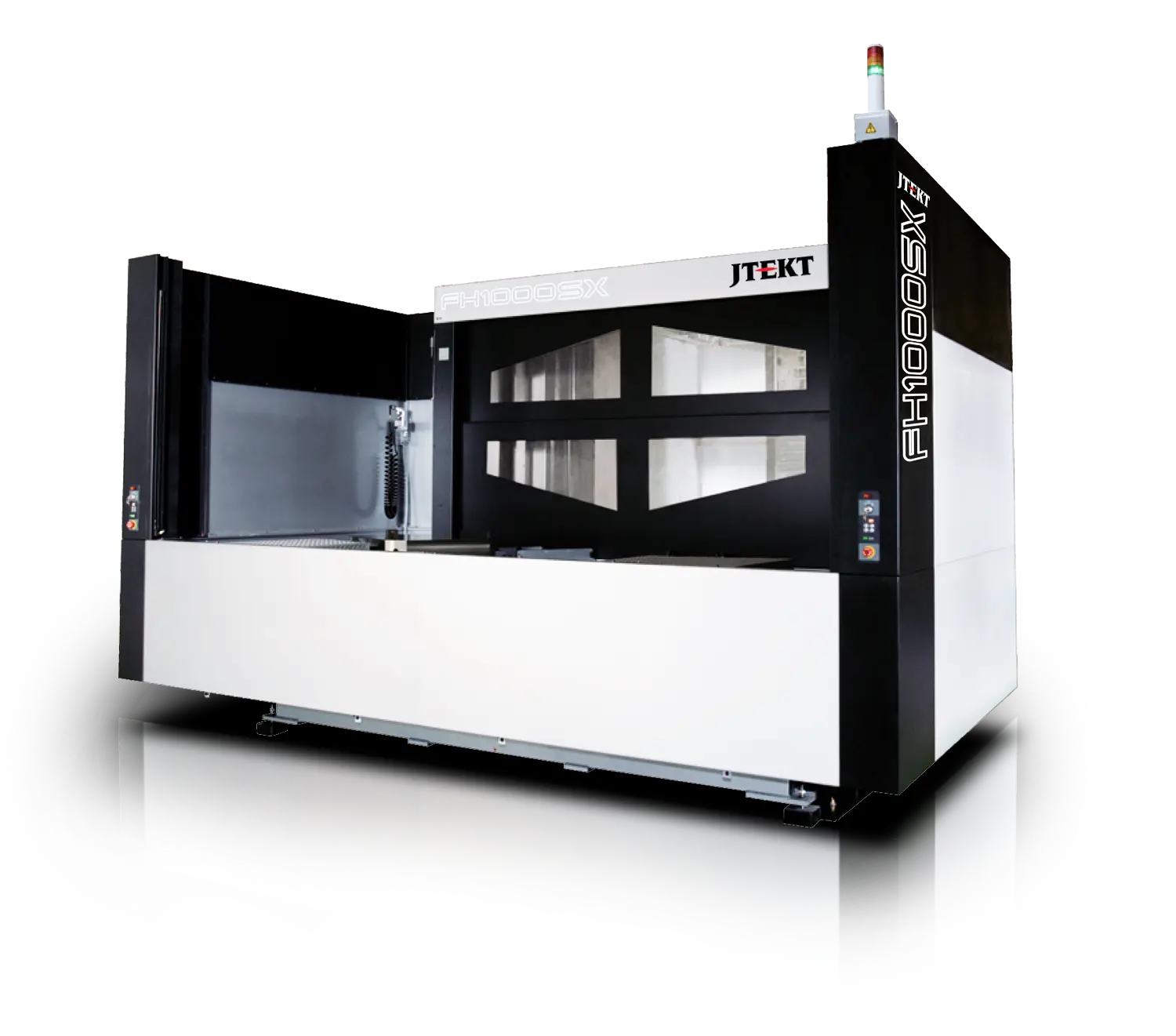

NEW JTEKT FH1000SX

Quick and Simple Navigation featuring Easy to Learn, User-Friendly Controls
Ability to Easily Toggle Between the TOYOPUC TOUCH
Overlay and Native Fanuc Operation Screens
Built in Reporting that that Monitors Energy Usage, Productivity, Tool Life and more
A Navigation Bar Present On All Screens; Allowing Users To Move Throughout Multiple Sections
Automated Maintenance Reminders With Detailed Instructions On Performing Inspections
The Ability for Maintenance Staff To View The HMI On A Tablet Or Mobile Device Using TeamViewer
A “Diagnostic Data Collection” Button To Backup Data Such As Ladder Logic, Parameter and Offsets
A Simplified Repair Process with Step-Through Procedure for Common Issues such as ATC Recovery
Ability to Record/Send Video/Upload Tool Images With a USB To JTEKT Operator
On Board Storage of all Machine Maintenance and Operation and Tooling Manuals
Lock Out Control Features Based on Defined Criteria for
Operators/Programmers/Maintenance

Standard
8,000 RPM High Torque Integral Spindle 74HP 1202NM Torque
Big Plus modification for All Series Spindles
High Pressure Coolant-Thru-Spindle (Up To 1,000 PSI) 8.5 Gpm
Pump with Relief Valve Calibrated for 500 ~ 1,000 PSI
360,000 Degree NC Positioning B Axis Table
Overhead Coolant Shower
Hand Held Splash Gun at APC Load Station
FANUC 31iMB with Toyopuc Touch 19" Touch Screen HMI Display
Upgrade Control Features - 8MB Memory - 48 Work Offsets - 200 Tool Offsets
High Speed Control Features - 1000 Block Look Ahead Function with High Speed Processor
OP Supporter Package - Tool Life Management - Adaptive Control
