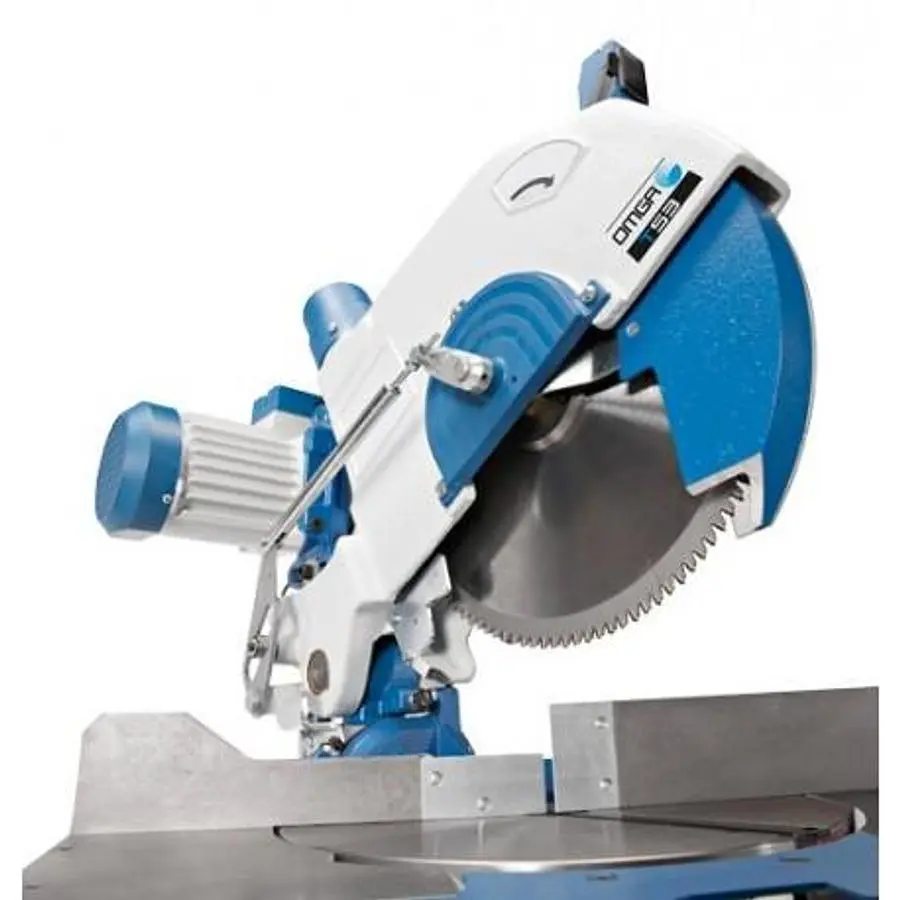

NEW OMGA T 53370

14" Compound Mitre Chop Saw 4HP Motor Width Cutting Capacity 6 11/16" Thickness Capacity 4 5/16"
Heavy duty and flexible are the two main features of this Compound Precision Mitre Chop Saw. Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees. A manual locking device for all the intermediate angles provides a great flexibility to this unit. The unit is also equipped with a 45 degree positive stop for precision beveling. The belt driven transmission and a powerful 4 HP induction motor make the T 53 370 the ideal tool for heavy duty industrial usage. This machine is designed to be fitted with a wide variety of optional accessories to make it perfect for any application. This precision saw is a multi-purpose machine suitable for use in general carpentry, for cutting crown moulding, picture frames, furniture components and any application requiring precision cutting.

Cross cut capacity 90 Deg.6 3/4"6 3/4"
Cross cut capacity 45 Deg.4 1/8"4 1/8"
Max. Depth of Cut4 5/16"4 5/16"
Max. Depth of cut 45 Deg.2"N /A
Motor power43
Max. Beveled Cross Cut6 1/4"N /A
Saw bore1"1"
Saw blade diameter14"14"
Arbor Speed RPM32003200
Dust Chute Diameter3 1/8"3 1/8"Table Size23 5/8" X 17 1/8"23 5/8" X 17 1/8"
Shipping Weight Lbs.255222
Crated Dimensions28" X 28" X 33"26" X 25" X 30"
