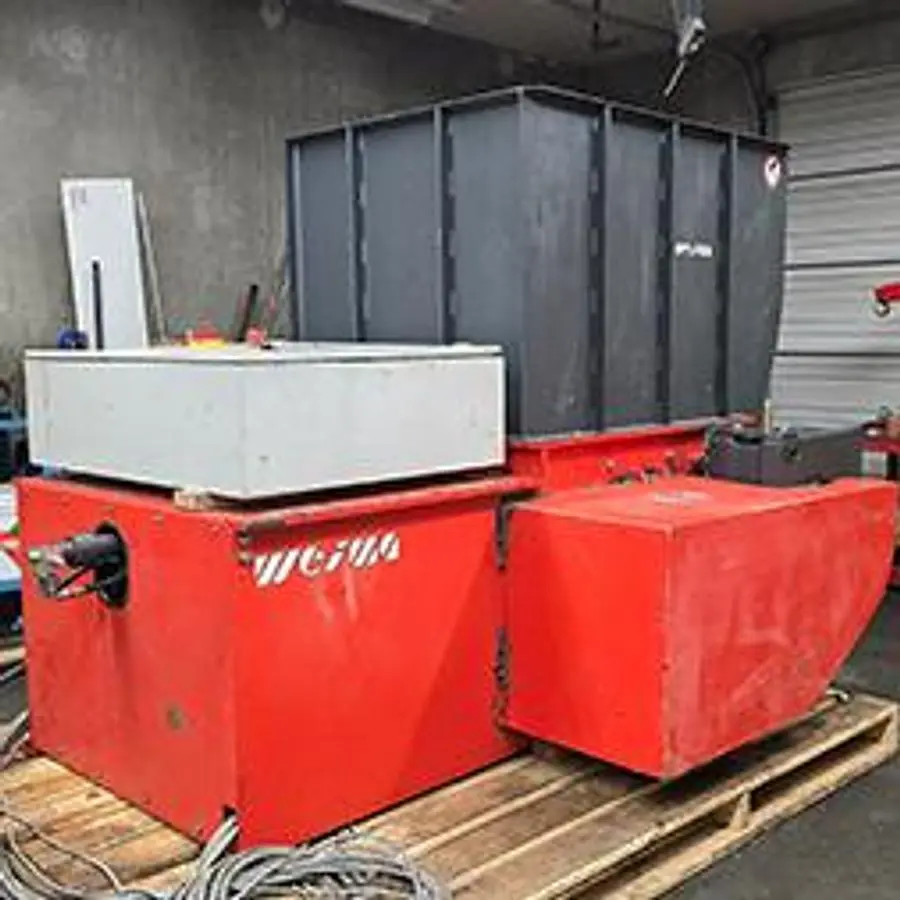

USED 2018 WEIMA WL 8

WEIMA WL 8 Wood Waste Shredder, Vertical Feed (35 HP), Rebuilt with 30 Day Warranty

Specifications
·        Hopper Opening: 39.4" x 49.2"
·         (1,000 mm x 1,250 mm)
·        Hopper Configuration: 3 straight sides with curved front wall
·        Machine Opening: 39.4" x 39.4"
·        (1000 x 1000 mm)
·        Hopper Volume: 1.47 yds³ (1.1 m³)

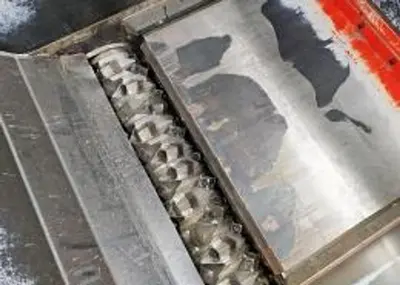

·        Rotor: "V-Rotor"
·        Rotor Diameter: 10" (252 mm)
·        Rotor Length: 39.4" (1000 mm)
·        Rotor Speed: 100 RPM +/-*
·        Type of Cutter: 4X indexable concave shape
·        Size of Cutter: 1.57" x 1.57" (40 x 40 mm)
·        # of Cutters: 54
·        Extraction Requirements: 1900 cfm,
·        8” (200 mm) diameter
·        Weight: App 4,630 lbs (2,100 kgs)
·        Power: 460 V / 60 Hz / 3 Phase
·        Screen: 20/25 mm
·        Output**: 1,000 – 1,250 lbs/hr (450-570 kg/hr)

INCLUDED with WL(K) Series (4-8):

·        Control Panel with Star Delta Starter and 16 ft. Cable Bundle
·        Allen Bradley PLC w/ Touch Screen HMI
·        Anti Vibration Feet
·        V-Rotor
·        Two (2) Rows of Rotor Knives
·        Reverse Counter
·        Fast Hydraulic Ram

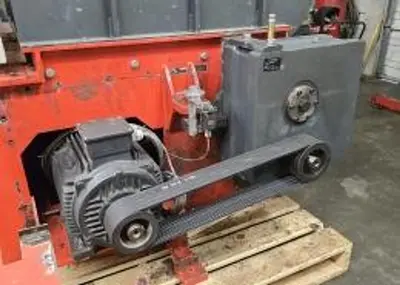

·        WEIMA Gearbox with Limit Switch
·        Log Spacer Hopper
·        1-Sided Bottom Serrated Ram


Machine History:
Condition: Reconditioned, in good running condition.
Year Mfg: 2018
Electrics: 460/3/60
Serial No.: 510-2677
Below lists key items replaced on machine:
-        Ram guides, belts, rotor knives, broaching knives, counter knives, rotor bearings and seals, main gear box, universal joint.
-        Machine will come with a 30 day warranty.
·        The rotor speed will be determined by the application and is fixed
·        Quoted output is an average and can be influenced by density, material size, screen size, feeding form, and other factors
